Description

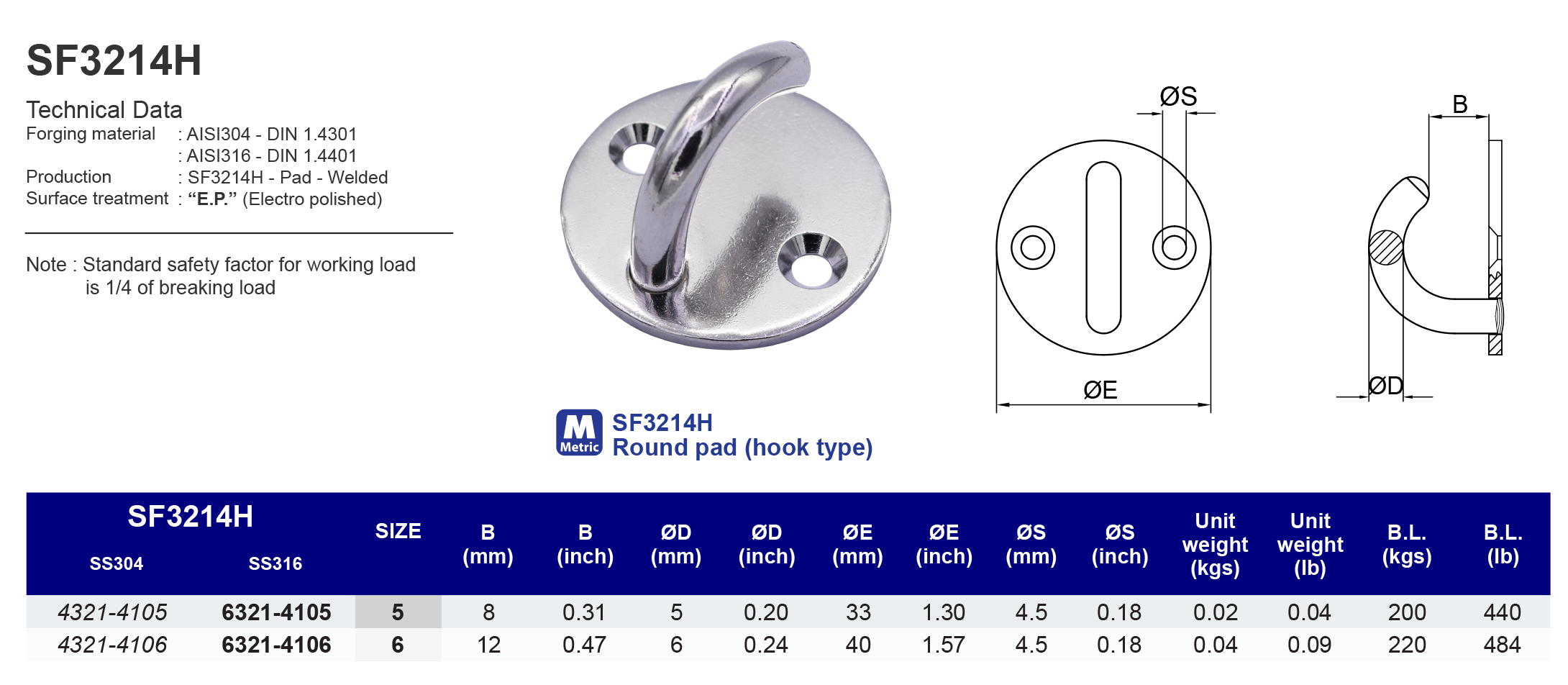

Technical Data:
Forging Material:
AISI304 - DIN 1.4301
Production:
SF3214H - Pad - Welded
Surface Treatment:“E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
SF3214H

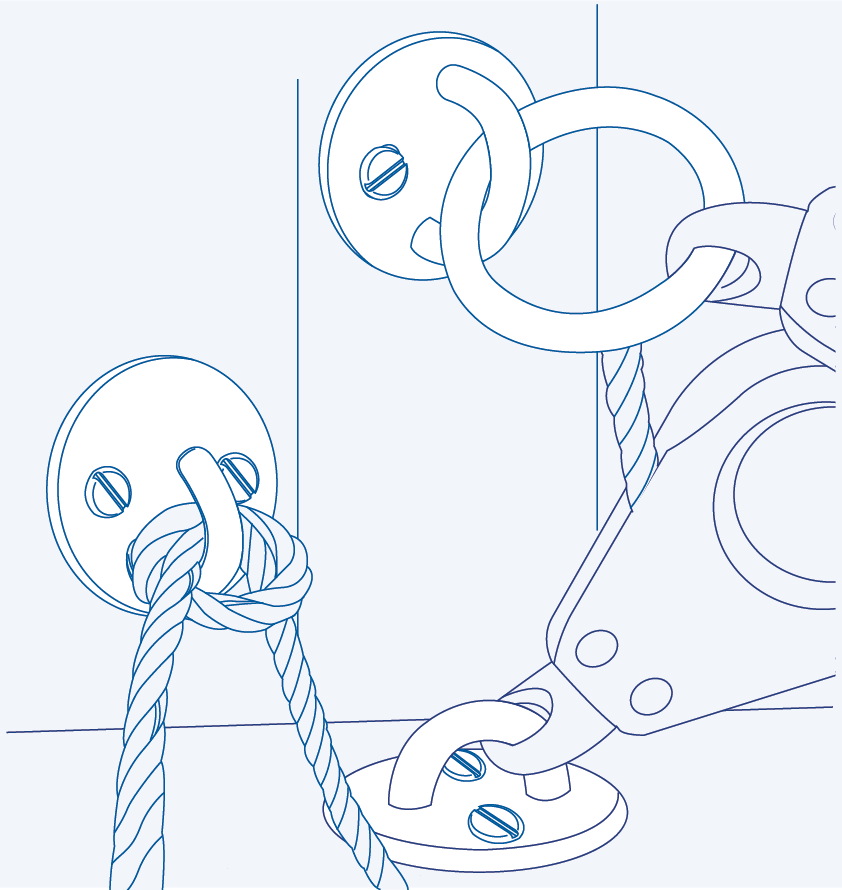

Round Pad - Hook Type
316 ss
| SS316 | Size | B (mm) | ØD (mm) | ØE (mm) | ØS (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63214105 | 5 | 8 | 5 | 33 | 4.5 | 0.02 | 200 |
| 63214106 | 6 | 6 | 12 | 40 | 4.5 | 0.04 | 220 |
| SS316 | Size | B (inch) | ØD (inch) | ØE (inch) | ØS (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63214105 | 3/16" | 0.31 | 0.20 | 1.30 | 0.18 | 0.04 | 440 |
| 63214106 | 1/4" | 0.24 | 0.47 | 1.57 | 0.18 | 0.09 | 484 |
