Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301
Production: SF3215 - Pad - Welded
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load
is 1/4 of breaking load DATA SHEET DOWNLOAD

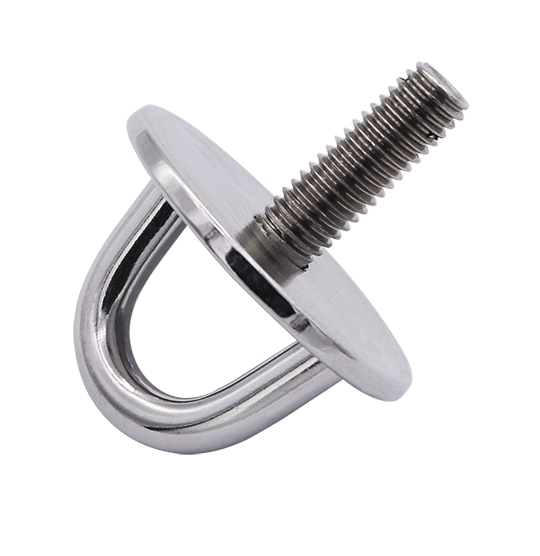

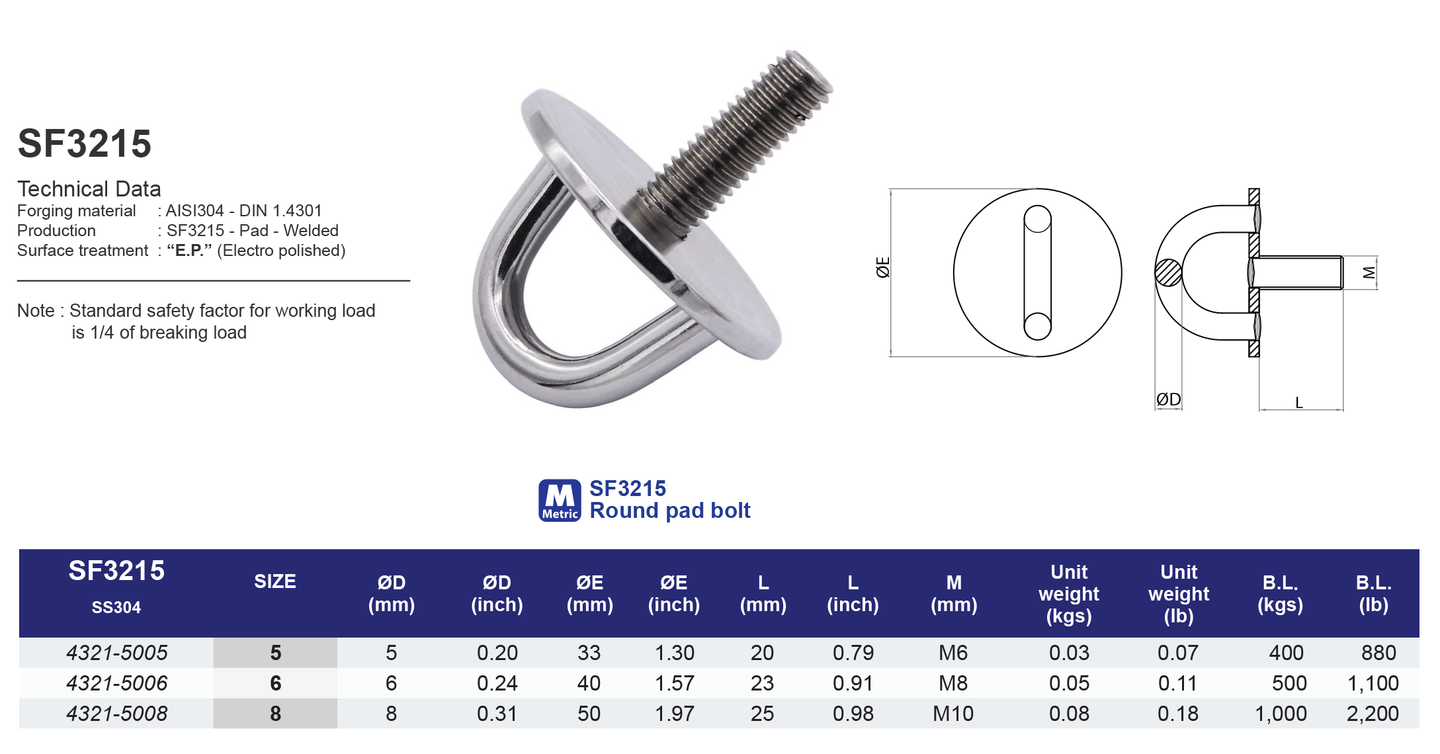

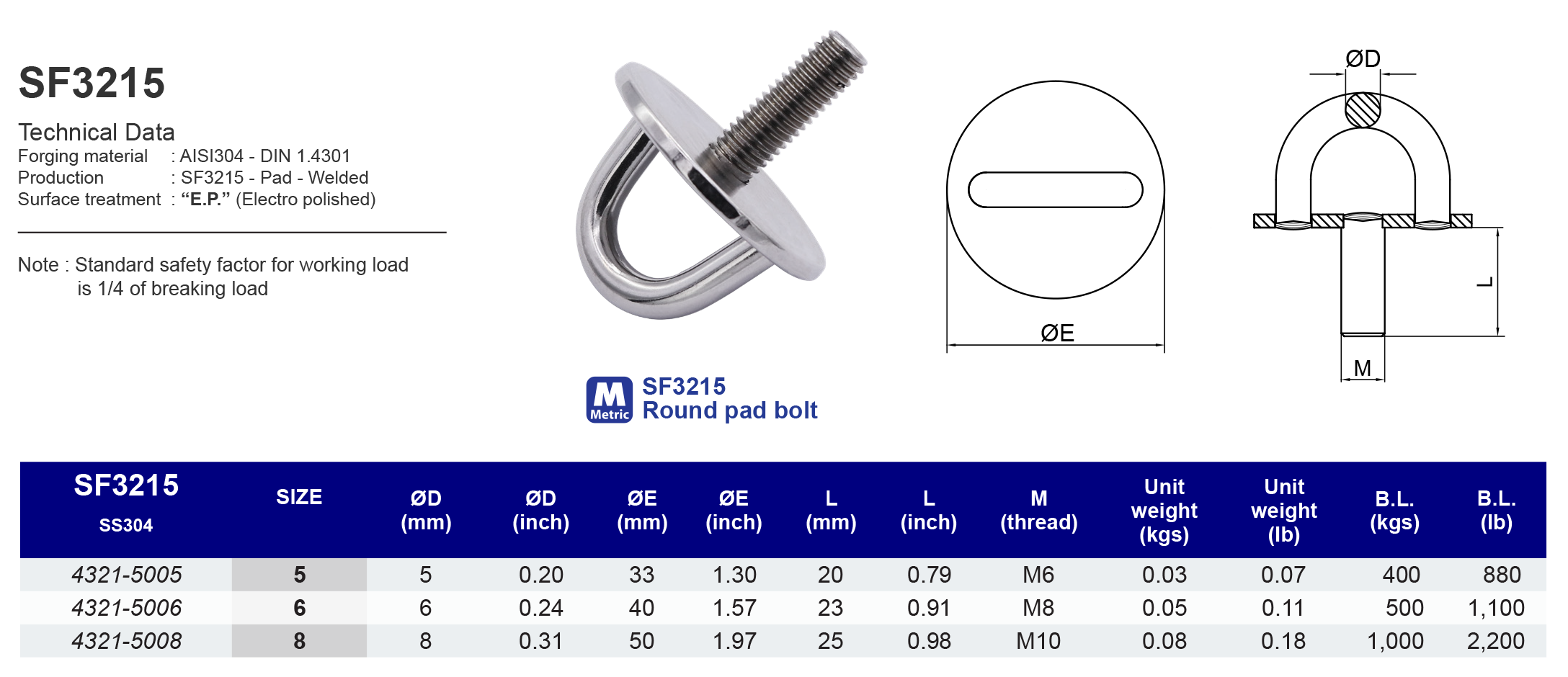

Model
SF3215
Roung pad bolt
304 ss
| SS304 | Size | ØD (mm) | ØE (mm) | L (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 43215005 | 5 | 5 | 33 | 20 | M6 | 0.03 | 400 |
| 43215006 | 6 | 6 | 40 | 23 | M8 | 0.05 | 500 |
| 43215008 | 8 | 8 | 50 | 25 | M10 | 0.08 | 1,000 |
| SS304 | Size | ØD (inch) | ØE (inch) | L (inch) | M (mm) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 43215005 | 3/16" | 0.20 | 1.30 | 0.79 | M6 | 0.07 | 880 |
| 43215006 | 1/4" | 0.24 | 1.57 | 0.91 | M8 | 0.11 | 1,100 |
| 43215008 | 5/16" | 0.31 | 1.97 | 0.98 | M10 | 0.18 | 2,200 |
