SF3216 Square Pad - 316

SKU: 63216005

Size (mm): 5mm
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Forging Material: AISI304 - DIN 1.4301                                                                                                                  AISI316 - DIN 1.4401
Production: SF3216 - Ring - Welded
Surface Treatment: “E.P.” (Electro polished)

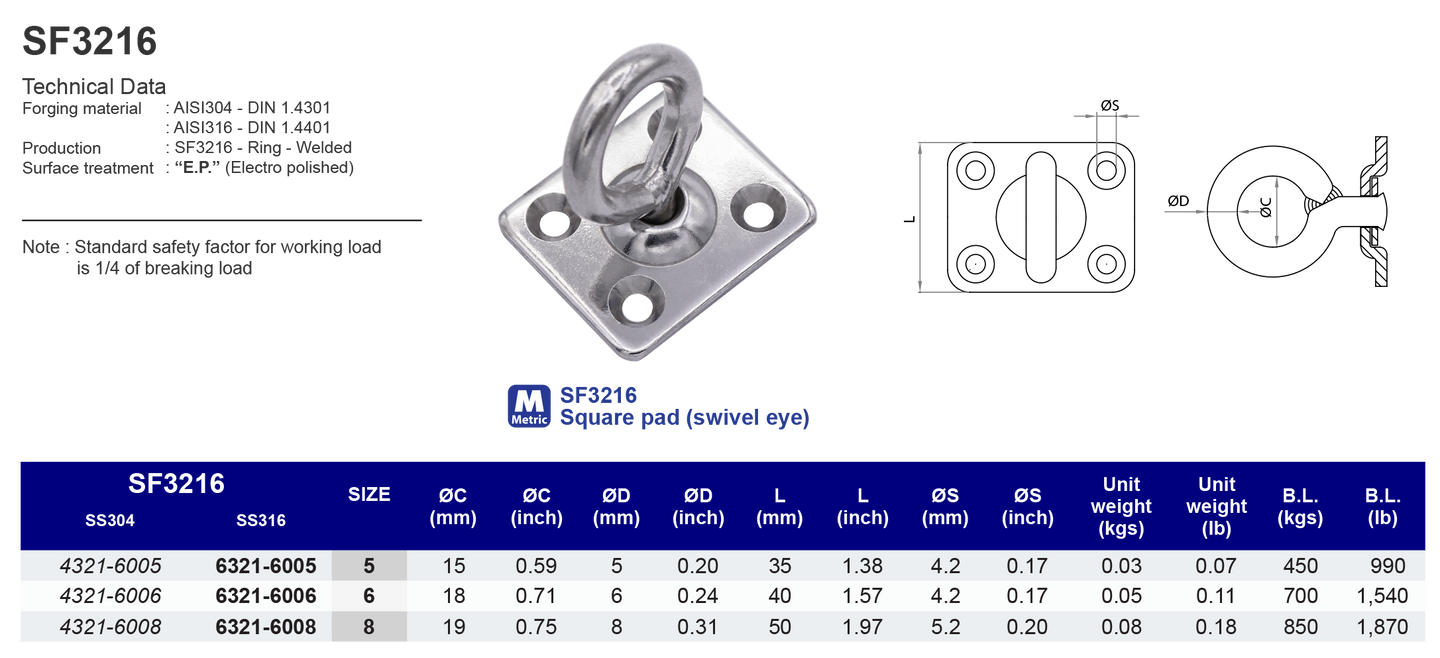

DATA SHEET DOWNLOAD

Model

SF3216

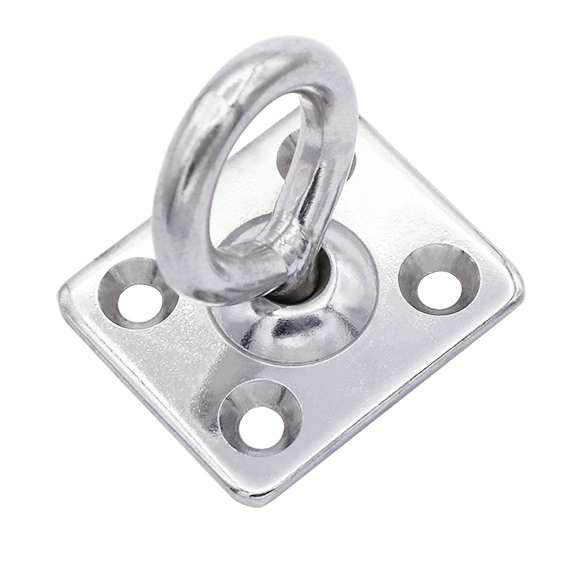

Square Pad
316 ss

SF3216drawingSF3216 image
SS316SizeØC (mm)ØD (mm)L (mm)ØS (mm)Unit weight (kgs)B.L. (kgs)
632160055155354.20.03450
632160066186404.20.05700
632160088198505.20.08850
SS316SizeØC (inch)ØD (inch)L (inch)ØS (inch)Unit weight (lb)B.L. (lb)
632160053/16"0.590.201.380.170.07990
632160061/4"0.710.241.570.170.111,540
632160085/16"0.750.311.970.200.181,870
