SF3216 Square Pad - 304

SKU: 43216005

Size (mm): 5mm
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Forging Material: AISI304 - DIN 1.4301 AISI316 - DIN 1.4401
Production: SF3216 - Ring - Welded
Surface Treatment: “E.P.” (Electro polished)

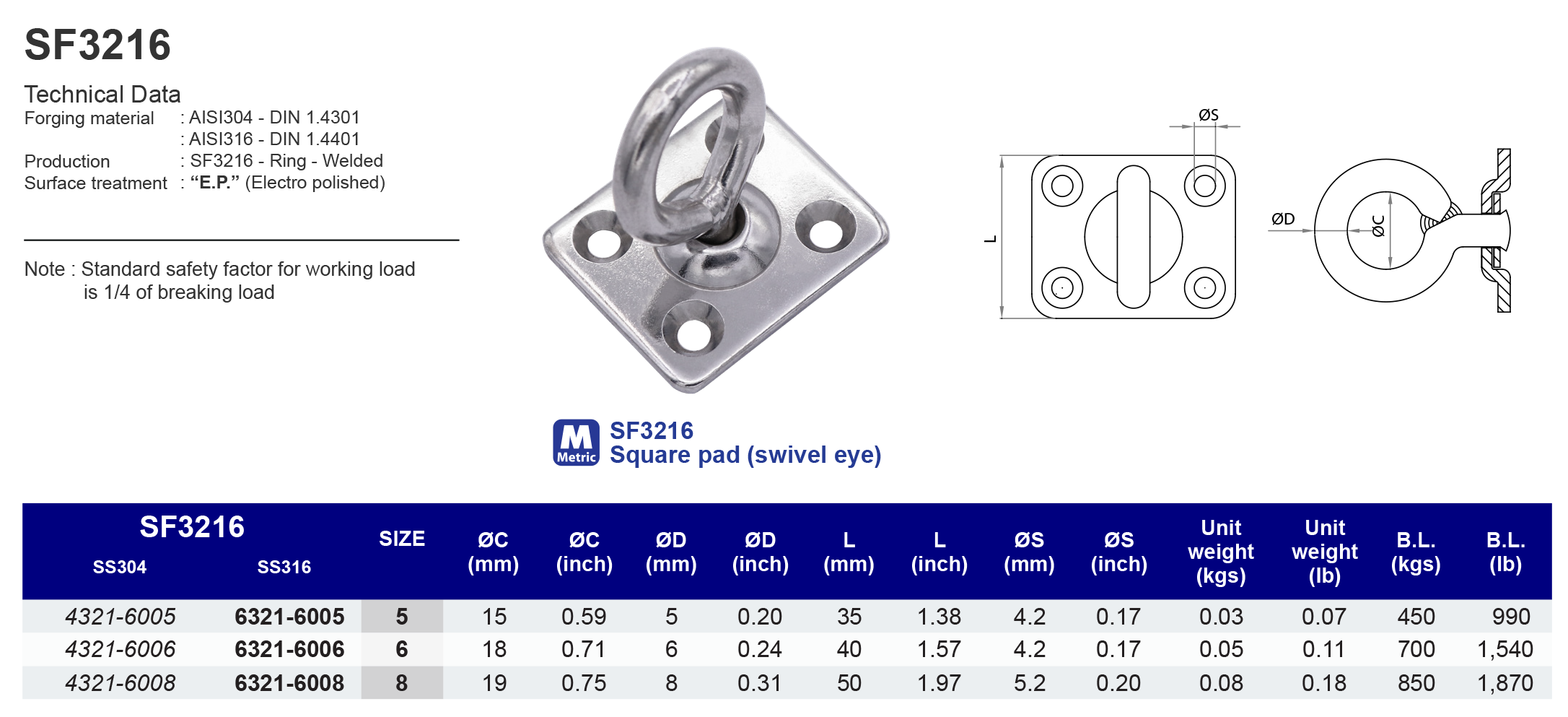

DATA SHEET DOWNLOAD

Model

SF3216

Square Pad
304 ss

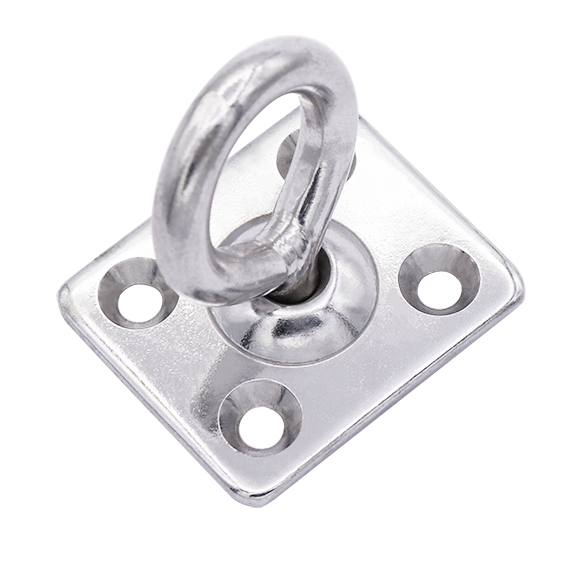

SF3216drawingSF3216 image
SS304SizeØC (mm)ØD (mm)L (mm)ØS (mm)Unit weight (kgs)B.L. (kgs)
432160055155354.20.03450
432160066186404.20.05700
432160088198505.20.08850
SS304SizeØC (inch)ØD (inch)L (inch)ØS (inch)Unit weight (lb)B.L. (lb)
432160053/16"0.590.201.380.170.07990
432160061/4"0.710.241.570.170.111,540
432160085/16"0.750.311.970.200.181,870
