Description
Technical Data:
Forging Material:
AISI304 - DIN 1.4301
Production:
SF32501 - Ring - Welded
Surface Treatment:
Electro polished / Passivated

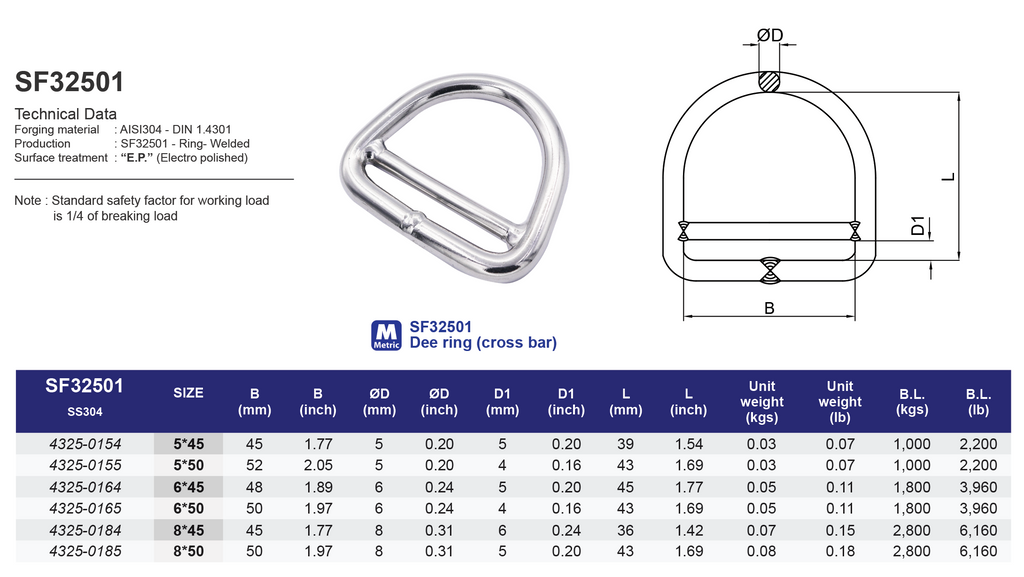

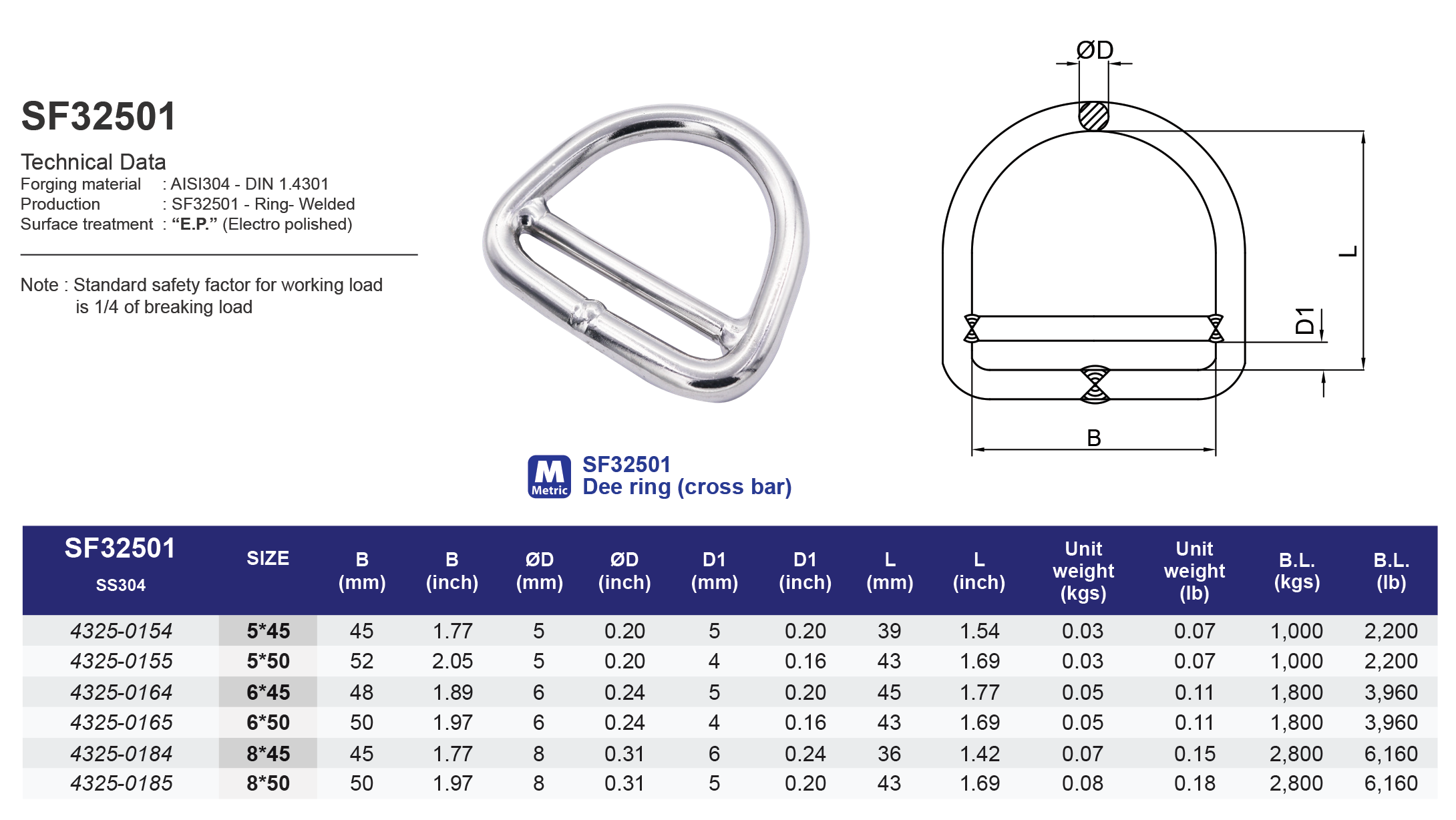

Model
SF32501
Dee Ring (cross bar)
304 ss
![Kinzi 304 Kinzi 304](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/304-ss.png)
![SF32501 drawing SF32501 drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/SF32501_DiagramV1.png)
![SF32501 image SF32501 image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/SF32501_ImageV1.png)
SS304 | Size | ØB(mm) | ØD(mm) | ØD1(mm) | L(mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|---|
43250154 | 5*45 | 45 | 5 | 4 | 39 | 0.03 | 1,000 |
43250155 | 5*50 | 52 | 5 | 4 | 43 | 0.03 | 1,000 |
43250164 | 6*45 | 48 | 6 | 5 | 45 | 0.05 | 1,800 |
43250165 | 6*50 | 50 | 6 | 5 | 43 | 0.05 | 1,800 |
43250184 | 8*45 | 45 | 8 | 6 | 36 | 0.07 | 2,800 |
43250185 | 8*50 | 50 | 8 | 6 | 43 | 0.08 | 2,800 |
SS304 | Size | ØB(inch) | ØD(inch) | ØD1(inch) | L(inch) | Unit weight (Ib) | B.L. (lb) |
---|---|---|---|---|---|---|---|
43250154 | 5*45 | 1.77 | 0.20 | 0.16 | 1.54 | 0.07 | 550 |
43250155 | 5*50 | 2.05 | 0.20 | 0.16 | 1.69 | 0.07 | 550 |
43250164 | 6*45 | 1.89 | 0.24 | 0.20 | 1.77 | 0.11 | 990 |
43250165 | 6*50 | 1.97 | 0.24 | 0.20 | 1.69 | 0.11 | 990 |
43250184 | 8*45 | 1.77 | 0.31 | 0.24 | 1.42 | 0.15 | 1,540 |
43250185 | 8*50 | 1.97 | 0.31 | 0.24 | 1.69 | 0.18 | 1,540 |
