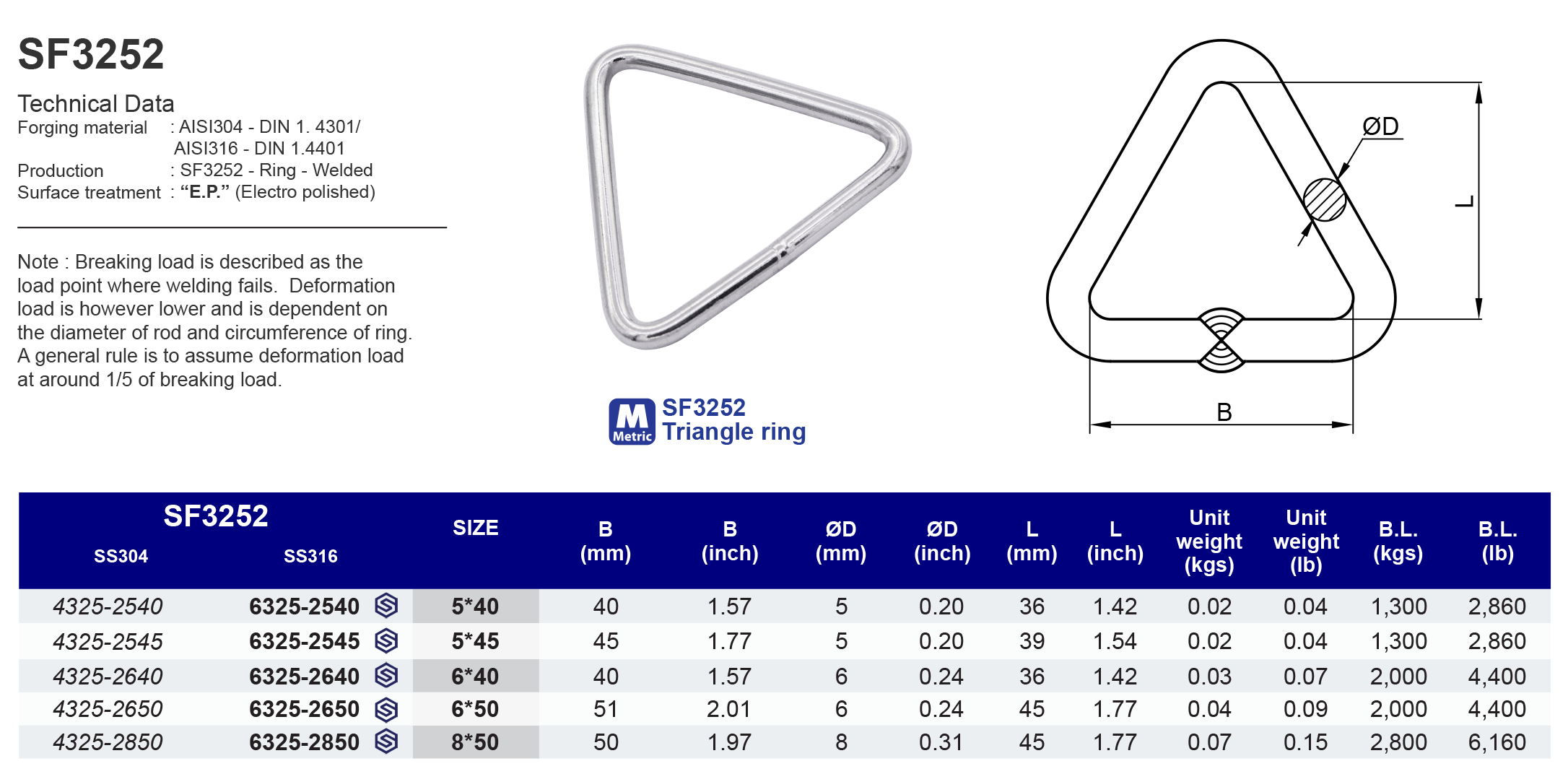

Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: SF3252 - Ring - Welded
Surface Treatment: “E.P.” (Electro polished) Note : Breaking load is described as the load point where welding fails. Deformation load is however lower and is dependent on
the diameter of rod and circumference of ring. A general rule is to assume deformation load at around 1/5 of breaking load.
Model
SF3252

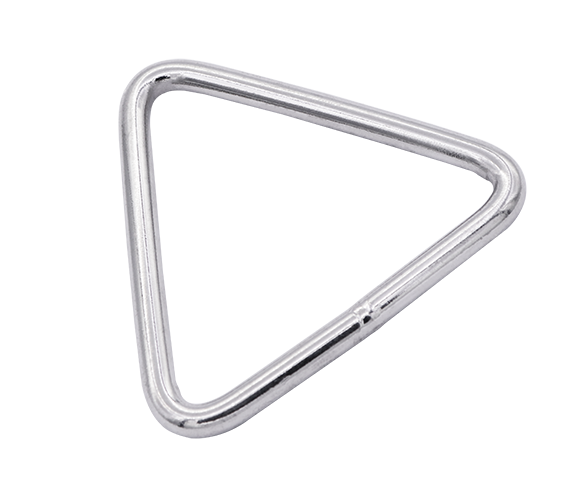

Tringle ring
304 ss
![Kinzi 304 Kinzi 304](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/304-ss.png)
![SF3252 SF3252drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/SF3252.png)
![SF3252 image SF3252 image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/SF3252_ImageV1.png)
SS304 | Size | B (mm) | ØD (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|
43252540 | 5*40 | 40 | 5 | 36 | 0.02 | 1,300 |
43252545 | 5*45 | 45 | 5 | 39 | 0.02 | 1,300 |
43252640 | 6*40 | 40 | 6 | 36 | 0.03 | 2,000 |
43252650 | 6*50 | 51 | 6 | 45 | 0.04 | 2,000 |
43252850 | 8*50 | 50 | 8 | 45 | 0.07 | 2,800 |
SS304 | Size | B (inch) | ØD (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|
43252540 | 3/16" x 1-9/16" | 1.57 | 0.20 | 1.42 | 0.04 | 2,860 |
43252545 | 3/16" x 1-3/4" | 1.77 | 0.20 | 1.54 | 0.04 | 2,860 |
43252640 | 1/4" x 1-9/16" | 1.57 | 0.24 | 1.42 | 0.07 | 4,400 |
43252650 | 1/4" x 2" | 2.01 | 0.24 | 1.77 | 0.09 | 4,400 |
43252850 | 5/16" x 2" | 1.97 | 0.31 | 1.77 | 0.15 | 6,160 |
