Description
Technical Data:
Forging material : AISI304 - DIN 1.4301
Production : SF3257/2 - Ring - Welded Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load is1/4 of breaking load DATA SHEET DOWNLOAD

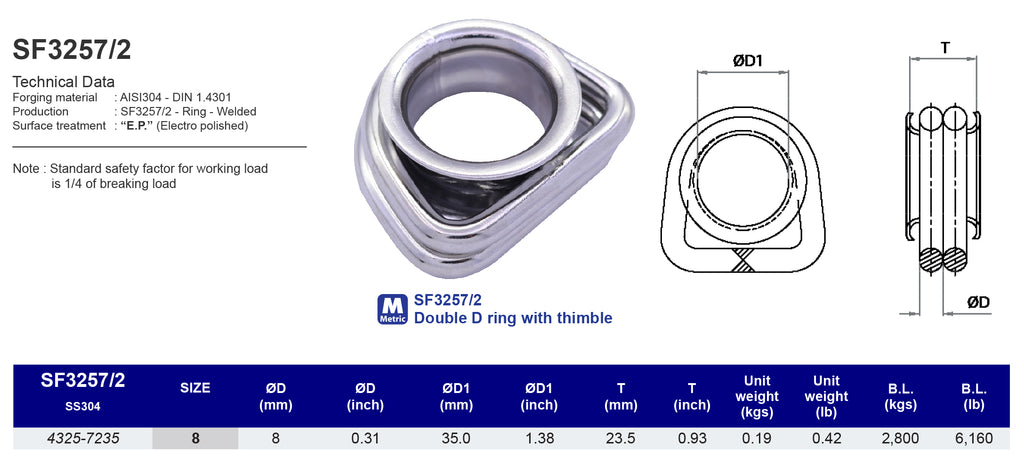

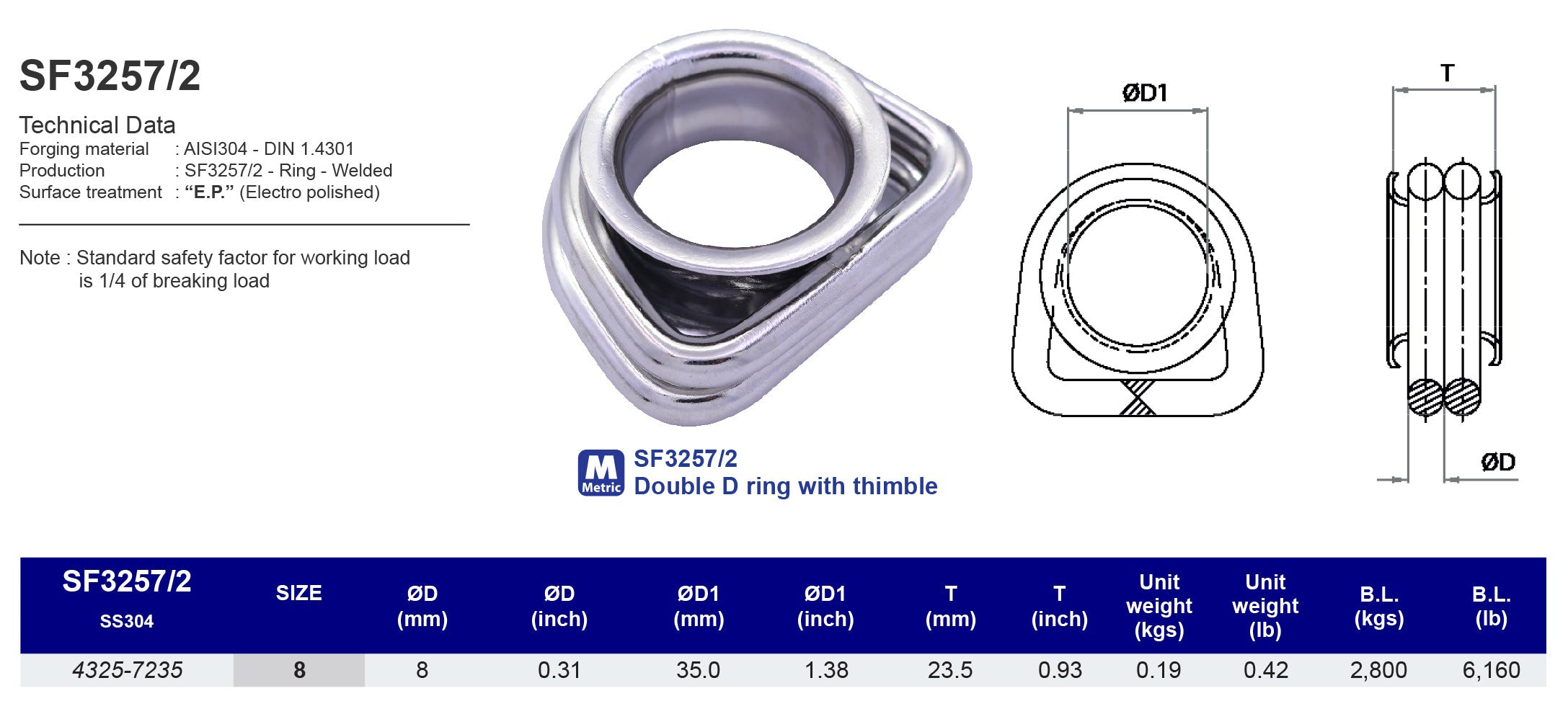

Model
SF3257/2

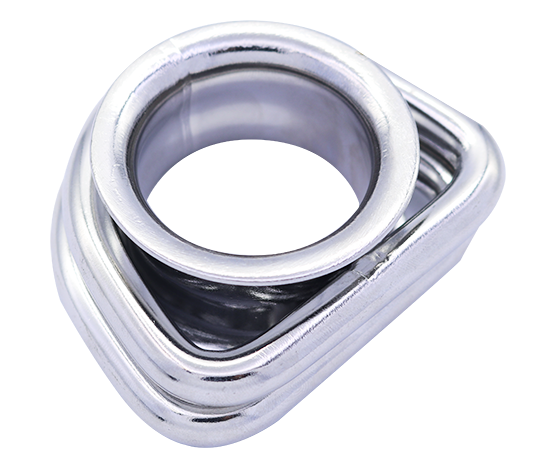

Double D ring with thimble
304 ss
| SS304 | Size | ØD (mm) | ØD1 (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 43257235 | 8 | 8 | 35 | 23.5 | 0.19 | 2,800 |
| SS304 | Size | ØD (inch) | ØD1 (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 43257235 | 5/16" | 0.31 | 1.38 | 0.93 | 0.42 | 6,160 |
