Description

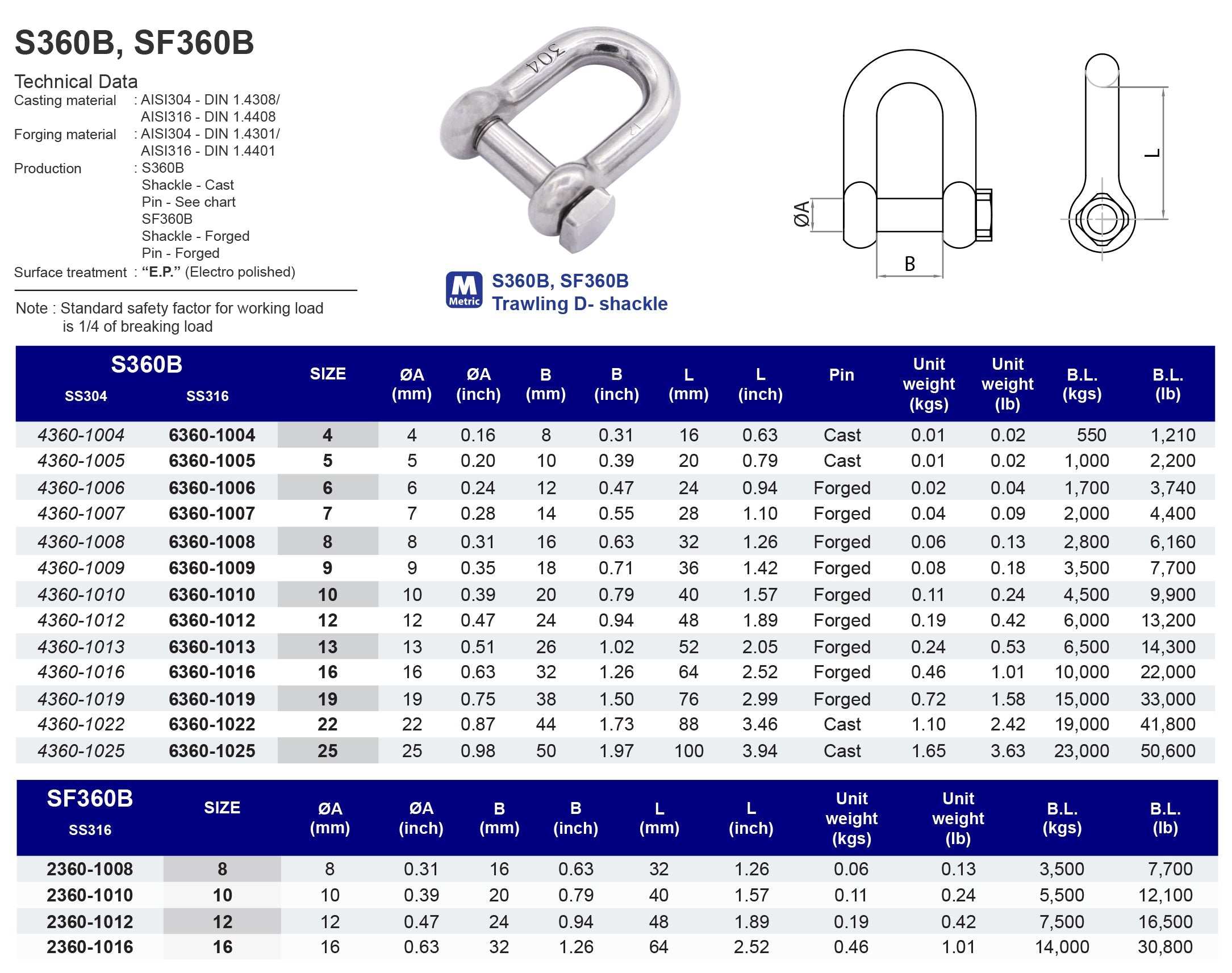

Technical Data:
Casting Material:AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: S360B - Shackle - Cast
Pin - See chart Production: SF360B - Shackle - Forged
Pin - Forged
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
SF360B

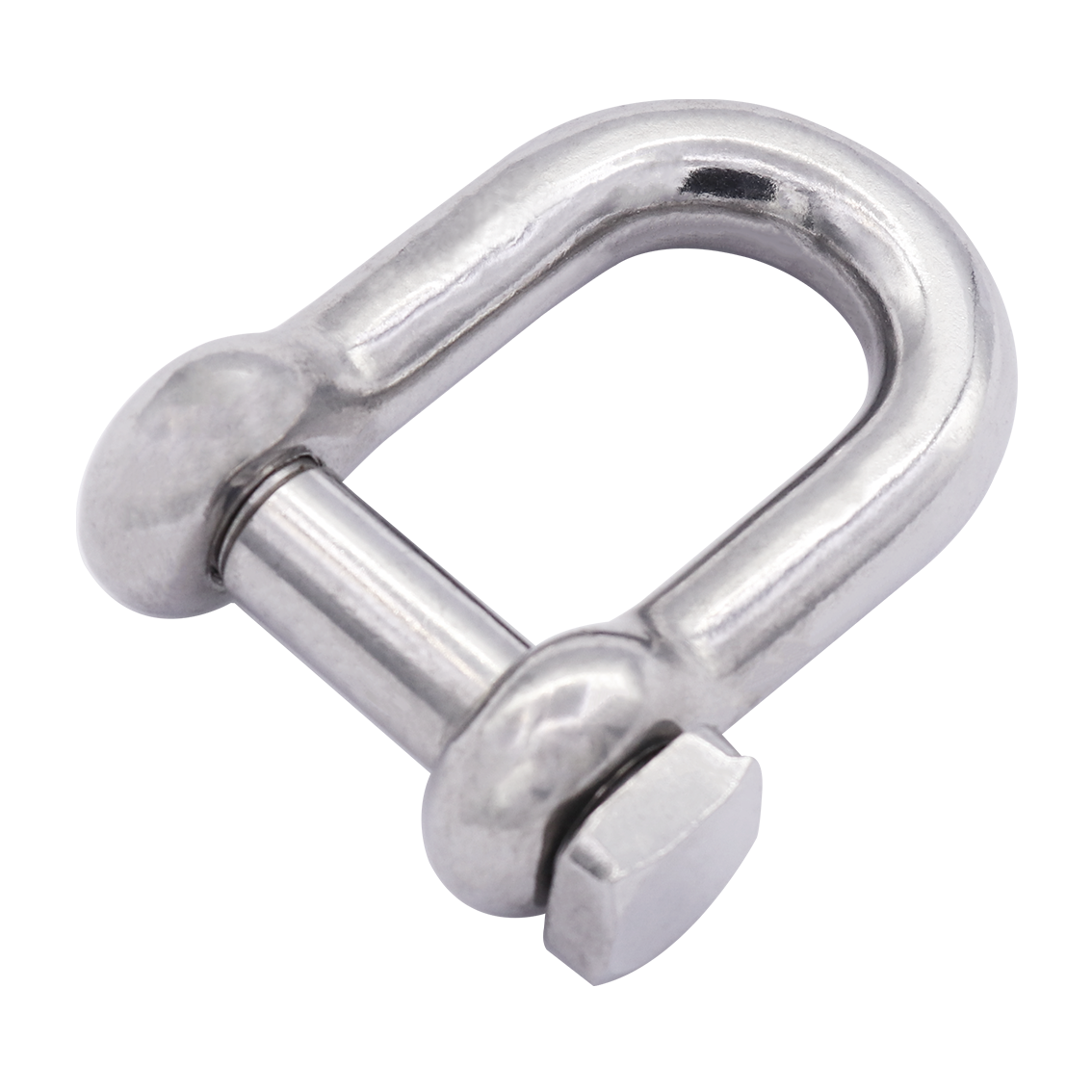

Trawling D- shackle
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 23601008 | 8 | 8 | 16 | 32 | 0.06 | 3,500 |
| 23601010 | 10 | 10 | 20 | 40 | 0.11 | 5,500 |
| 23601012 | 12 | 12 | 24 | 48 | 0.19 | 7,500 |
| 23601016 | 16 | 16 | 32 | 64 | 0.46 | 14,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 23601008 | 5/16" | 0.31 | 0.63 | 1.26 | 0.13 | 7,700 |
| 23601010 | 3/8" | 0.39 | 0.79 | 1.57 | 0.24 | 12,100 |
| 23601012 | 1/2" | 0.47 | 0.94 | 1.89 | 0.42 | 16,500 |
| 23601016 | 5/8" | 0.63 | 1.26 | 2.52 | 1.01 | 30,800 |
