Description

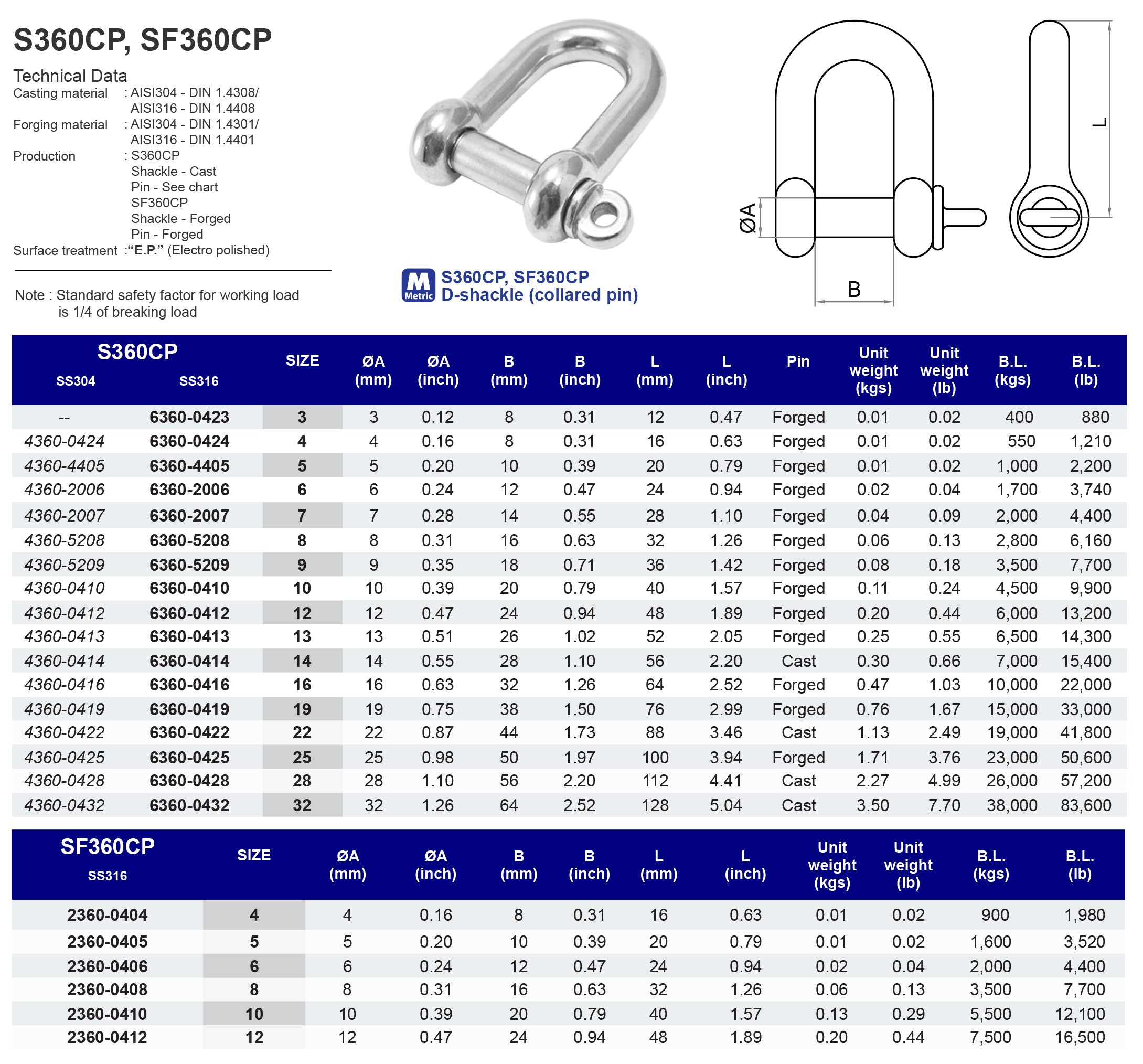

Technical Data
Forging Material : AISI316 - DIN 1.4401
Production : Shackle / Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
Model
SF360CP
D-shackle (Collared Pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 23600404 | 4 | 4 | 8 | 16 | 0.01 | 900 |
| 23600405 | 5 | 5 | 10 | 20 | 0.01 | 1,600 |
| 23600406 | 6 | 6 | 12 | 24 | 0.02 | 2,000 |
| 23600408 | 8 | 8 | 16 | 32 | 0.06 | 3,500 |
| 23600410 | 10 | 10 | 20 | 40 | 0.13 | 5,500 |
| 23600412 | 12 | 12 | 24 | 48 | 0.20 | 7,500 |
| 23600416 | 16 | 16 | 32 | 64 | 0.48 | 14,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 23600404 | 5/32" | 0.16 | 0.31 | 0.63 | 0.02 | 1,980 |
| 23600405 | 3/16" | 0.20 | 0.39 | 0.79 | 0.02 | 3,520 |
| 23600406 | 1/4" | 0.24 | 0.47 | 0.94 | 0.04 | 4,400 |
| 23600408 | 9/32" | 0.31 | 0.63 | 1.26 | 0.13 | 7,700 |
| 23600410 | 5/16" | 0.39 | 0.79 | 1.57 | 0.29 | 12,100 |
| 23600412 | 1/2" | 0.47 | 0.94 | 1.89 | 0.44 | 16,500 |
| 23600416 | 3/8" | 0.63 | 1.26 | 2.52 | 1.06 | 30,800 |
