Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301
AISI316 - DIN 1.4401
Production: SF541 - Bolt - Forged
Surface Treatment: “E.P.” (Electro polished)

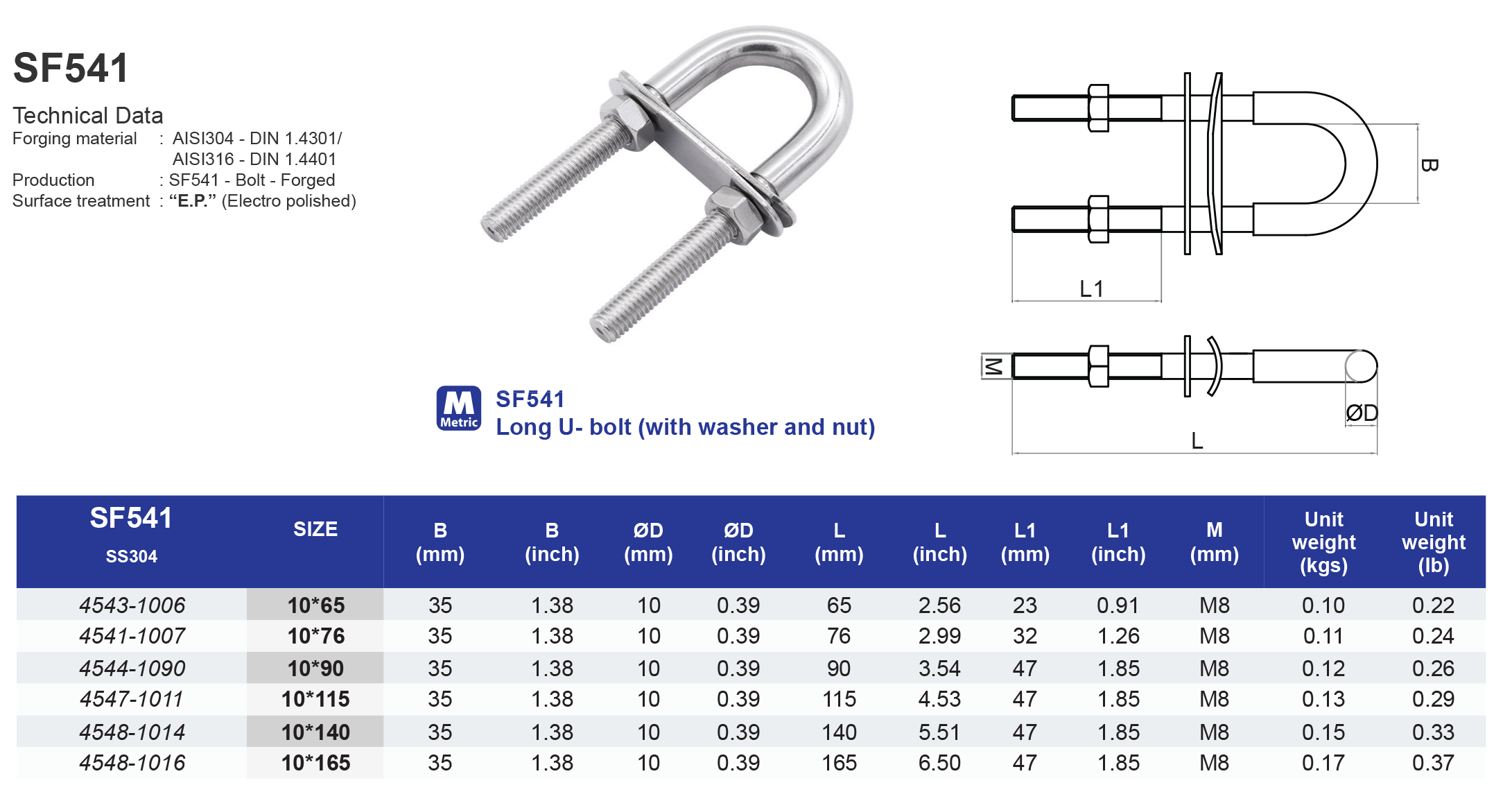

Model
SF541
Long U-bolt (with washer and nut)
304 ss
| SS304 | Size | B (mm) | ØD (mm) | L (mm) | L1 (mm) | M (thread) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|
| 45431006 | 10*65 | 35 | 10 | 65 | 23 | M8 | 0.10 |
| 45411007 | 10*76 | 35 | 10 | 76 | 32 | M8 | 0.11 |
| 45441090 | 10*90 | 35 | 10 | 90 | 47 | M8 | 0.12 |
| 45471011 | 10*115 | 35 | 10 | 115 | 47 | M8 | 0.13 |
| 45481014 | 10*140 | 35 | 10 | 140 | 47 | M8 | 0.15 |
| 45481016 | 10*165 | 35 | 10 | 165 | 47 | M8 | 0.17 |
| SS304 | Size | B (inch) | ØD (inch) | L (inch) | L1 (inch) | M (thread) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|
| 45431006 | 10*65 | 1.38 | 0.39 | 2.56 | 0.91 | M8 | 0.22 |
| 45411007 | 10*76 | 1.38 | 0.39 | 2.99 | 1.26 | M8 | 0.24 |
| 45441090 | 10*90 | 1.38 | 0.39 | 3.54 | 1.85 | M8 | 0.26 |
| 45471011 | 10*115 | 1.38 | 0.39 | 4.53 | 1.85 | M8 | 0.29 |
| 45481014 | 10*140 | 1.38 | 0.39 | 5.51 | 1.85 | M8 | 0.33 |
| 45481016 | 10*165 | 1.38 | 0.39 | 6.50 | 1.85 | M8 | 0.37 |
