Description
Technical Data:
Forging Material:
AISI316 - DIN 1.4401
Surface Treatment:
Electro polished
Model
SF6701L-R

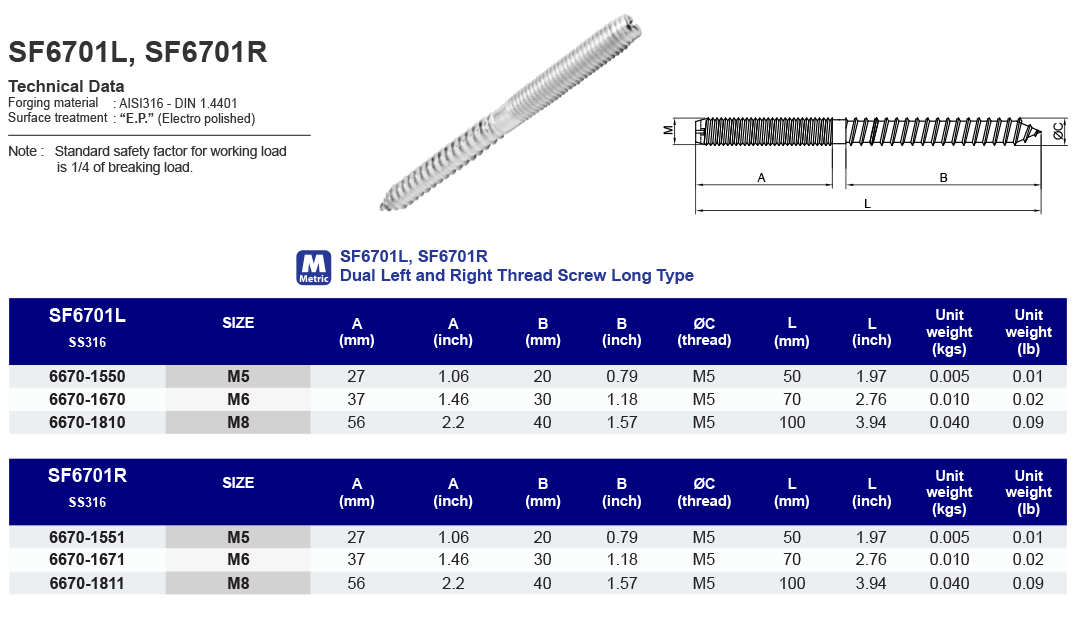

SF6701L-R Dual Left and Right Thread Screw Long Type
316 ss
| SS316 | Size | A(mm) | B(mm) | ØC(thread) | L(inch) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 66701550 | M5(L) | 27 | 20 | M5 | 1.97 | 0.005 |
| 66701670 | M6(L) | 37 | 30 | M5 | 2.76 | 0.010 |
| 66701810 | M8(L) | 56 | 40 | M5 | 3.94 | 0.040 |
| 66701551 | M5(R) | 27 | 20 | M5 | 50 | 0.005 |
| 66701671 | M6(R) | 37 | 30 | M5 | 70 | 0.010 |
| 66701811 | M8(R) | 56 | 40 | M5 | 100 | 0.040 |
| SS316 | Size | A(inch) | B(inch) | ØC(thread) | L(inch) | Unit weight(Ib) |
|---|---|---|---|---|---|---|
| 66701550 | M5(L) | 1.06 | 0.79 | M5 | 1.97 | 0.01 |
| 66701670 | M6(L) | 1.46 | 1.18 | M5 | 2.76 | 0.02 |
| 66701810 | M8(L) | 2.20 | 1.57 | M5 | 3.94 | 0.09 |
| 66701551 | M5(R) | 1.06 | 0.79 | M5 | 1.97 | 0.01 |
| 66701671 | M6(R) | 1.46 | 1.18 | M5 | 2.76 | 0.02 |
| 66701811 | M8(R) | 2.20 | 1.57 | M5 | 3.94 | 0.09 |
