Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
AISI316 - DIN 1.4408
Forging Material:
AISI 304 - DIN 1.4301
AISI 316 - DIN 1.4401
Production:
Frame Cast
Eye Forged
Surface Treatment:
Electro Polished / Passivated
Model
SF6702L-R
Dual Left and Right Thread Screw Short Type
316 ss

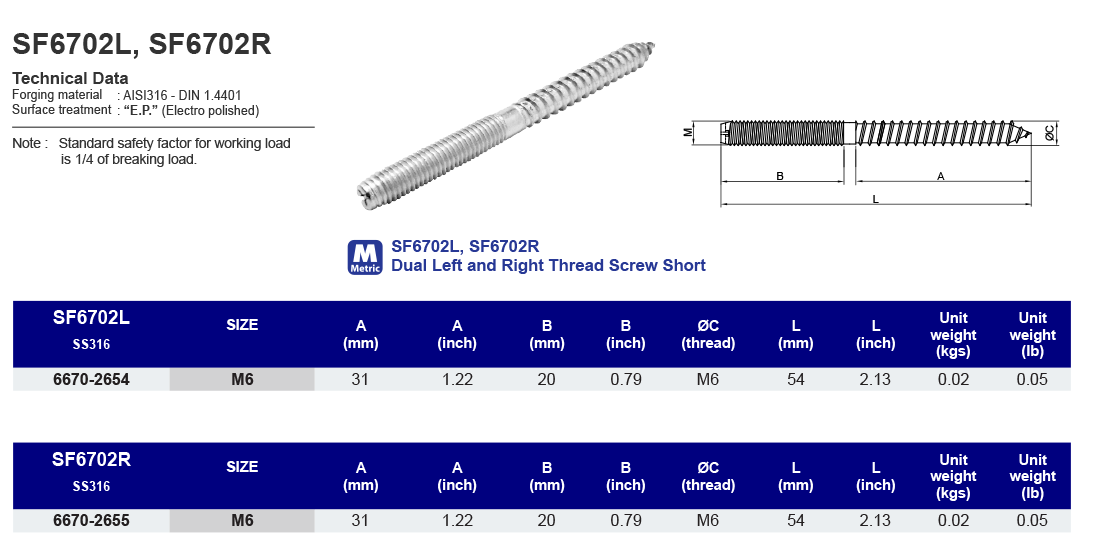

| SS316 | Size | A(mm) | B(mm) | ØC(thread) | L(mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 66702654 | M6(L) | 31 | 20 | M6 | 54 | 0.02 |
| 66702655 | M6(R) | 31 | 20 | M6 | 54 | 0.02 |
| SS316 | Size | A(inch) | B(inch) | ØC(thread) | L(inch) | Unit weight(Ib) |
|---|---|---|---|---|---|---|
| 66702654 | M6(L) | 1.22 | 0.79 | M6 | 2.13 | 0.05 |
| 66702655 | M6(R) | 1.22 | 0.79 | M6 | 2.13 | 0.05 |
