Description
Technical Data:
Forging Material: AISI 316 - DIN 1.4401
Surface Treatment: Electro Polished
Model

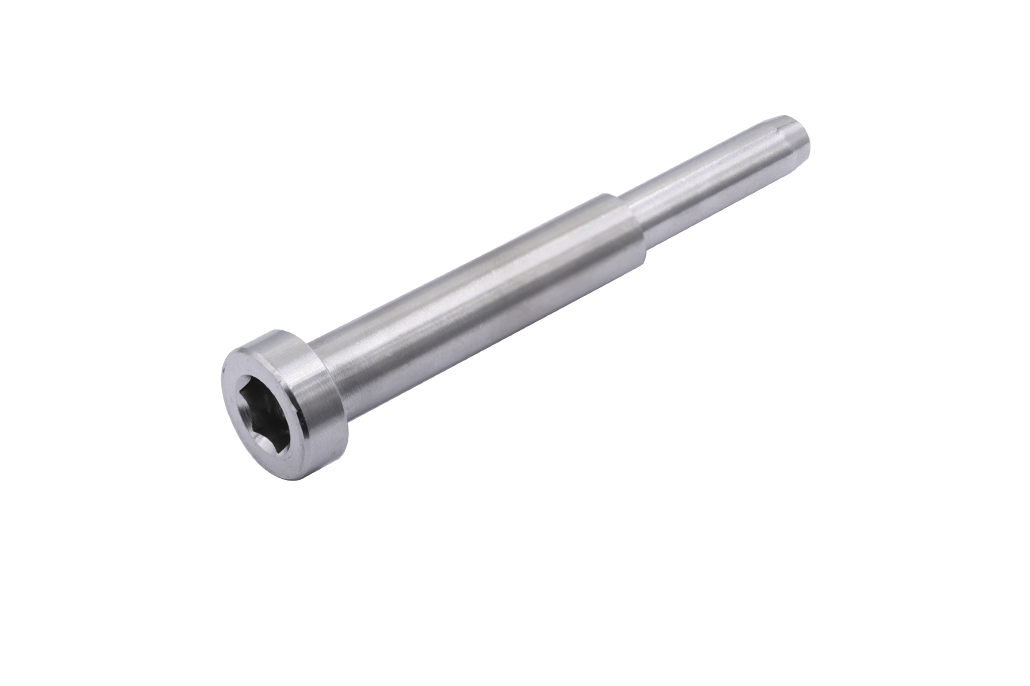

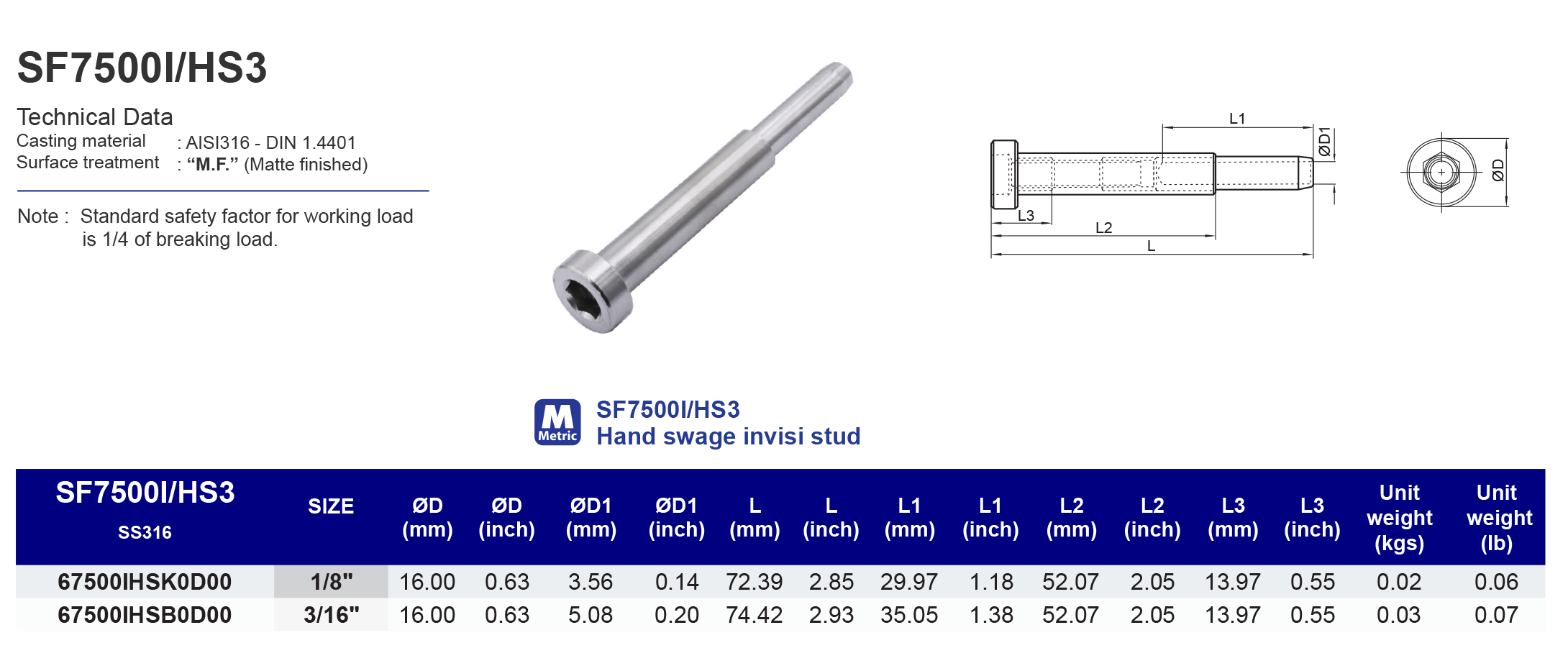

SF7500I/HS3
Hand swage invisi stud
316 ss
| SS316 | Size | ØD (mm) | ØD1 (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 67500IHSK0D00 | 1/8" | 16.00 | 3.56 | 72.39 | 29.97 | 52.07 | 13.97 | 0.02 |
| 67500IHSB0D00 | 3/16" | 16.00 | 5.08 | 74.42 | 35.05 | 52.07 | 13.97 | 0.03 |
| SS316 | Size | ØD (inch) | ØD1 (inch) | L (inch) | L1 (inch) | L2 (inch) | L3 (inch) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 67500IHSK0D00 | 1/8" | 0.63 | 0.14 | 2.85 | 1.18 | 2.05 | 0.55 | 0.06 |
| 67500IHSB0D00 | 3/16" | 0.63 | 0.20 | 2.93 | 1.38 | 2.05 | 0.55 | 0.07 |
