Description
Technical Data:
Forging material : AISI 316 - DIN 1.4401
Production : SF7801 - Stud - Forged
Surface Treatment :“M.F.” (Matte finished)
Model
SF7801/HS-LH

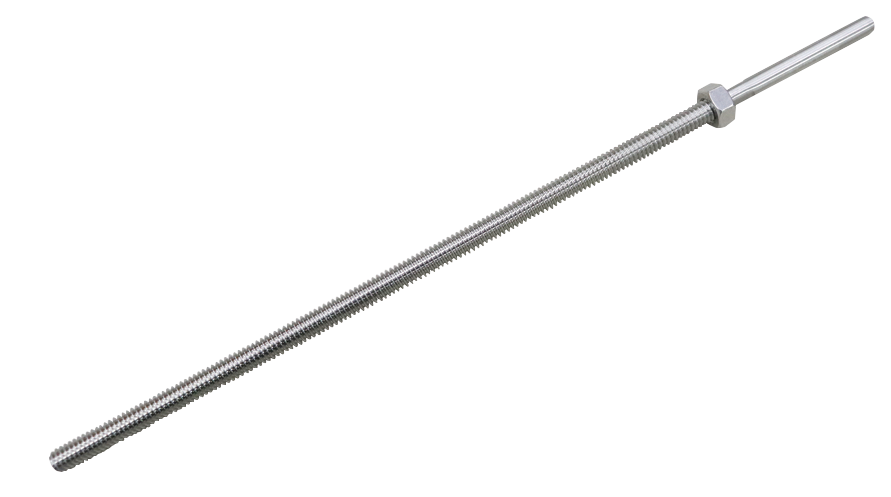

Extra long hand swage stud (LH)
316 ss
| SS316 | Size | E(mm) | ØD(mm) | L(mm) | L1 (mm) | M (thread) | Weight (kgs) |
|---|---|---|---|---|---|---|---|
| 607801/LK0D00 | 1/8" x 1/4"UNC | 195.07 | 1/8" | 245.11 | 38.35 | 1/4"-20UNC | 0.04 |
| 607801/LB0D00 | 3/16" x 1/4"UNC | 195.07 | 3/16" | 255.02 | 48.01 | 1/4"-20UNC | 0.05 |
| SS316 | Size | E(inch) | ØD(inch) | L(inch) | L1 (inch) | M (thread) | Weight (lb) |
|---|---|---|---|---|---|---|---|
| 607801/LK0D00 | 1/8" x 1/4"UNC | 7.68 | 1/8" | 9.65 | 1.51 | 1/4"-20UNC | 0.10 |
| 607801/LB0D00 | 3/16" x 1/4"UNC | 7.68 | 3/16" | 10.04 | 1.89 | 1/4"-20UNC | 0.12 |
