Description
Technical Data:
Forging material : AISI 316 - DIN 1.4401
Production : SF7801/HS1 - Stud - Forged
Surface Treatment :“E.P.” (Matte finished)
Model
SF7801/HS1

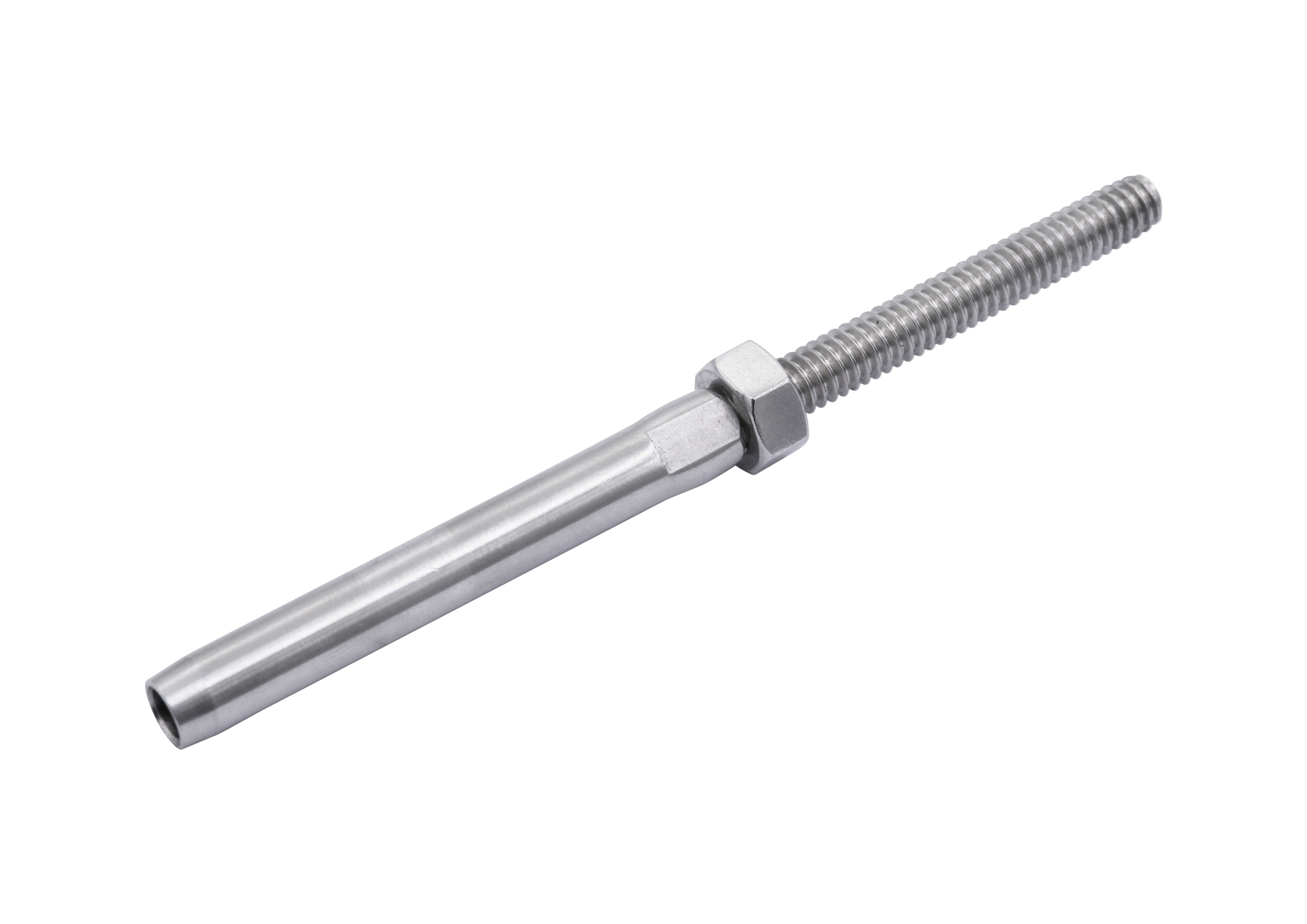

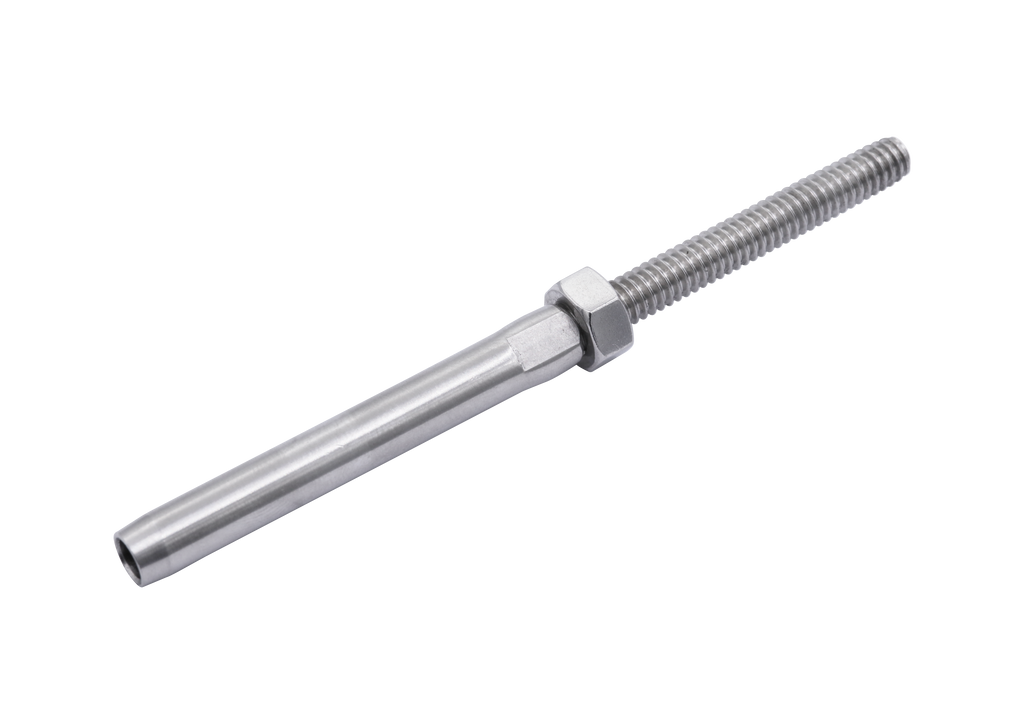

Hand swage stud
316 ss

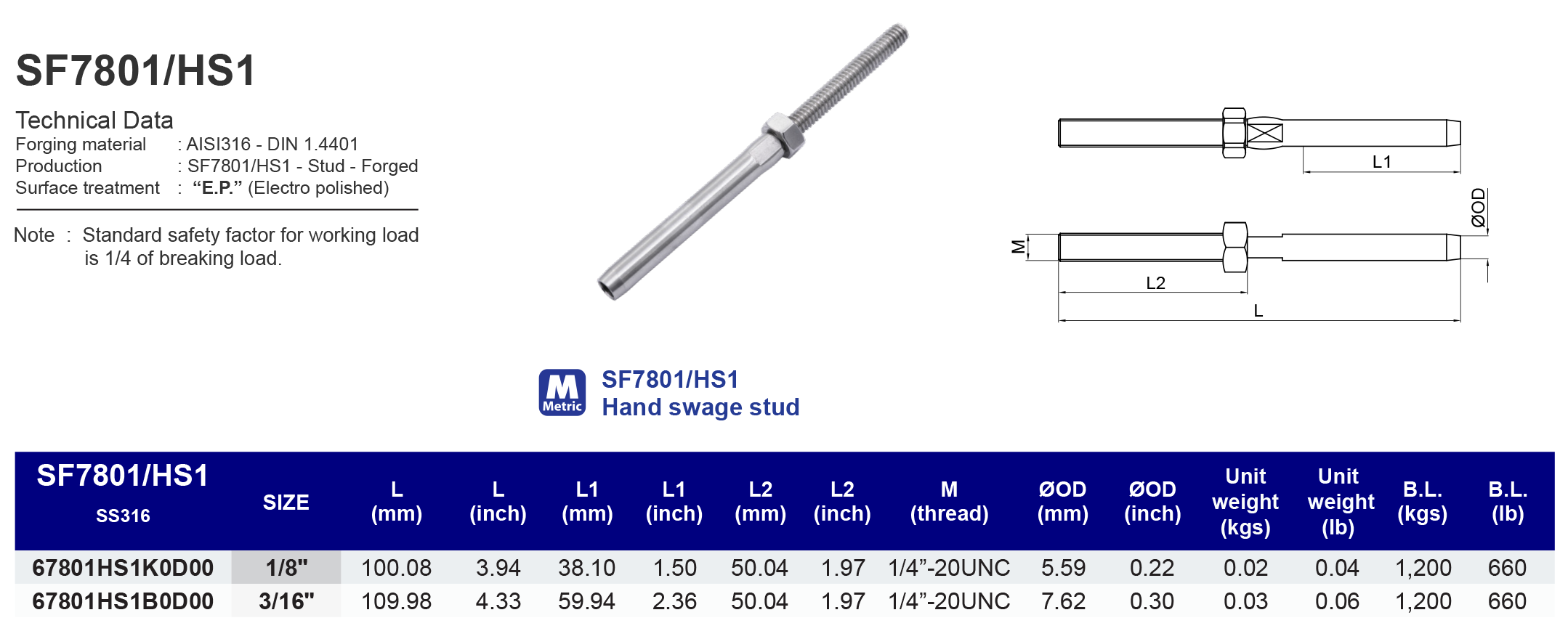

| SS316 | Size | L(mm) | L1(mm) | L2(mm) | M(thread) | ØOD(mm) | Weight(mm) | BL.(kgs) |
|---|---|---|---|---|---|---|---|---|
| 67801HS1K0D00 | 1/8" | 100.08 | 38.10 | 50.04 | 1/4"-20UNC | 5.59 | 0.02 | 1,200 |
| 67801HS1B0D00 | 3/16" | 109.98 | 59.94 | 50.04 | 1/4"-20UNC | 7.62 | 0.03 | 1,200 |

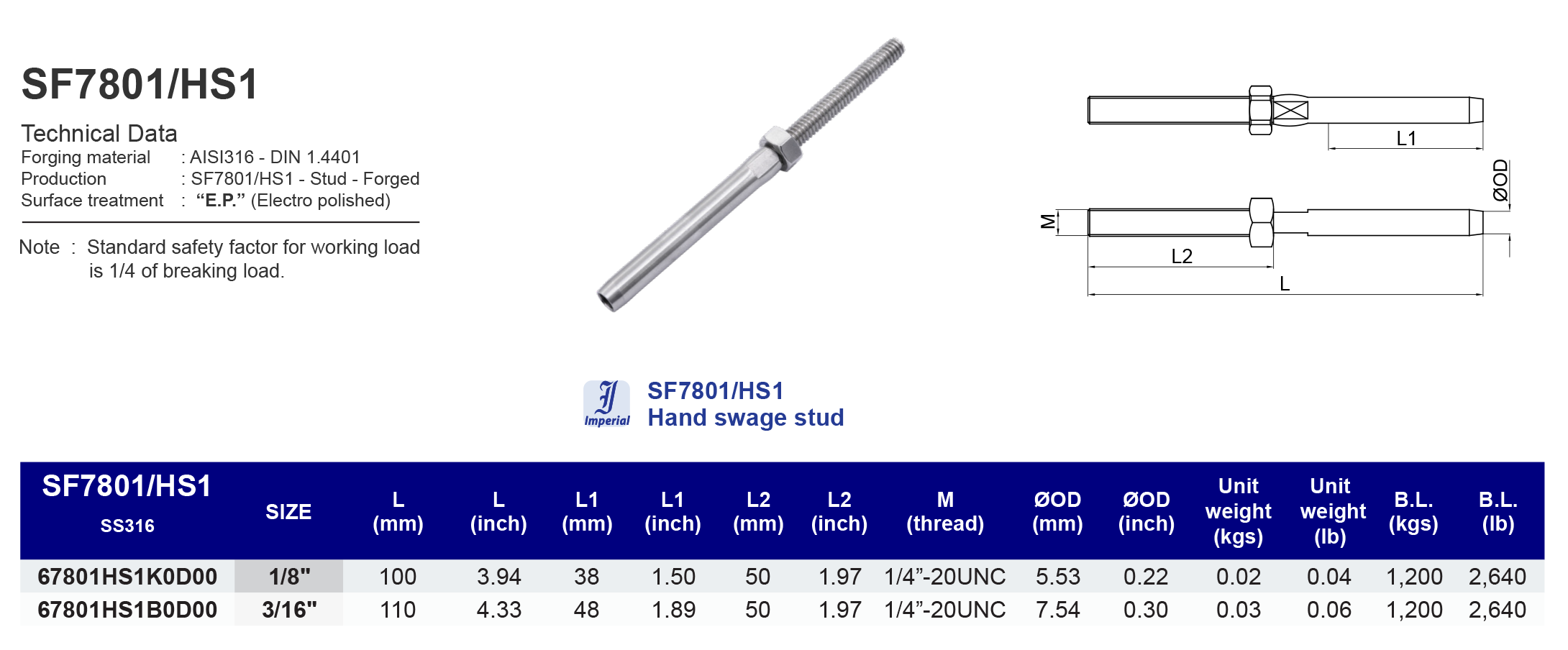

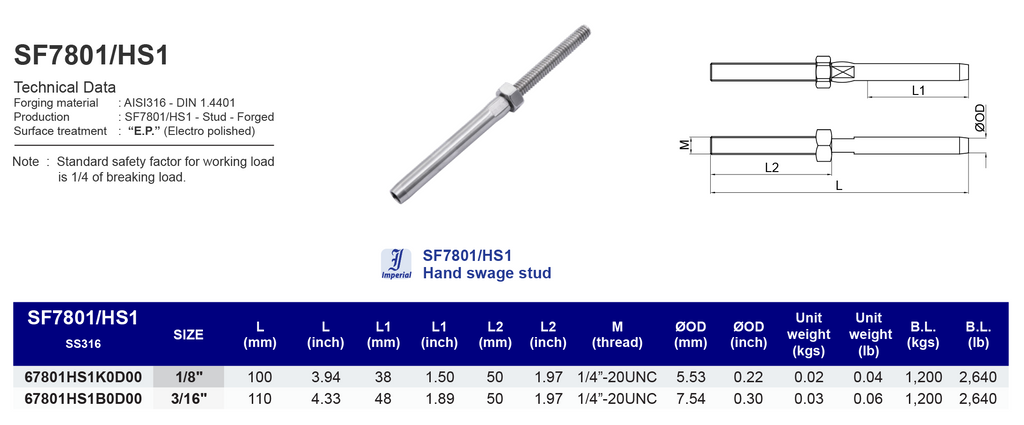

| SS316 | Size | L(inch) | L1(inch) | L2(inch) | M(thread) | ØOD(inch) | Weight(lb) | B.L. (Ib) |
|---|---|---|---|---|---|---|---|---|
| 67801HS1K0D00 | 1/8" | 3.94 | 1.50 | 1.97 | 1/4"-20UNC | 0.22 | 0.04 | 660 |
| 67801HS1B0D00 | 3/16" | 4.33 | 2.36 | 1.97 | 1/4"-20UNC | 0.30 | 0.06 | 660 |
