Description
Technical Data:
Forging material : AISI 316 - DIN 1.4401
Production : SF7801 - Stud - Forged
Surface Treatment :“M.F.” (Matte finished)
Note:

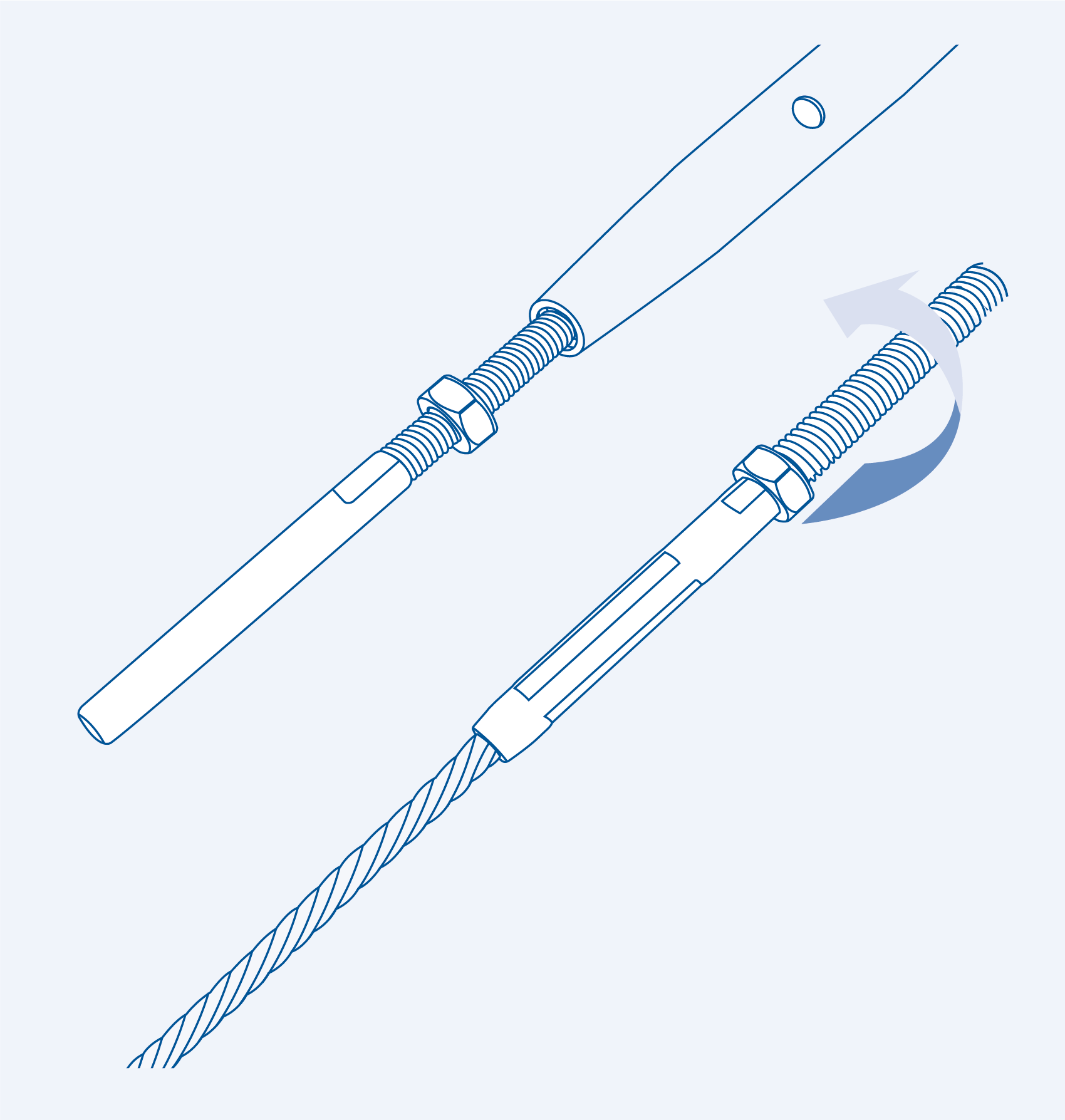

Standard terminals are the comon size used in assembly
with other products such as turnbuckles.”
“Non-standard terminals are size which are rarely used
incommon settings or product assemblies

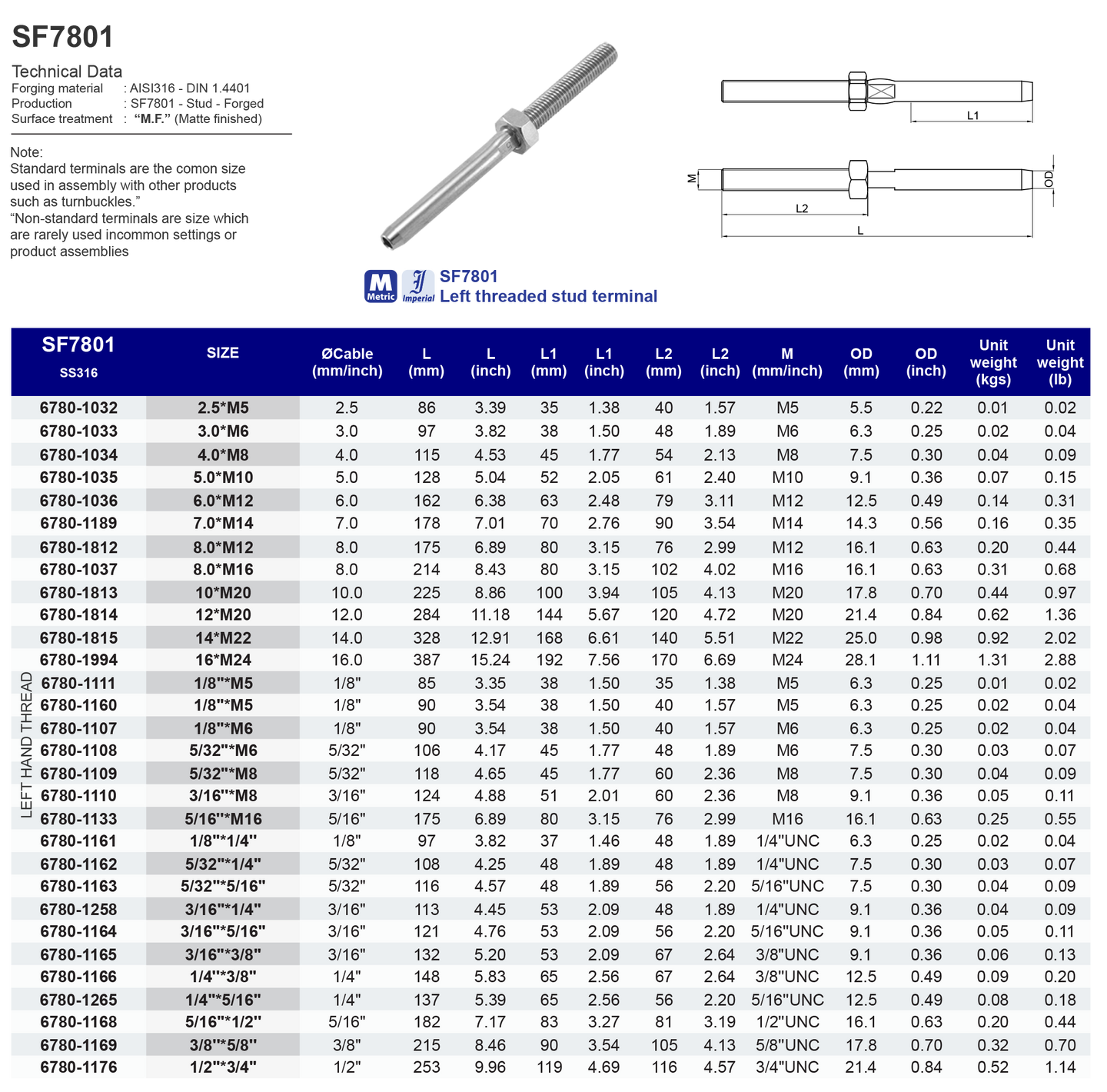

Model
SF7801 (LH)

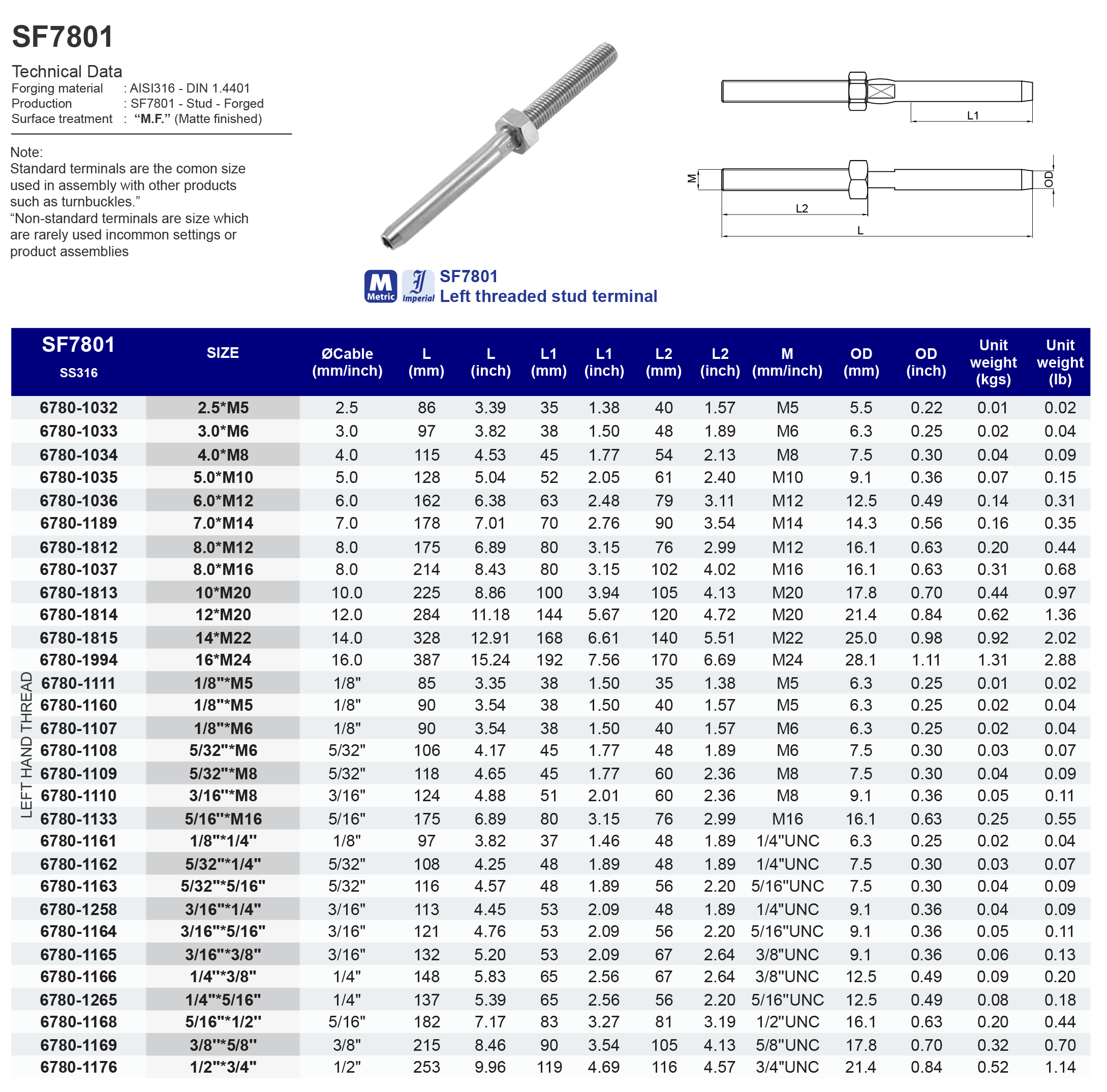

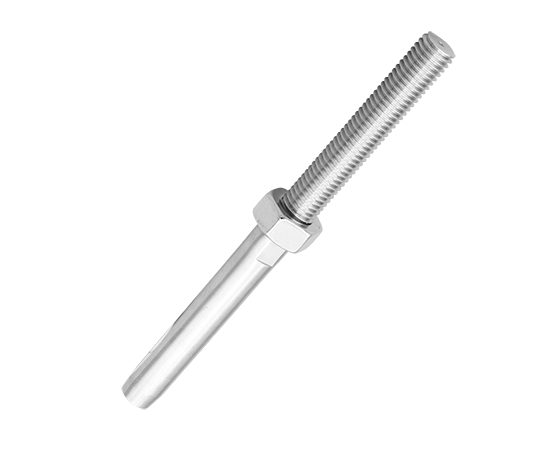

Left Threaded Stud Terminal
316 ss
| SS316 | Size | ØCable (mm) | L (mm) | L1 (mm) | L2 (mm) | M (mm) | OD (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 67801032 | 2.5*M5 | 2.5 | 86 | 35 | 40 | M5 | 5.5 | 0.01 |
| 67801033 | 3.0*M6 | 3 | 97 | 38 | 48 | M6 | 6.3 | 0.02 |
| 67801034 | 4.0*M8 | 4 | 115 | 45 | 54 | M8 | 7.5 | 0.04 |
| 67801035 | 5.0*M10 | 5 | 128 | 52 | 61 | M10 | 9.1 | 0.07 |
| 67801036 | 6.0*M12 | 6 | 162 | 63 | 79 | M12 | 12.5 | 0.14 |
| 67801189 | 7.0*M14 | 7 | 178 | 70 | 90 | M14 | 14.3 | 0.16 |
| 67801812 | 8.0*M12 | 8 | 175 | 80 | 76 | M12 | 16.1 | 0.20 |
| 67801037 | 8.0*M16 | 8 | 214 | 80 | 102 | M16 | 16.1 | 0.31 |
| 67801813 | 10*M20 | 10 | 225 | 100 | 105 | M20 | 17.8 | 0.44 |
| 67801814 | 12*M20 | 12 | 284 | 144 | 120 | M20 | 21.4 | 0.62 |
| 67801815 | 14*M22 | 14 | 328 | 168 | 140 | M22 | 25.0 | 0.92 |
| 67801994 | 16*M24 | 16 | 387 | 192 | 170 | M24 | 28.1 | 1.31 |
| SS316 | Size | ØCable (inch) | L (inch) | L1 (inch) | L2 (inch) | M (mm/inch) | OD (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 67801111 | 1/8"*M5 | 1/8" | 3.35 | 1.50 | 1.38 | M5 | 0.25 | 0.02 |
| 67801160 | 1/8''*M5 | 1/8" | 3.54 | 1.50 | 1.57 | M5 | 0.25 | 0.04 |
| 67801107 | 1/8''*M6 | 1/8" | 3.54 | 1.50 | 1.57 | M6 | 0.25 | 0.04 |
| 67801108 | 5/32"*M6 | 5/32" | 4.17 | 1.77 | 1.89 | M6 | 0.30 | 0.07 |
| 67801109 | 5/32"*M8 | 5/32" | 4.65 | 1.77 | 2.36 | M8 | 0.30 | 0.09 |
| 67801110 | 3/16''*M8 | 3/16" | 4.88 | 2.01 | 2.36 | M8 | 0.36 | 0.11 |
| 67801133 | 5/16''*M16 | 5/16" | 6.89 | 3.15 | 2.99 | M16 | 0.63 | 0.55 |
| 67801161 | 1/8''*1/4'' | 1/8" | 3.82 | 1.46 | 1.89 | 1/4''UNC | 0.25 | 0.04 |
| 67801162 | 5/32"*1/4" | 5/32" | 4.25 | 1.89 | 1.89 | 1/4"UNC | 0.30 | 0.07 |
| 67801163 | 5/32"*5/16'' | 5/32" | 4.57 | 1.89 | 2.20 | 5/16''UNC | 0.30 | 0.09 |
| 67801258 | 3/16"*1/4" | 3/16" | 4.45 | 2.09 | 1.89 | 1/4"UNC | 0.36 | 0.09 |
| 67801164 | 3/16''*5/16'' | 3/16" | 4.76 | 2.09 | 2.20 | 5/16''UNC | 0.36 | 0.11 |
| 67801165 | 3/16"*3/8" | 3/16" | 5.20 | 2.09 | 2.64 | 3/8"UNC | 0.36 | 0.13 |
| 67801166 | 1/4''*3/8'' | 1/4" | 5.83 | 2.56 | 2.64 | 3/8''UNC | 0.49 | 0.20 |
| 67801265 | 1/4"*5/16'' | 1/4" | 5.39 | 2.56 | 2.20 | 5/16''UNC | 0.49 | 0.18 |
| 67801168 | 5/16''*1/2'' | 5/16" | 7.17 | 3.27 | 3.19 | 1/2''UNC | 0.63 | 0.44 |
| 67801169 | 3/8''*5/8'' | 3/8" | 8.46 | 3.54 | 4.13 | 5/8''UNC | 0.70 | 0.70 |
| 67801176 | 1/2"*3/4" | 1/2" | 9.96 | 4.69 | 4.57 | 3/4"UNC | 0.84 | 1.14 |
