Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Surface Treatment: Matte Finished
Model

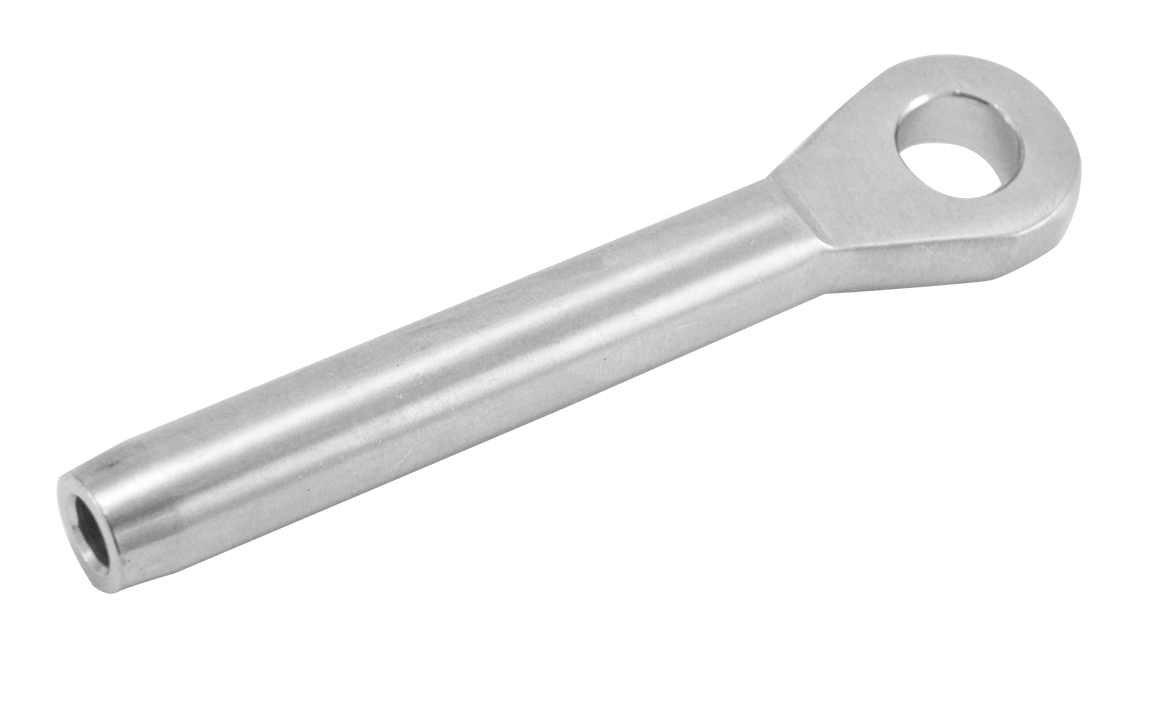

SF7802
Swage eye
316 ss
| SS316 | Size | ØC(mm) | ØD(mm) | L(mm) | Weight(kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 67802733 | 3/32" | 5.59 | 6.35 | 35.50 | 0.008 | 850 |
| 67802718 | 1/8" | 6.60 | 7.62 | 50.29 | 0.012 | 1,000 |
| 67802753 | 5/32" | 8.38 | 7.62 | 63.86 | 0.022 | 1,350 |
| 67802731 | 3/16" | 10.41 | 9.14 | 95.15 | 0.038 | 2,500 |
| 67802773 | 7/32" | 7.87 | 10.92 | 85.94 | 0.055 | 2,500 |
| 67802714 | 1/4" | 12.95 | 12.45 | 161.23 | 0.082 | 4,500 |
| 67802561 | 5/16" | 14.48 | 16.26 | 235.44 | 0.172 | 6,700 |
| 67802381 | 3/8" | 16.26 | 17.78 | 289.10 | 0.252 | 7,800 |
| 67802712 | 1/2" | 19.30 | 21.34 | 411.86 | 0.354 | 9,000 |
| SS316 | Size | ØC(inch) | ØD(inch) | L(inch) | Weight(lb) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 67802733 | 3/32" | 0.22 | 0.25 | 2.20 | 0.02 | 466 |
| 67802718 | 1/8" | 0.26 | 0.30 | 2.44 | 0.02 | 550 |
| 67802753 | 5/32" | 0.33 | 0.30 | 3.03 | 0.04 | 741 |
| 67802731 | 3/16" | 0.41 | 0.36 | 3.43 | 0.08 | 1,375 |
| 67802773 | 7/32" | 0.31 | 0.43 | 3.85 | 0.13 | 1,375 |
| 67802714 | 1/4" | 0.51 | 0.49 | 4.23 | 0.18 | 2,475 |
| 67802561 | 5/16" | 0.57 | 0.64 | 5.24 | 0.37 | 3,685 |
| 67802381 | 3/8" | 0.64 | 0.70 | 6.28 | 0.55 | 4,290 |
| 67802712 | 1/2" | 0.76 | 0.84 | 7.09 | 0.77 | 4,950 |
