Description

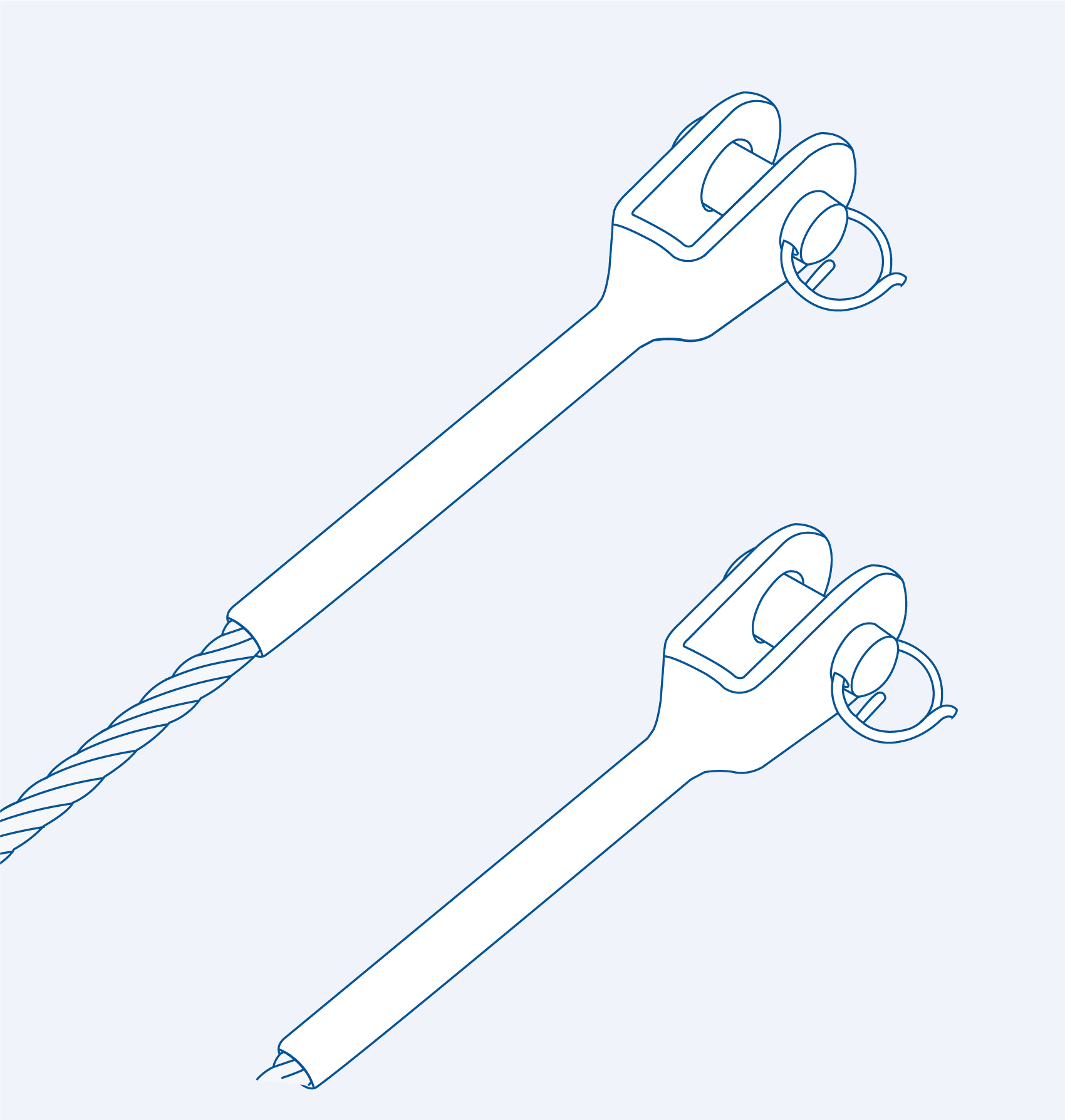

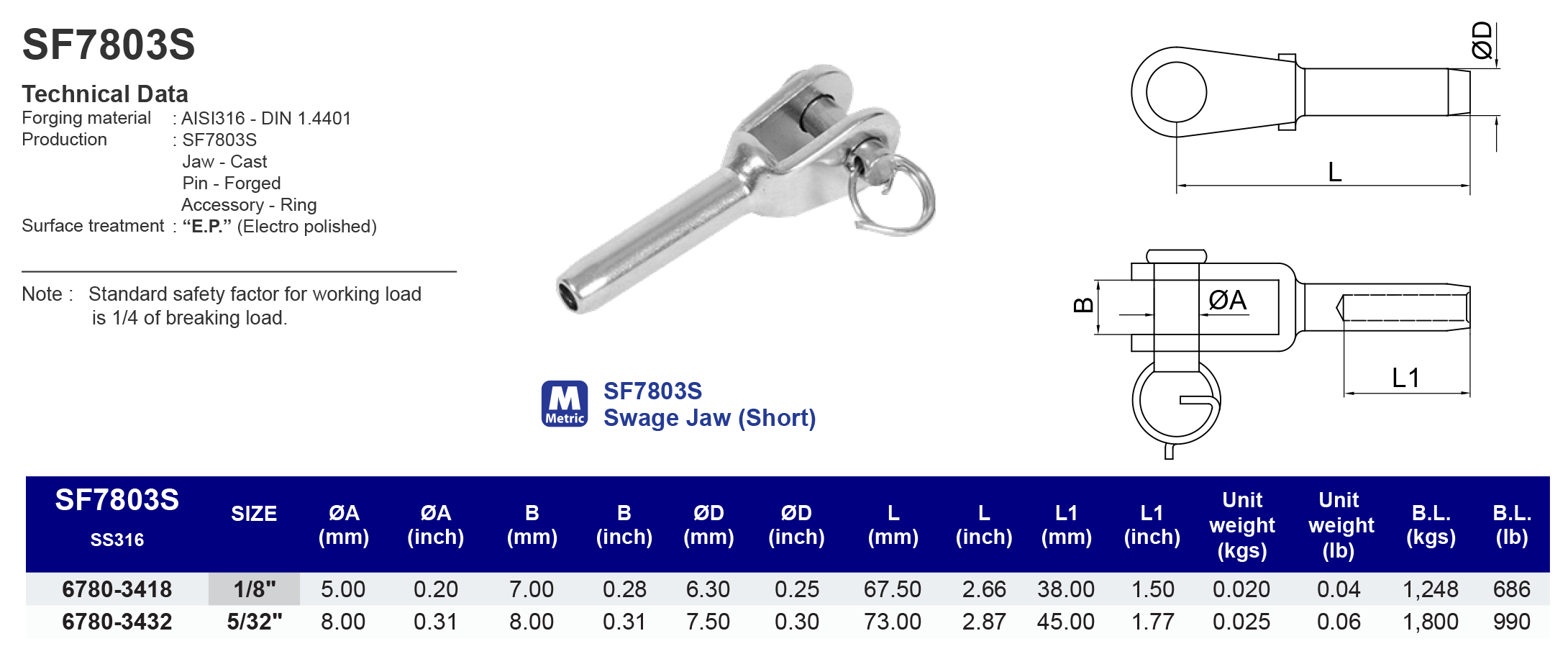

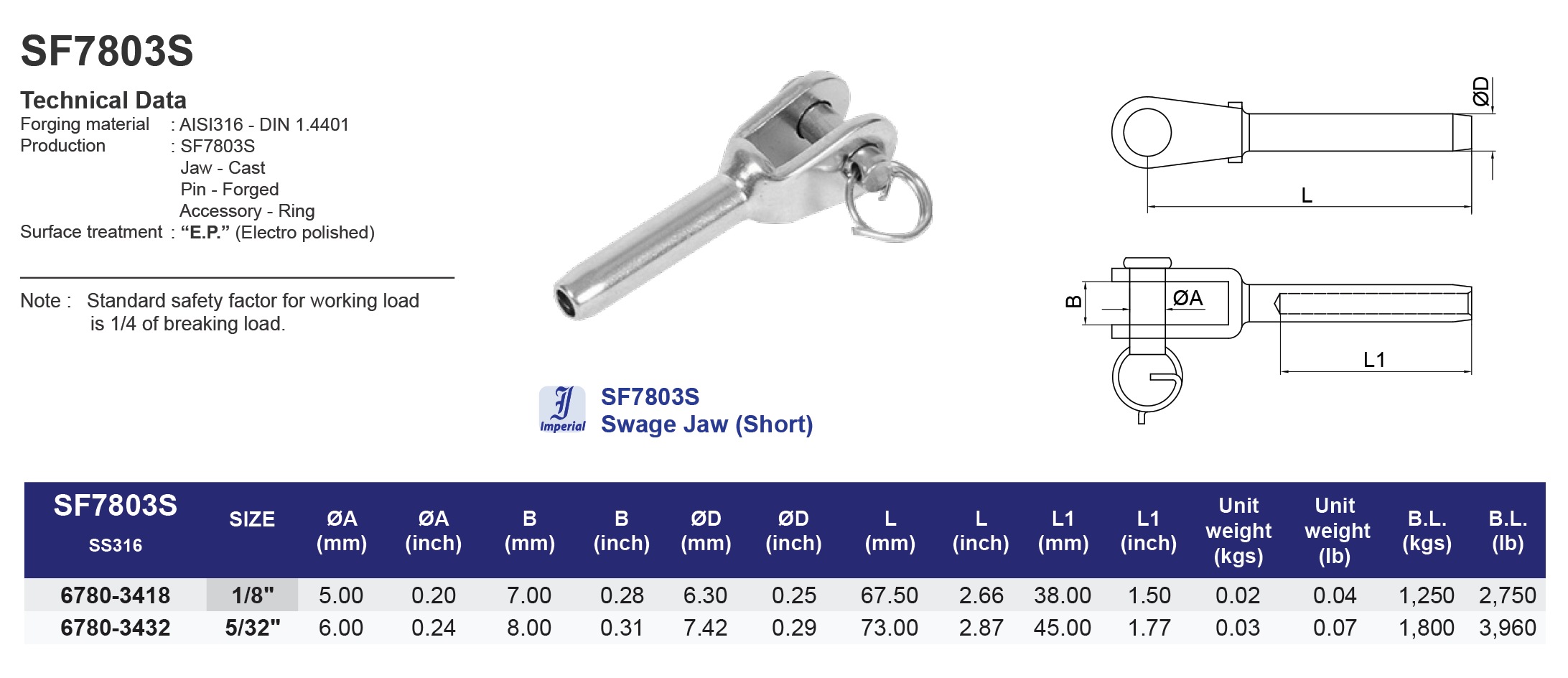

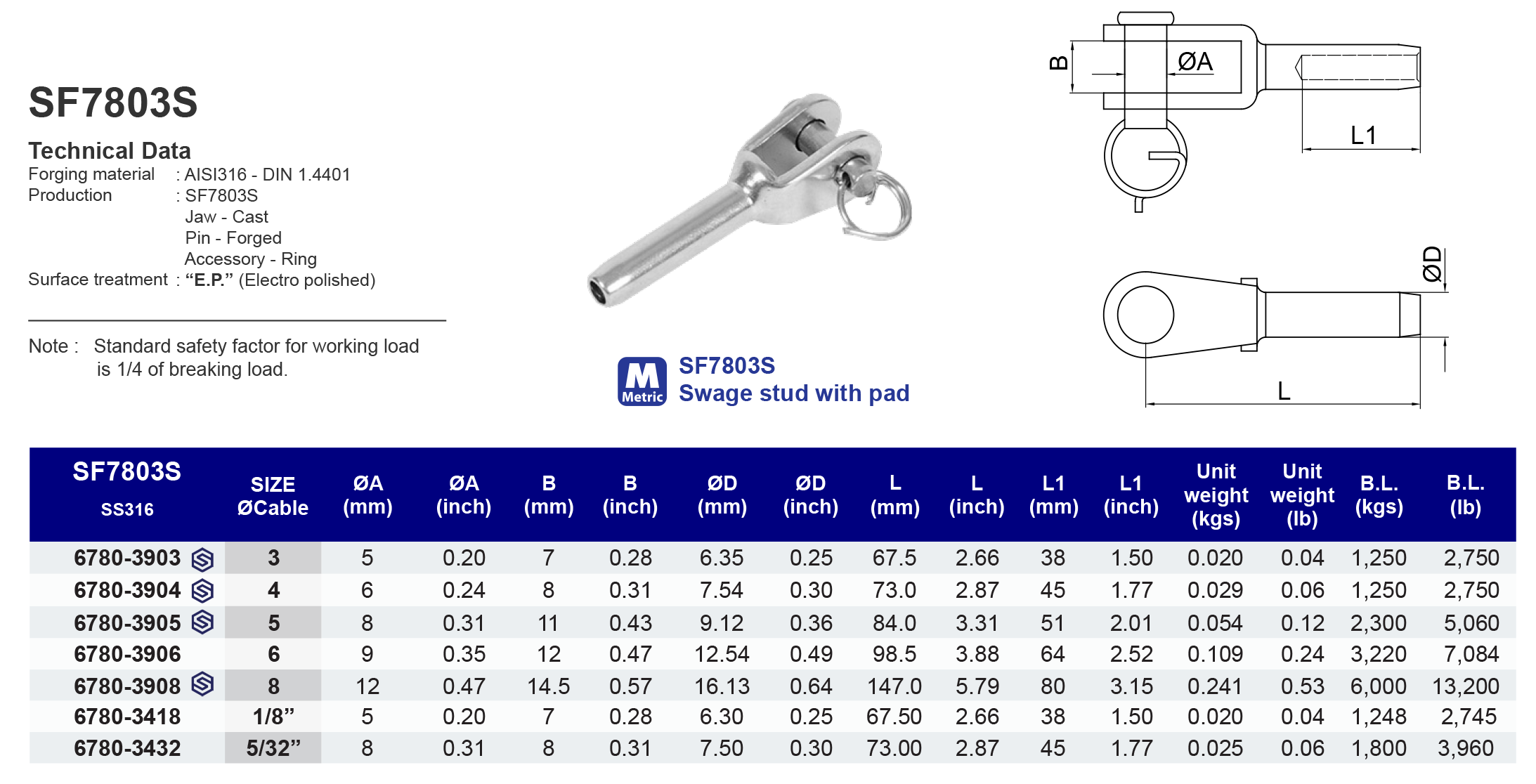

Technical Data:
Forging material : AISI316 - DIN 1.4401
Production : SF7803S - Jaw - Cast
Pin - Forged
Accessory - Ring
Surface treatment : “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.
DATA SHEET DOWNLOAD
Model
SF7803S

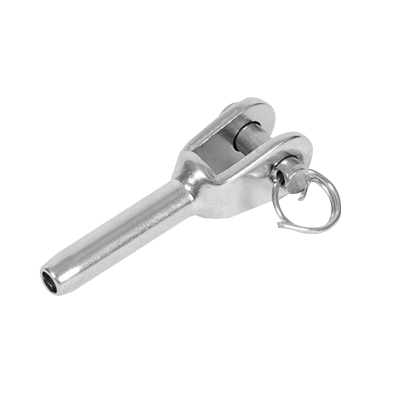

Swage Forks
316 ss
| SS316 | Size ØCable (inch) | ØA (inch) | B (inch) | ØD (inch) | L (inch) | L1 (inch) | Unit weight (Ib) | B.L. (Ib) |
|---|---|---|---|---|---|---|---|---|
| 67803903 | 3 | 0.20 | 0.28 | 0.25 | 2.66 | 1.50 | 0.04 | 2,750 |
| 67803904 | 4 | 0.24 | 0.31 | 0.30 | 2.87 | 1.77 | 0.06 | 2,750 |
| 67803905 | 5 | 0.31 | 0.43 | 0.36 | 3.31 | 2.01 | 0.12 | 5,060 |
| 67803906 | 6 | 0.35 | 0.47 | 0.49 | 3.88 | 2.52 | 0.13 | 7,084 |
| 67803908 | 8 | 0.47 | 0.57 | 0.64 | 5.79 | 3.15 | 0.53 | 13,200 |
| SS316 | Size ØCable (inch) | ØA (inch) | B (inch) | ØD (inch) | L (inch) | L1 (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 67803418 | 1/8" | 0.20 | 0.28 | 0.25 | 2.66 | 1.50 | 0.04 | 686 |
| 67803432 | 5/32" | 0.24 | 0.31 | 0.30 | 2.87 | 1.77 | 0.06 | 990 |
