Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Surface Treatment: Electro polished

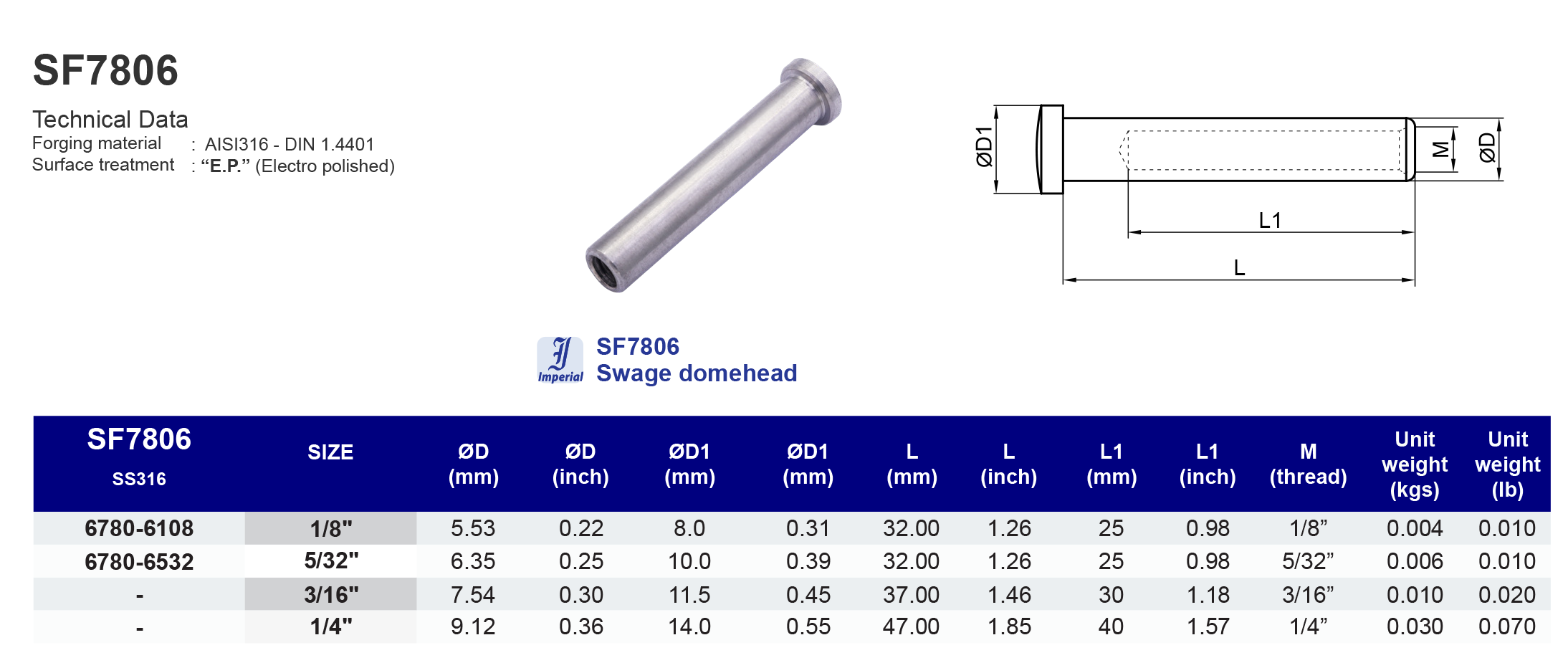

Model
SF7806

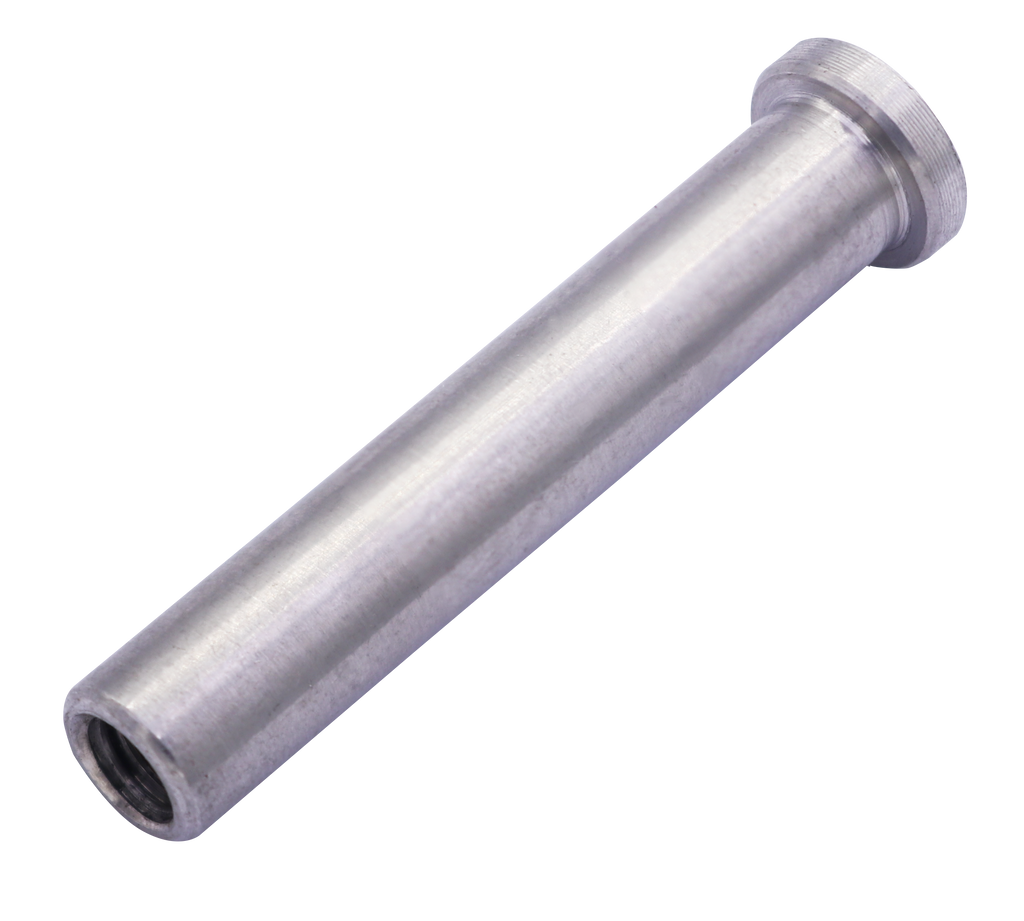

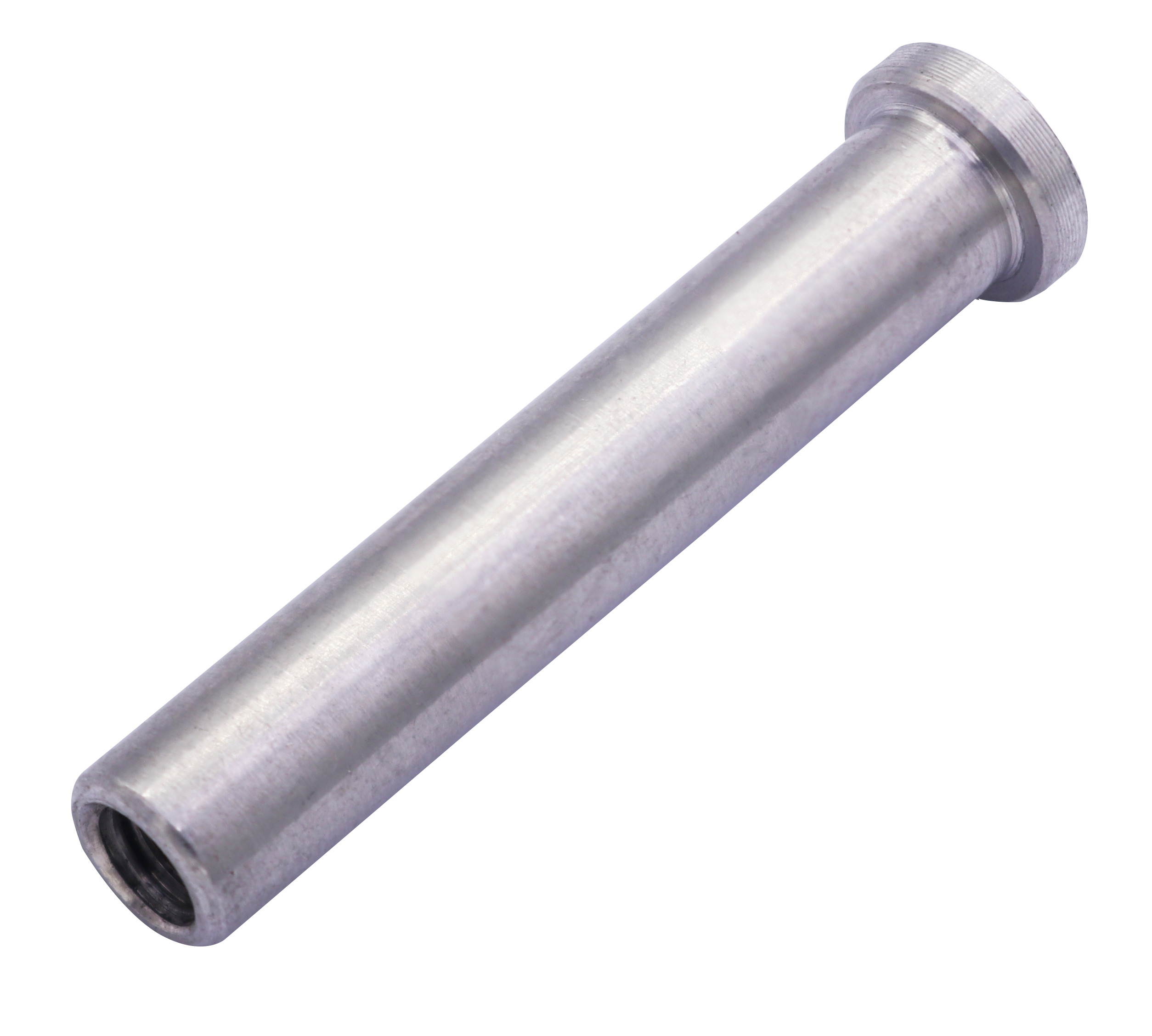

Swage domehead
316 ss
| SS316 | Size | ØD(mm) | ØD1(mm) | L(mm) | L1(mm) | M(thread) | Weight(kgs) |
|---|---|---|---|---|---|---|---|
| 67806108 | 1/8" | 5.33 | 7.87 | 34.8 | 24.89 | 1/8" | 0.004 |
| 67806532 | 5/32" | 6.35 | 9.91 | 34.8 | 24.89 | 5/32" | 0.006 |
| 67806316 | 3/16" | 7.87 | 11.43 | 39.88 | 29.97 | 3/16" | 0.010 |
| 67806104 | 1/4" | 10.92 | 13.97 | 44.96 | 39.88 | 1/4" | 0.030 |
| SS316 | Size | ØD(inch) | ØD1(inch) | L(inch) | L1(inch) | M(thread) | Weight(lb) |
|---|---|---|---|---|---|---|---|
| 67806108 | 1/8" | 0.21 | 0.31 | 1.37 | 0.98 | 1/8" | 0.040 |
| 67806532 | 5/32" | 0.25 | 0.39 | 1.37 | 0.98 | 5/32" | 0.040 |
| 67806316 | 3/16" | 0.31 | 0.45 | 1.57 | 1.18 | 3/16" | 0.020 |
| 67806104 | 1/4" | 0.43 | 0.55 | 1.77 | 1.57 | 1/4" | 0.070 |
