Description
Technical Data:
Stamping Material:
AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production:
SF8240 - Sheave - Nylon
Block - Sheet
Rivet - Pipe
Surface Treatment:
Matte finished / Passivated

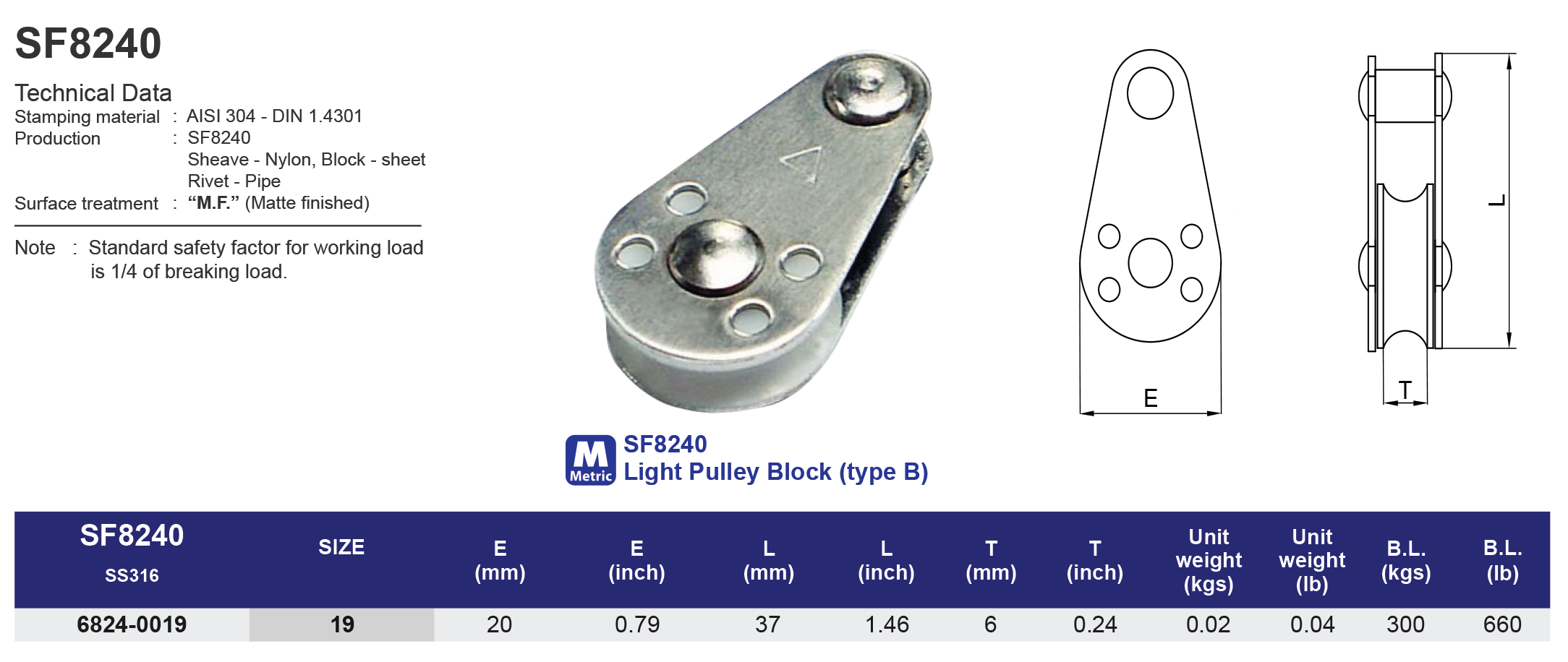

Model
SF8240

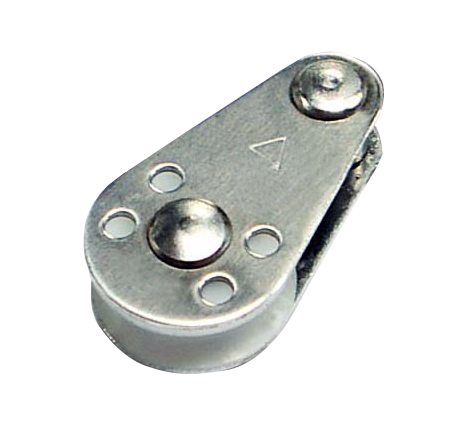

Light Pulley Block (type B)
316 ss
| SS316 | Size | E(mm) | L(mm) | T(mm) | Weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 68240019 | 19 | 20 | 37 | 6 | 0.02 | 300 |
| SS316 | Size | Einch) | L(inch) | T(inch) | Weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 68240019 | 19 | 0.79 | 1.46 | 0.24 | 0.04 | 165 |
