SF8253 Pulley block (type L) - 304
SF8253 Pulley block (type L) - 304
SF8253 Pulley block (type L) - 304
Roll over image to zoom in Click on image to zoom
SF8253 Pulley block (type L) - 304SF8253 Pulley block (type L) - 304SF8253 Pulley block (type L) - 304

SF8253 Pulley block (type L) - 304

SKU: 48253025
Size: 25mm
Price:

Login to view the price.

Stock:
Login to view stock.
Log in to Add to Cart

Description

Technical Data:
Stamping Material : AISI304 - DIN 1.4301
Production: SF8253 - Sheave - Nylon
                                   Block - Sheet
                                   Rivet - Pin
Surface Treatment : “M.F.” (Matte finished)                                                                              Note : Standard safety factor for working load
is 1/4 of breaking load.

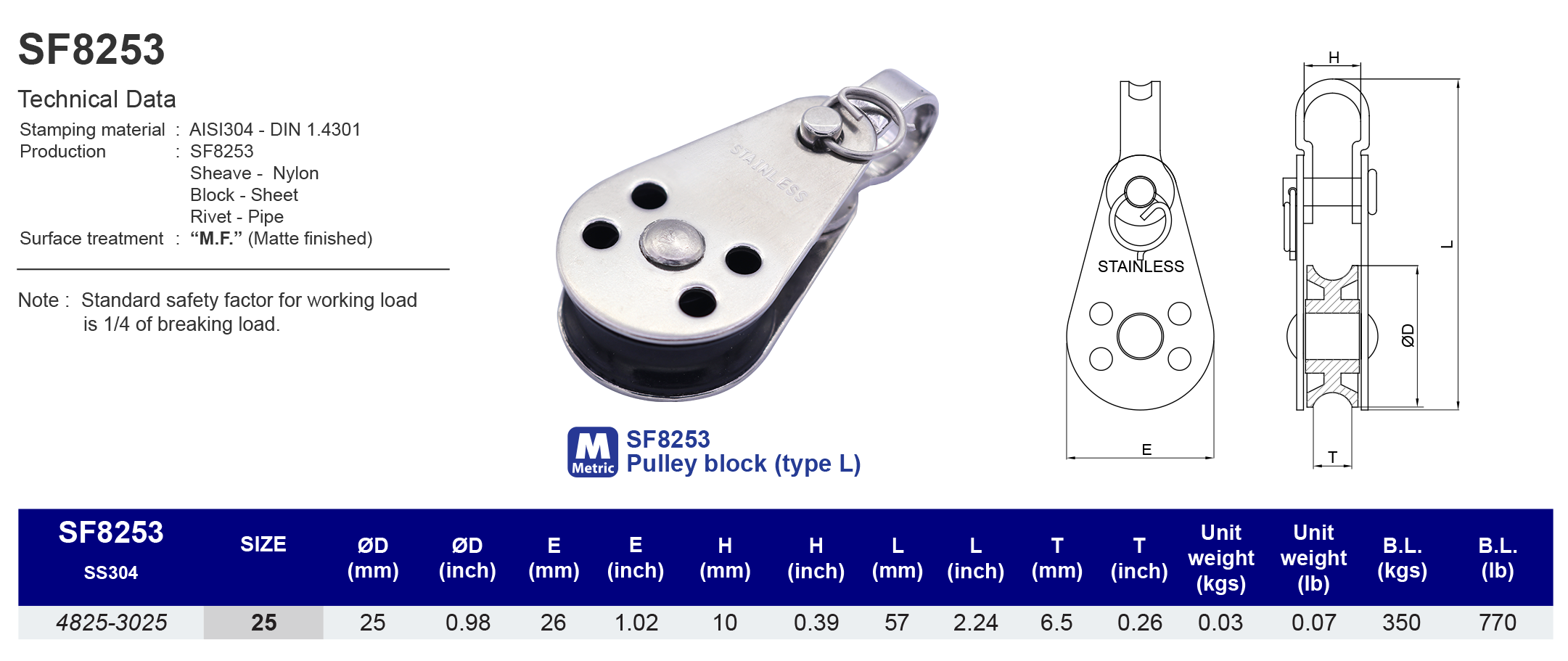

DATA SHEET DOWNLOAD

Model

SF8253

Pulley block (type L)
304 ss

SF8253drawing

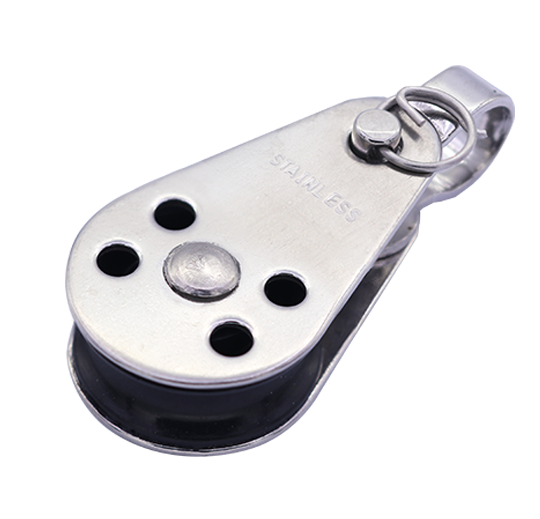

SF8253 image
SS304SIZEØD (mm)E (mm)H (mm)L (mm)T (mm)Unit weight (kgs)B.L. (kgs)
4825302525252610576.50.03350
SS304SIZEØD (inch)E (inch)H (inch)L (inch)T (inch)Unit weight (lb)B.L. (lb)
482530251"0.981.020.392.240.260.07770
