Description
Technical Data:
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8256 - Sheave - Nylon
Block - Sheet
Rivet - Pin
Surface Treatment:
Matte finished / Passivated

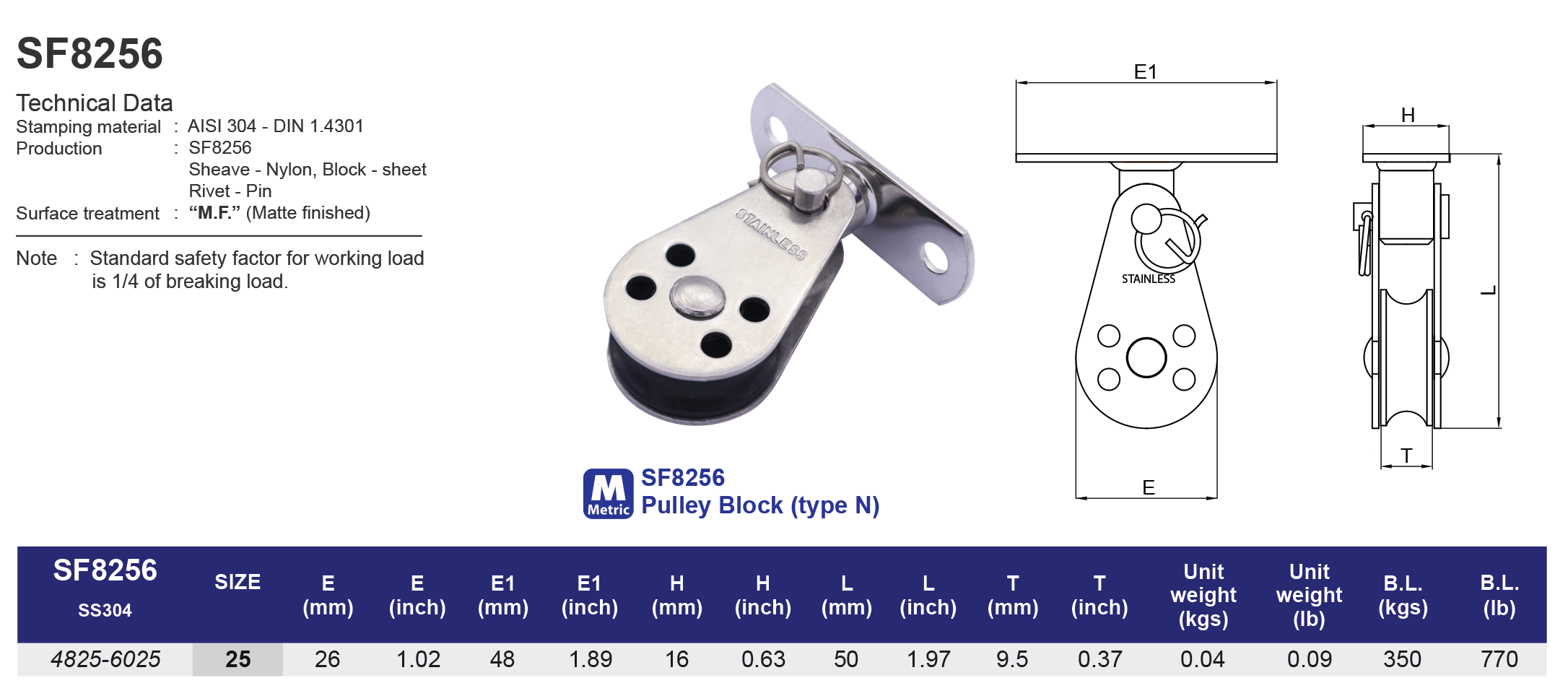

Model
SF8256

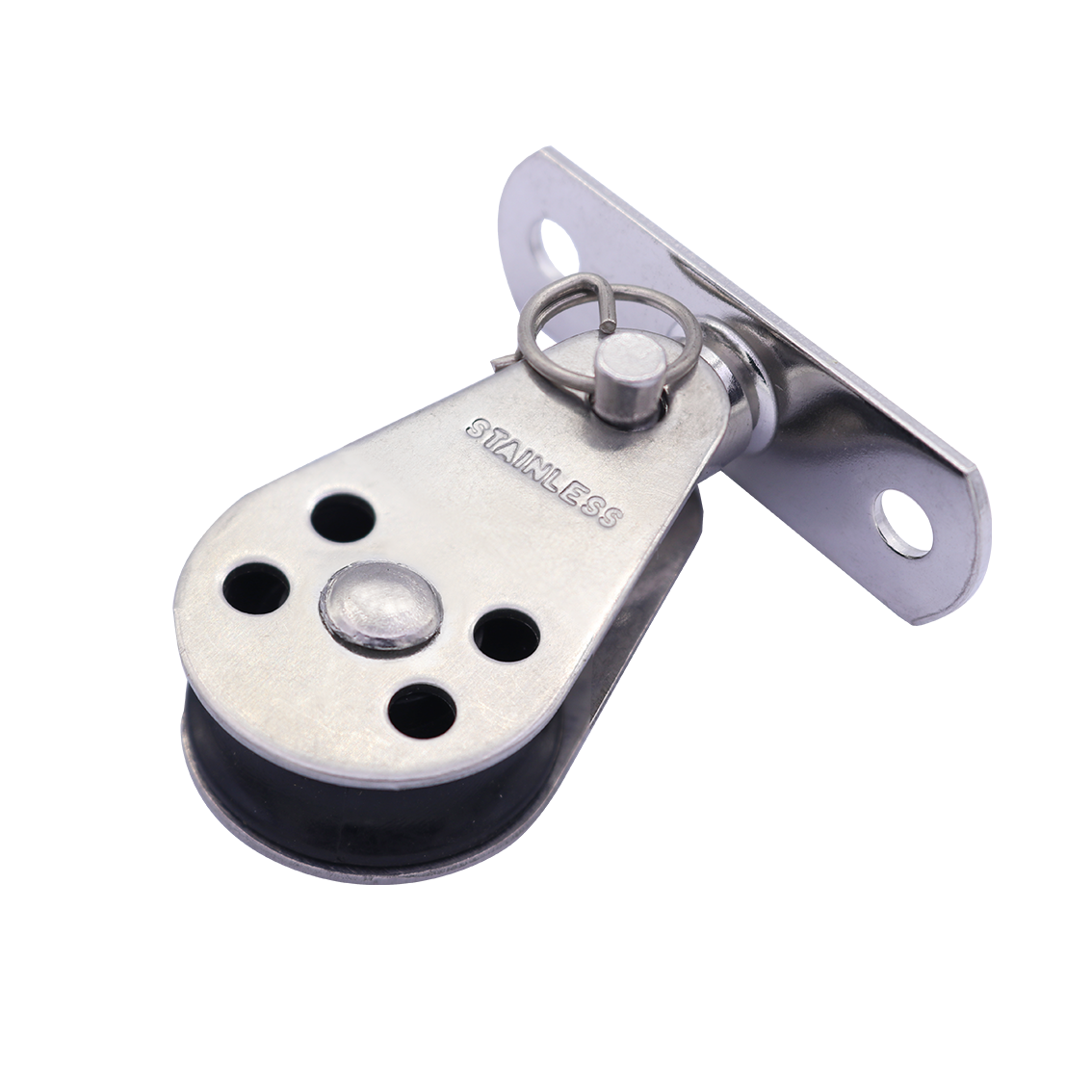

Pulley Block (type N)
304 ss
| SS304 | Size | E(mm) | E1mm) | H(mm) | L(mm) | T(mm) | Weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|---|
| 48256025 | 25 | 26 | 48 | 16 | 50 | 6.5 | 0.04 | 350 |
| SS304 | Size | E(inch) | E1(inch) | H(inch) | L(inch) | T(inch) | Weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|---|---|
| 48256025 | 25 | 1.02 | 1.89 | 0.63 | 1.97 | 0.26 | 0.09 | 193 |
