Description
Technical Data:
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8257 - Sheave - Nylon
Block - Sheet
Rivet - Pin
Surface Treatment:
Matte finished / Passivated

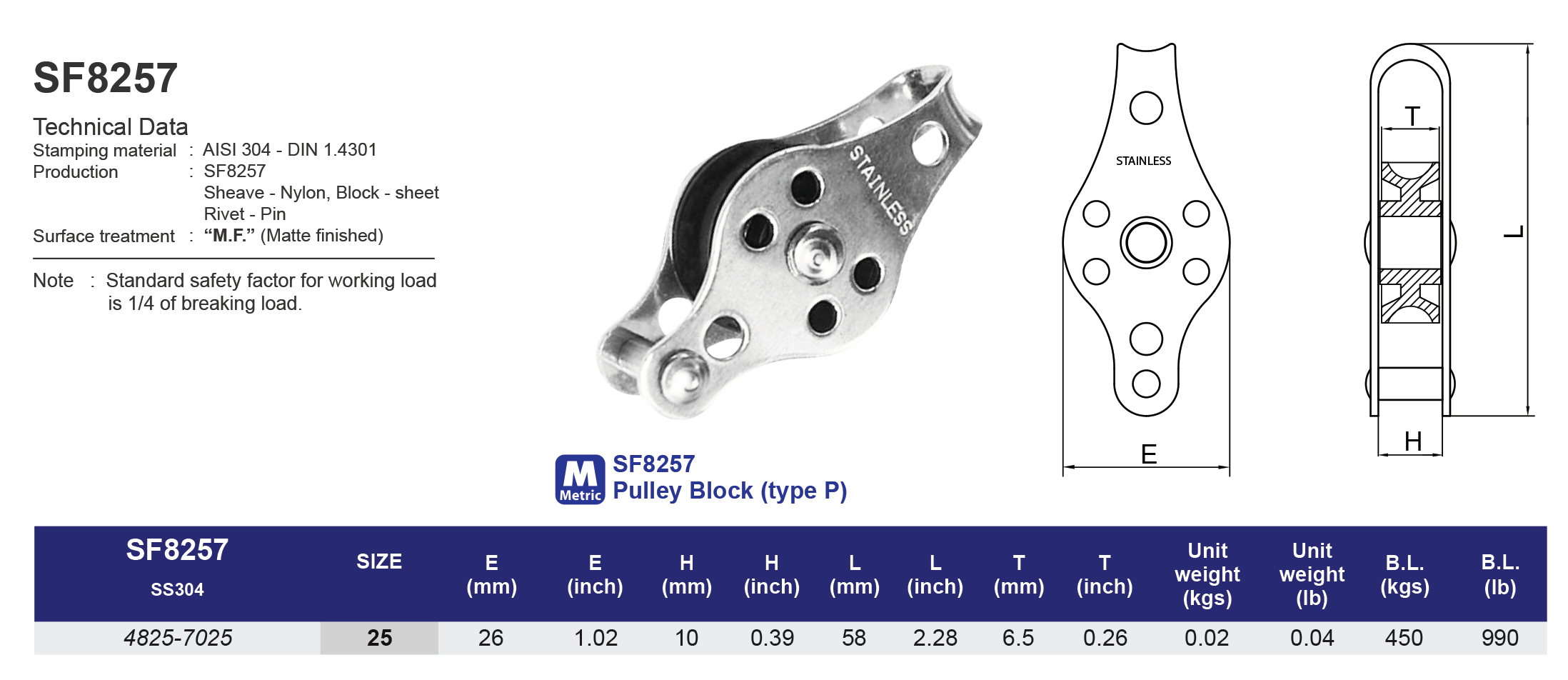

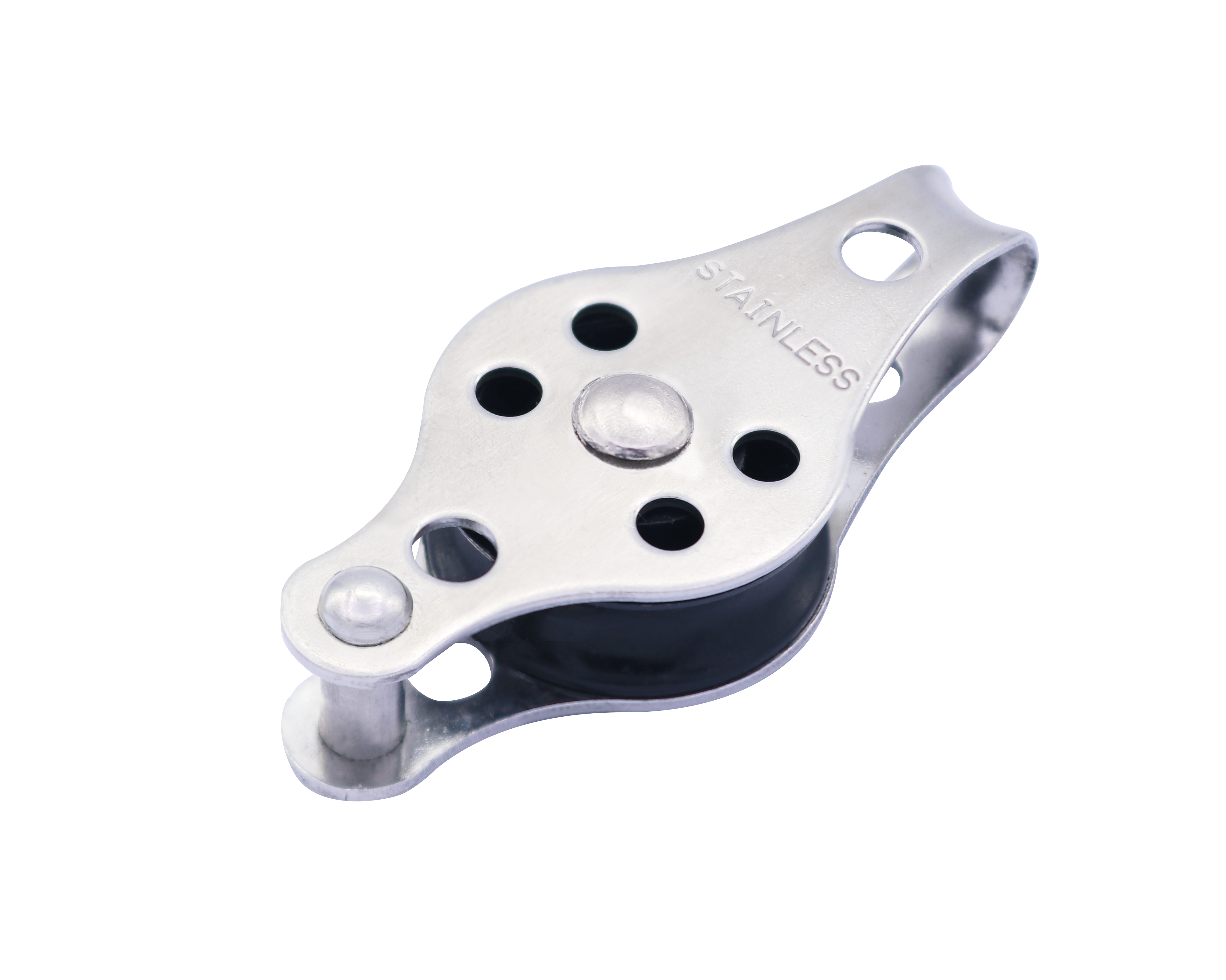

Model
SF8257
Pulley Block (type P)
304 ss
| SS304 | Size | E(mm) | H(mm) | L(mm) | T(mm) | Weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|
| 48257025 | 25 | 26 | 10 | 58 | 6.5 | 0.02 | 450 |
| SS304 | Size | E(inch) | H(inch) | L(inch) | T(inch) | Weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|---|
| 48257025 | 25 | 1.02 | 0.39 | 2.28 | 0.26 | 0.04 | 248 |
