SF8257P Pulley block (type Q) - 304

SKU: 48257125

Size: 25mm
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8257P - Sheave - Nylon
Block - Sheet
Rivet - Pipe
Surface Treatment:
“M.F.” (Matte finished)

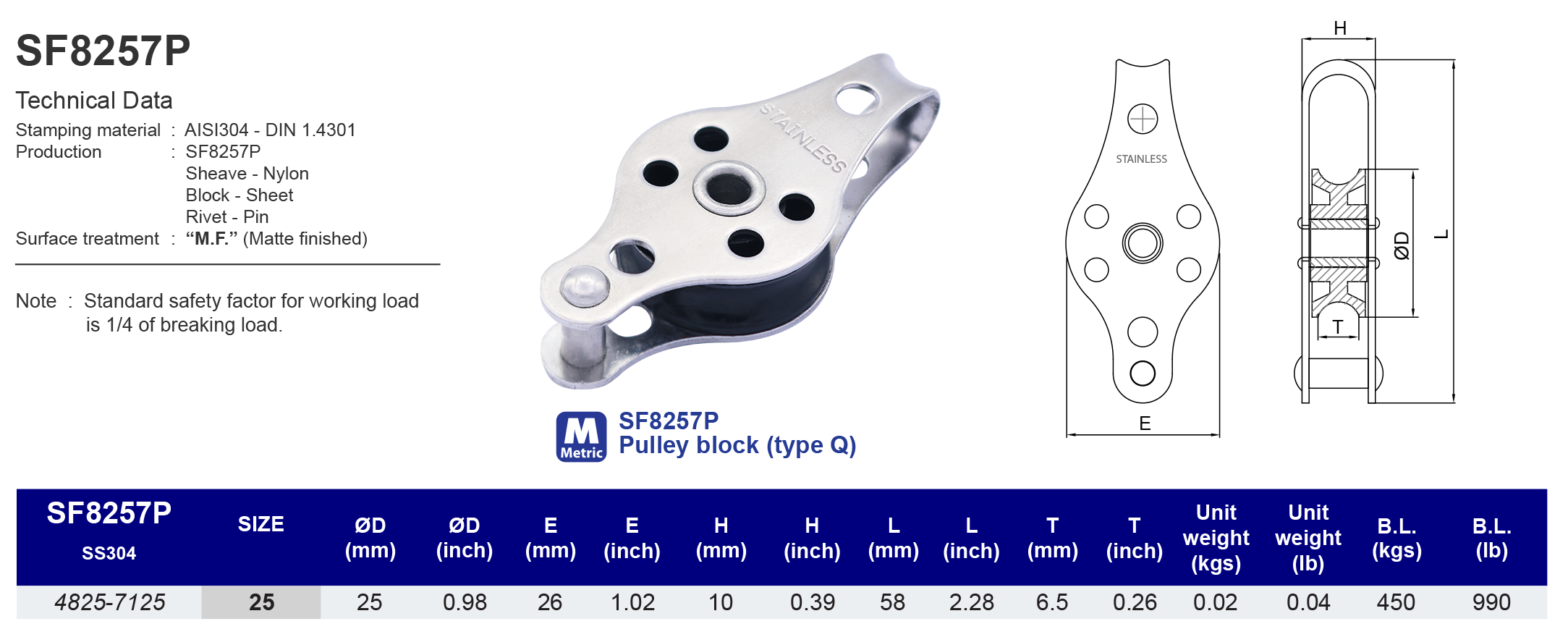

DATA SHEET DOWNLOAD

Model

SF8257P

Pulley block (type Q)
304 ss

SF8257Pdrawing

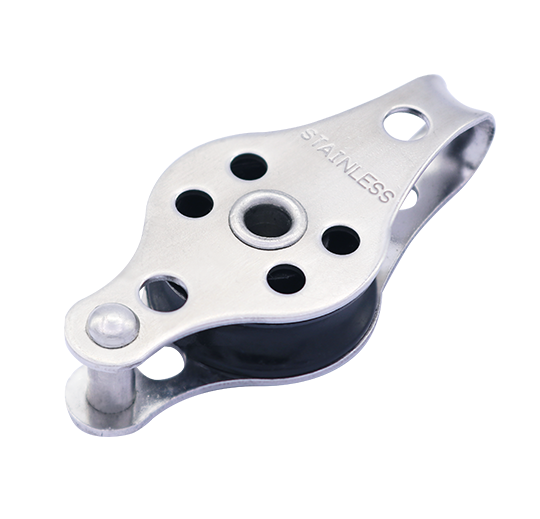

SF8257P image
SS304SIZEØD (mm)E (mm)H (mm)L (mm)T (mm)Unit weight (kgs)B.L. (kgs)
4825712525252610586.50.02450
SS304SIZEØD (inch)E (inch)H (inch)L (inch)T (inch)Unit weight (lb)B.L. (lb)
482571251"0.981.020.392.280.260.04990
