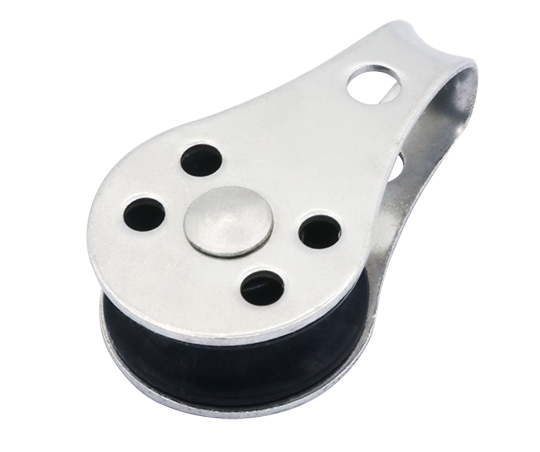

SF8258 Pulley block (type F) - 304

SKU: 48258025

Size: 25mm
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8258 - Sheave - Nylon
Block - Sheet
Rivet - Pin
Surface Treatment:
“M.F.” (Matte finished)

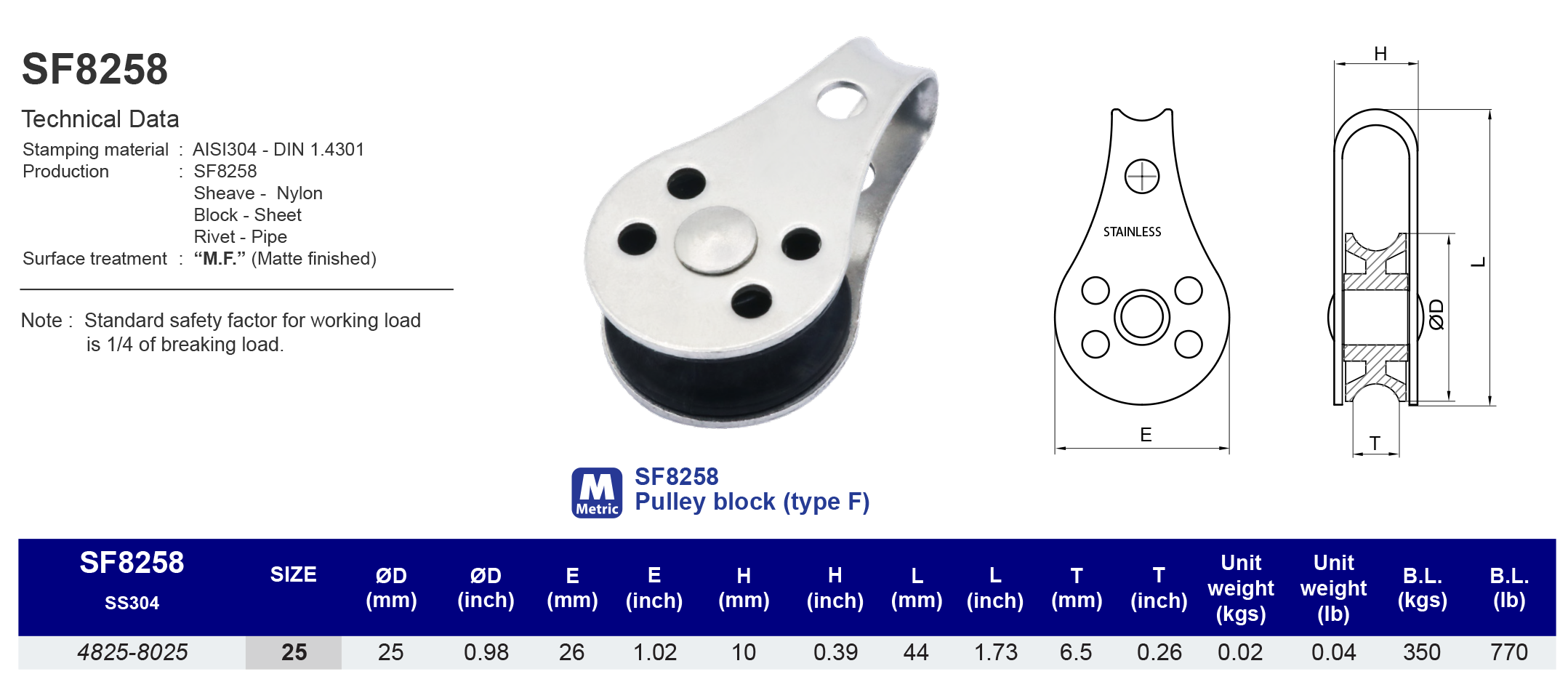

DATA SHEET DOWNLOAD

Model

SF8258

Pulley block (type F)
304 ss

SF8258drawing
SF8258 image
SS304SIZEØD (mm)E (mm)H (mm)L (mm)T (mm)Unit weight (kgs)B.L. (kgs)
4825802525252610446.50.02350
SS304SIZEØD (inch)E (inch)H (inch)L (inch)T (inch)Unit weight (lb)B.L. (lb)
482580251"0.981.020.391.730.260.04770
