Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8340 - Angle - Stamped
Surface Treatment:
Electro polished / Passivated
Model

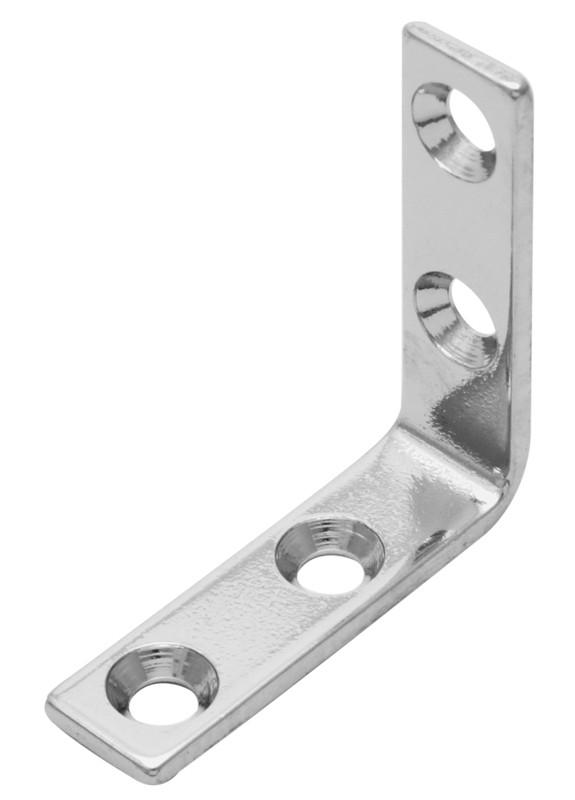

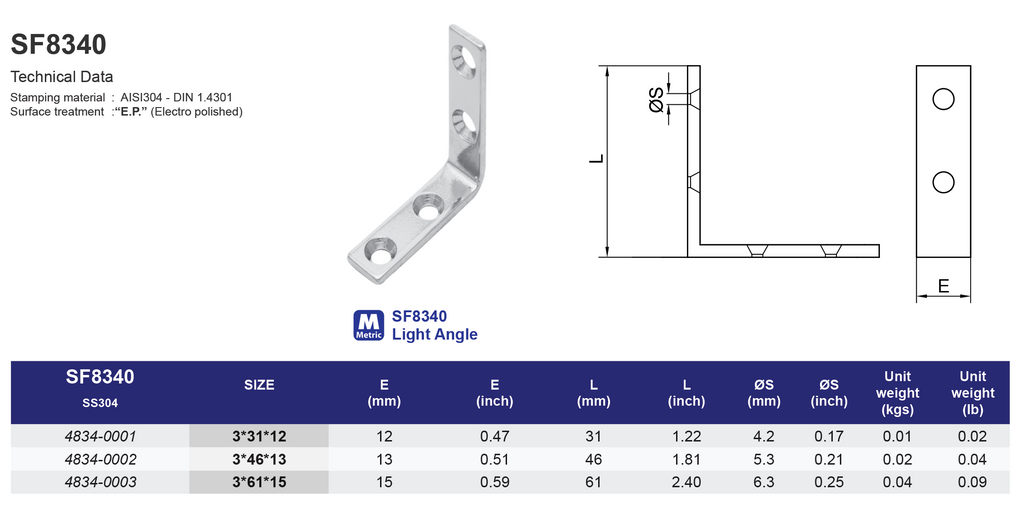

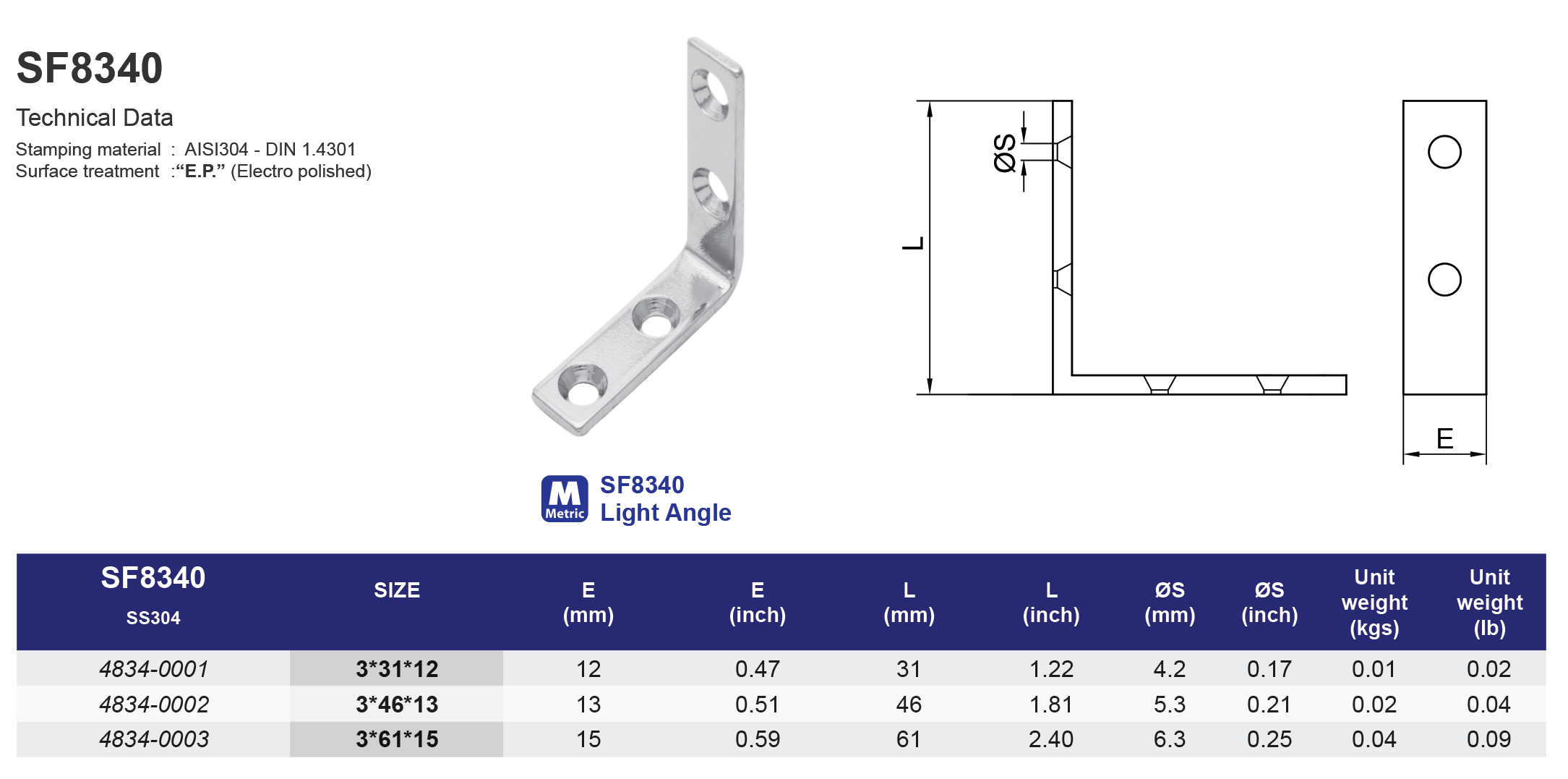

SF8340
Light Angle
304 ss
| SS304 | Size | E(mm) | L(mm) | ØS(mm) | Weight(kgs) |
|---|---|---|---|---|---|
| 48340001 | 3*31*12 | 12 | 31 | 4.2 | 0.01 |
| 48340002 | 3*46*13 | 13 | 46 | 5.3 | 0.02 |
| 48340003 | 3*61*15 | 15 | 61 | 6.3 | 0.04 |
| SS304 | Size | E(inch) | L(inch) | ØS(inch) | Weight(Ib) |
|---|---|---|---|---|---|
| 48340001 | 3*31*12 | 0.47 | 1.22 | 0.17 | 0.02 |
| 48340002 | 3*46*13 | 0.51 | 1.81 | 0.21 | 0.04 |
| 48340003 | 3*61*15 | 0.59 | 2.40 | 0.25 | 0.09 |
