Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8341 - Angle - Stamped
Surface Treatment:
Electro polished / Passivated

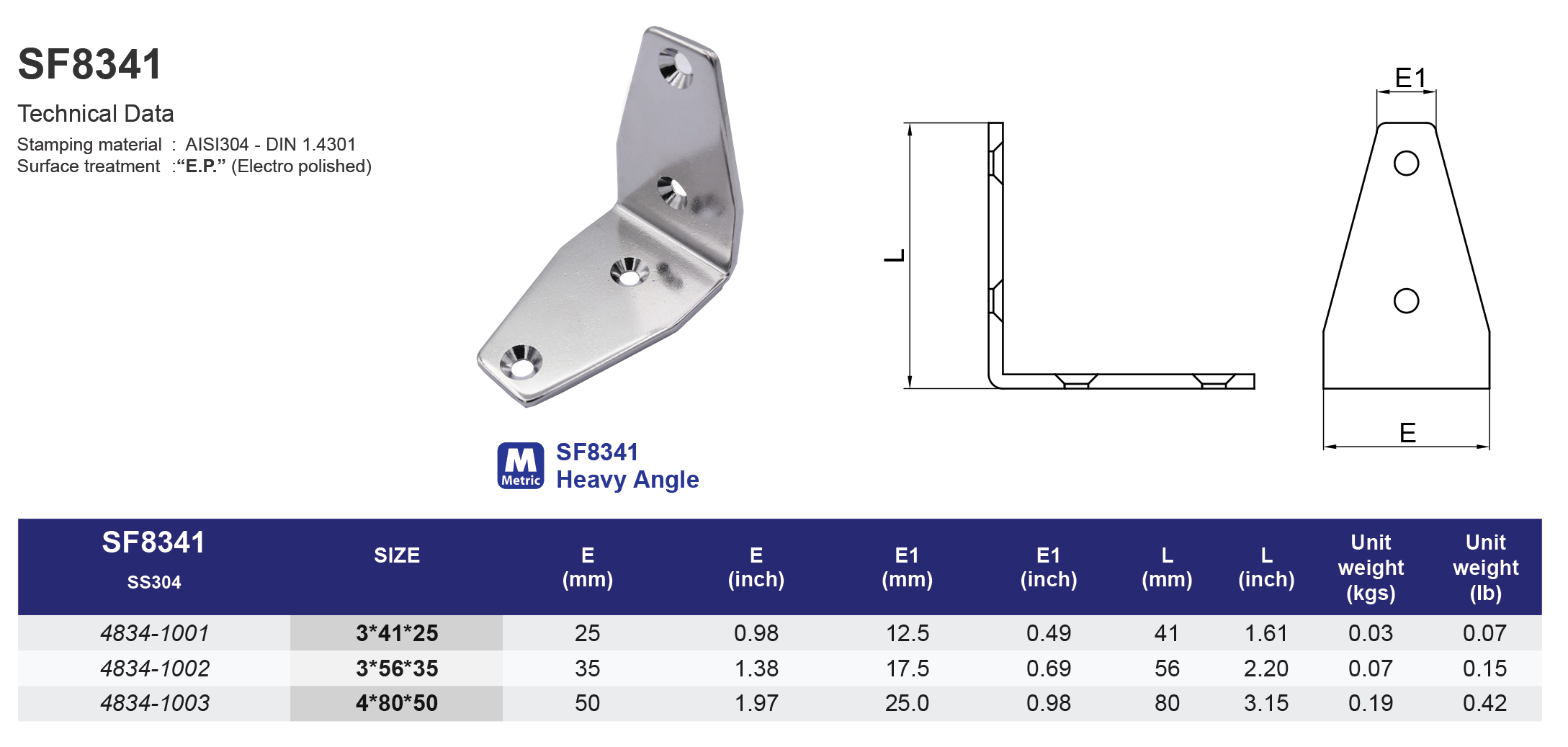

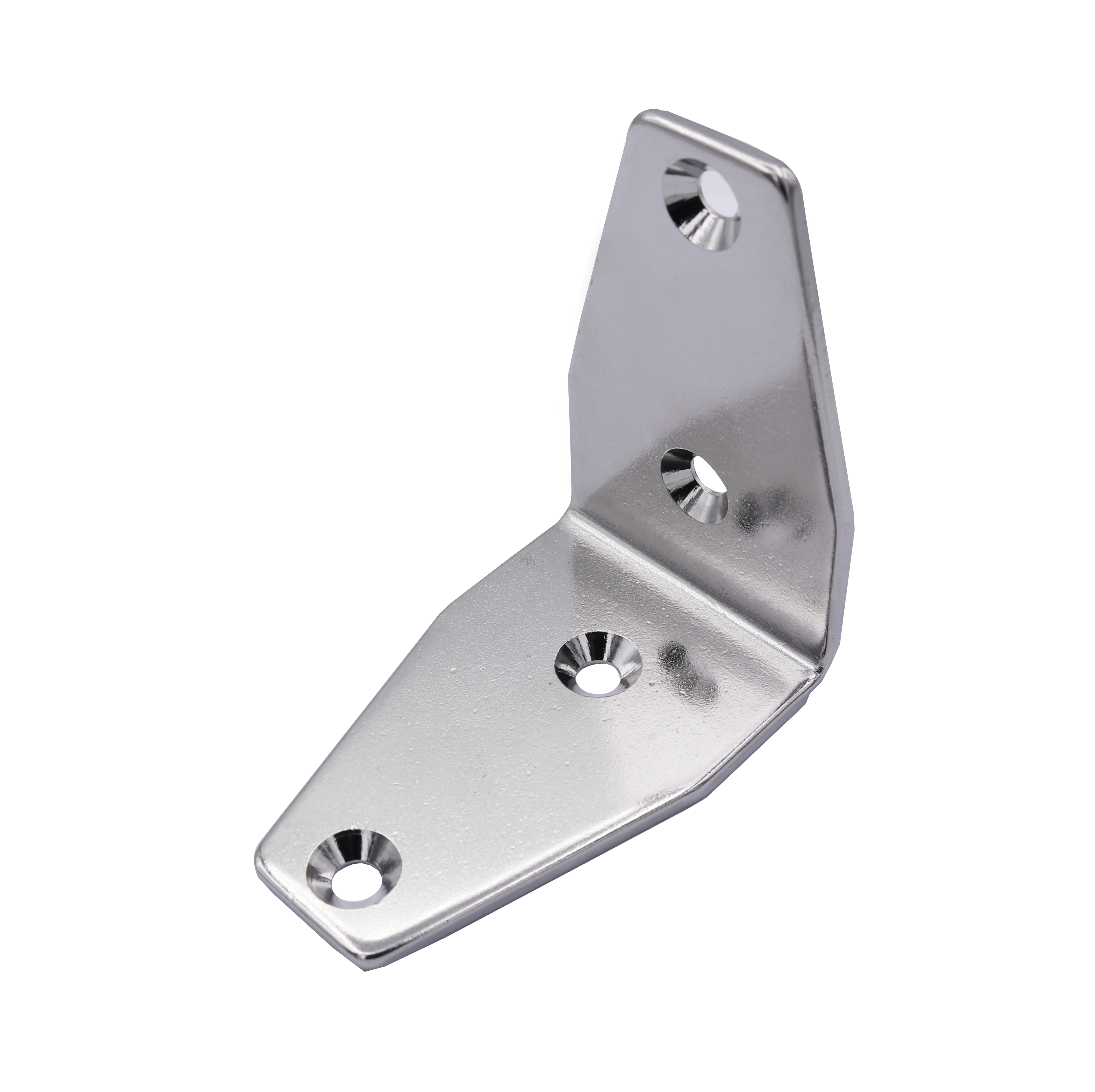

Model
SF8341
Heavy Angle
304 ss
| SS304 | Size | E(mm) | E1(mm) | L(mm) | Weight(kgs) |
|---|---|---|---|---|---|
| 48341001 | 3*41*25 | 25 | 12.5 | 41 | 0.03 |
| 48341002 | 3*56*35 | 35 | 17.5 | 56 | 0.07 |
| 48341003 | 4*80*50 | 50 | 25 | 80 | 0.19 |
| SS304 | Size | E(inch) | E1(inch) | L(inch) | Weight(Ib) |
|---|---|---|---|---|---|
| 48341001 | 3*41*25 | 0.98 | 0.49 | 1.61 | 0.07 |
| 48341002 | 3*56*35 | 1.38 | 0.69 | 2.20 | 0.15 |
| 48341003 | 4*80*50 | 1.97 | 0.98 | 3.15 | 0.42 |
