Description

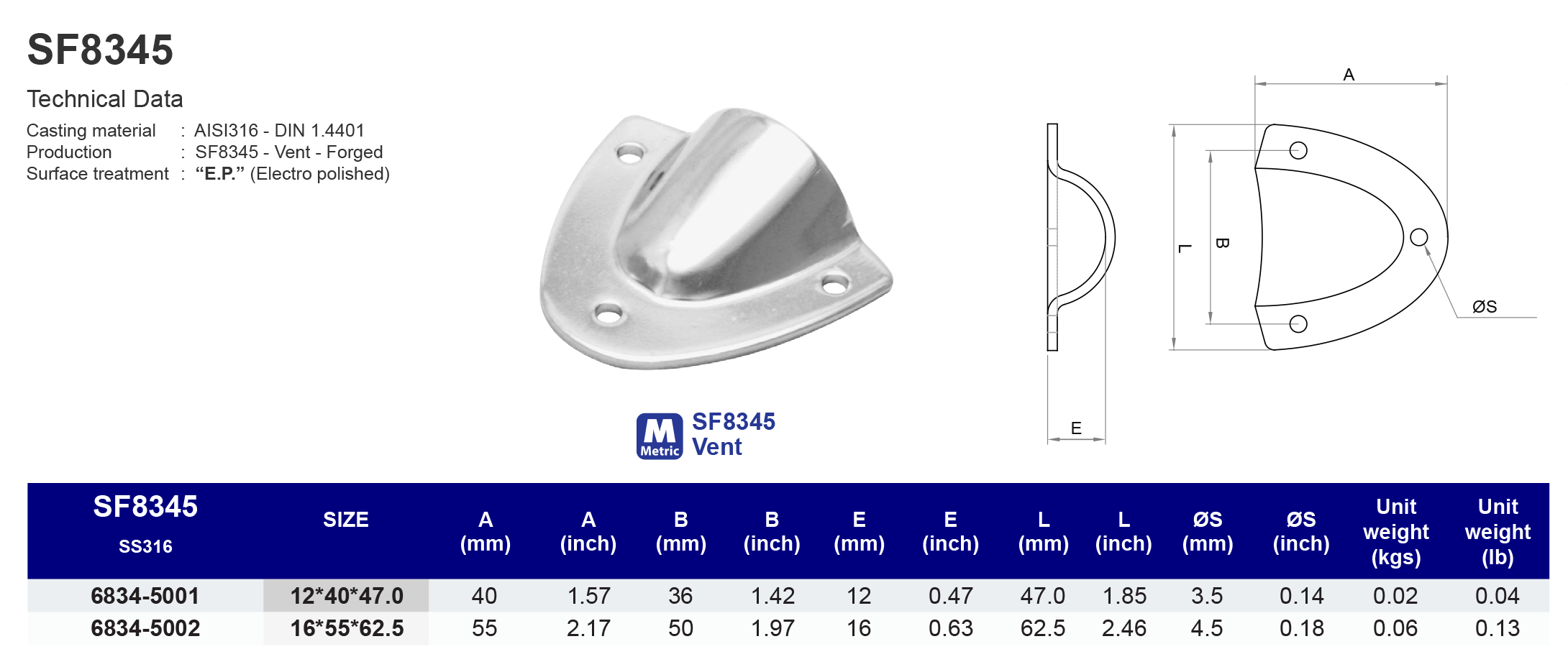

Technical Data:
Forging Material: AISI316 - DIN 1.4401

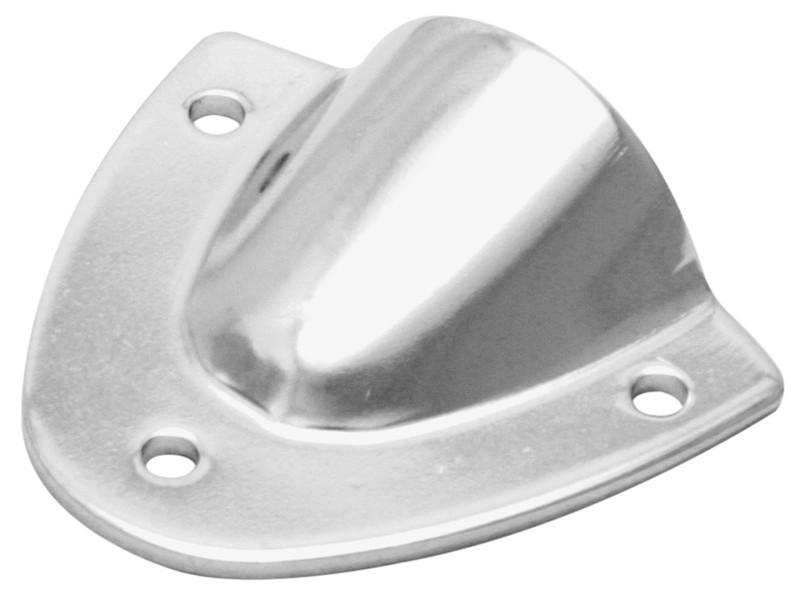

Production: SF8345 - Vent - Forged
Surface Treatment:“E.P.” (Electro polished) DATA SHEET DOWNLOAD
Model
SF8345
Vent
316 ss
SS316 | SIZE | A (mm) | B (mm) | E (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
---|---|---|---|---|---|---|---|
68345001 | 12*40*47.0 | 40 | 36 | 12 | 47 | 3.5 | 0.02 |
68345002 | 16*55*62.5 | 55 | 50 | 16 | 62.5 | 4.5 | 0.06 |
SS316 | SIZE (inch) | A (inch) | B (inch) | E (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
---|---|---|---|---|---|---|---|
68345001 | 0.47*1.57*1.85 | 1.57 | 1.42 | 0.47 | 1.85 | 0.14 | 0.04 |
68345002 | 0.63*2.17*2.46 | 2.17 | 1.97 | 0.63 | 2.46 | 0.18 | 0.13 |
