Description

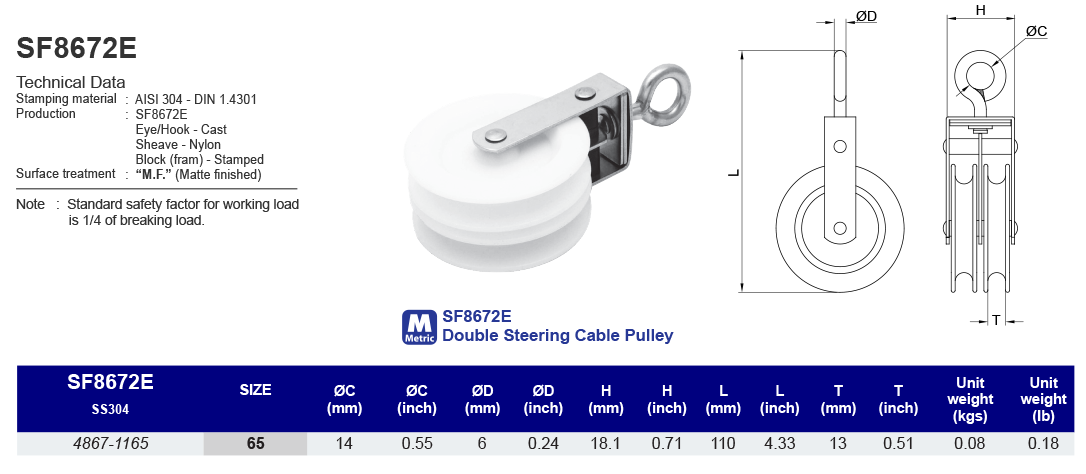

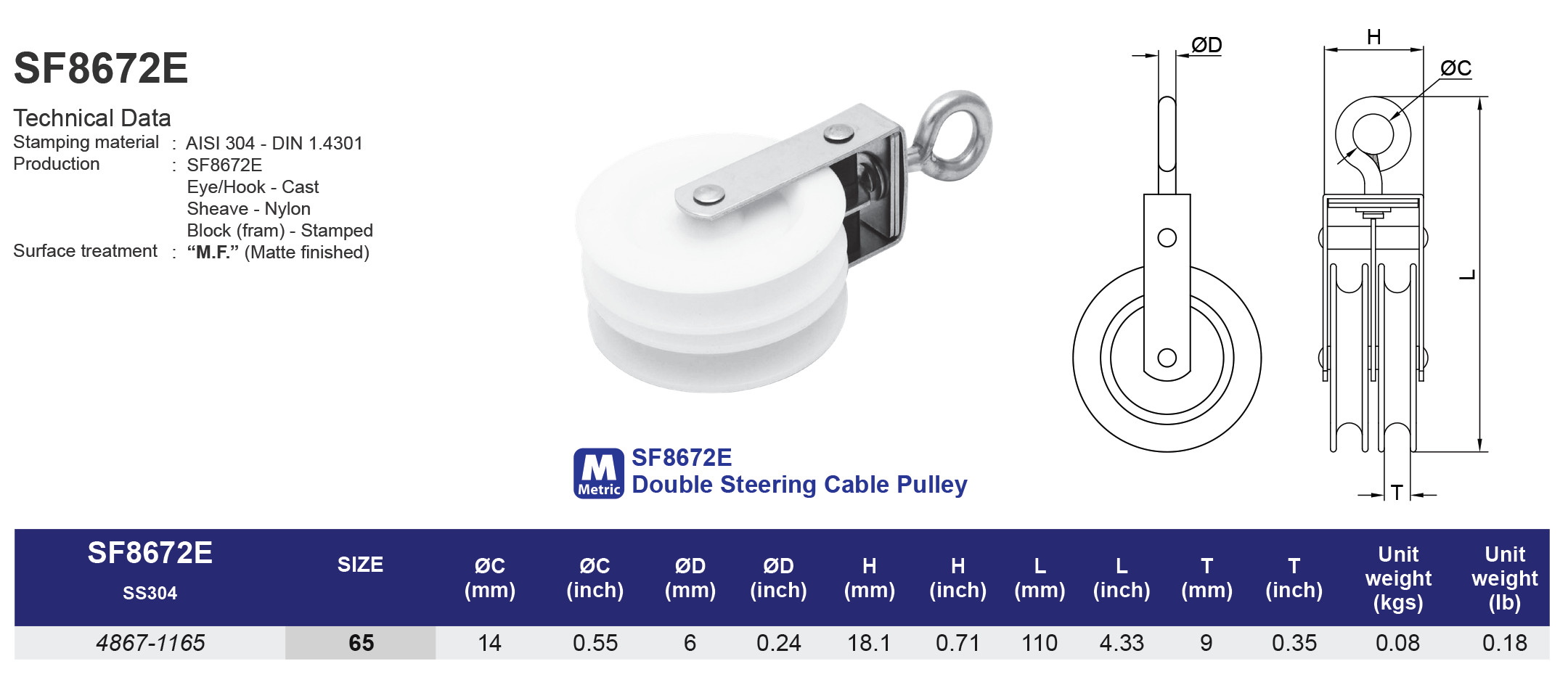

Technical Data:
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8672E - Eye / Hook - Cast
Sheave - Nylon
Block (frame) - Stamped
Surface Treatment:
Matte finished / Passivated
Model
SF8672E

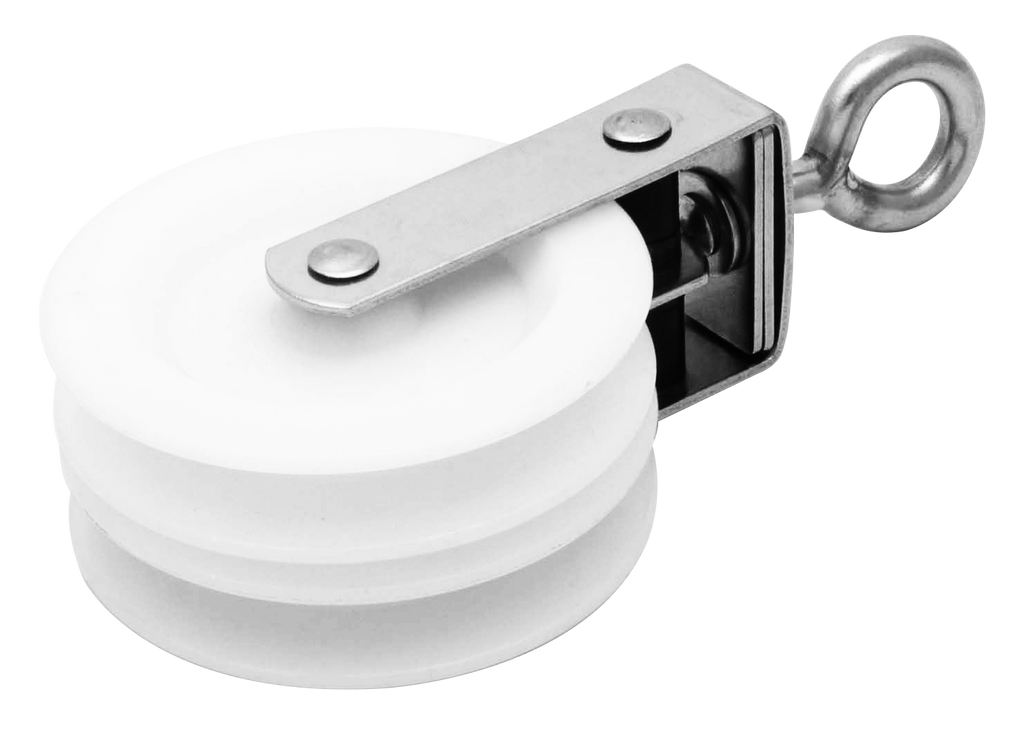

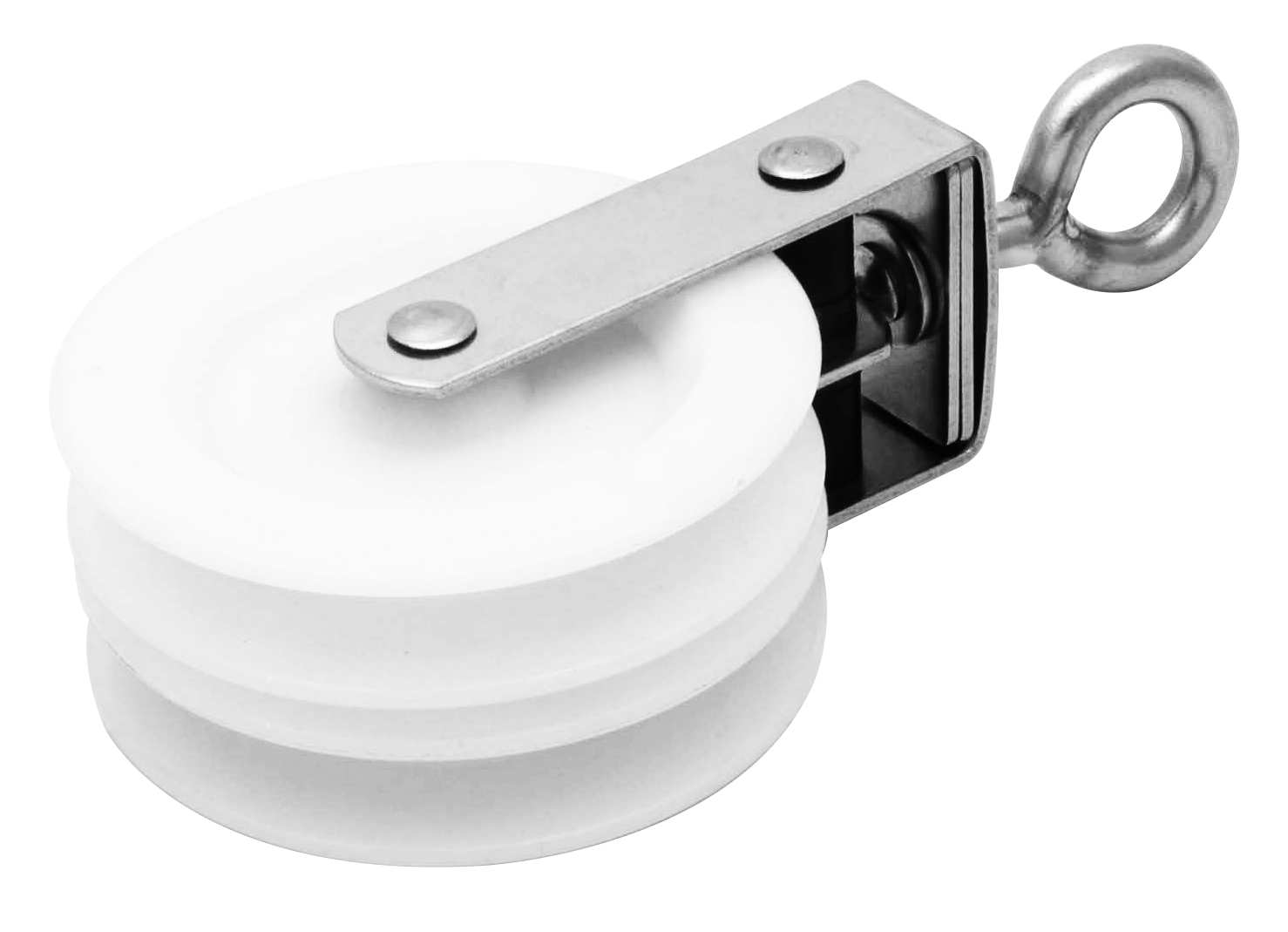

Double Steering Cable Pulley
304 ss
| SS304 | Size | ØC(mm) | ØD(mm) | H(mm) | L(mm) | T(mm) | Unit Weight(kgs) |
|---|---|---|---|---|---|---|---|
| 48671165 | 65 | 14 | 6 | 18.1 | 110 | 13 | 0.08 |
| SS304 | Size | ØC(inch) | ØD(inch) | H(inch) | L(inch) | T(inch) | Unit Weight(Ib) |
|---|---|---|---|---|---|---|---|
| 48671165 | 65 | 0.55 | 0.24 | 0.71 | 4.33 | 0.51 | 0.18 |
