Description
Technical Data:
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8672H - Eye / Hook - Cast
Sheave - Nylon
Block (frame) - Stamped
Surface Treatment:
Matte finished / Passivated

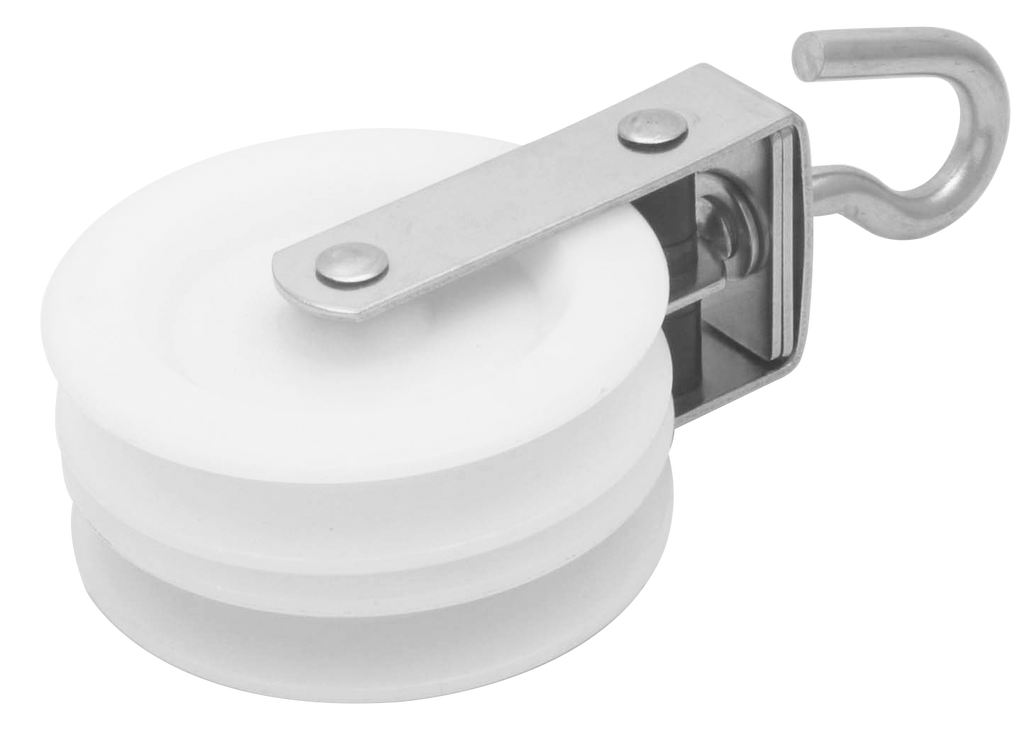

Model
SF8672H

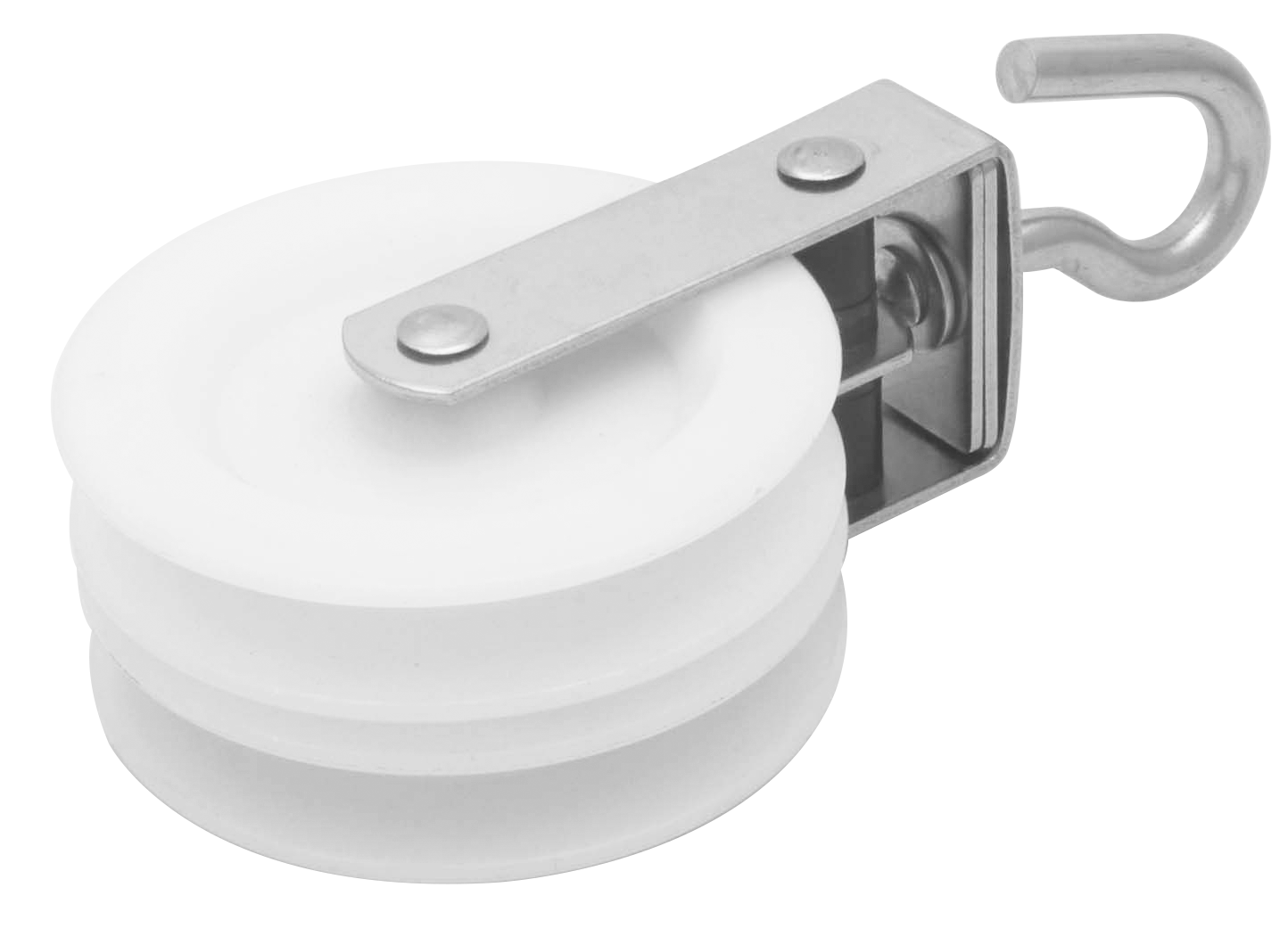

Double Steering Cable Pulley
304 ss

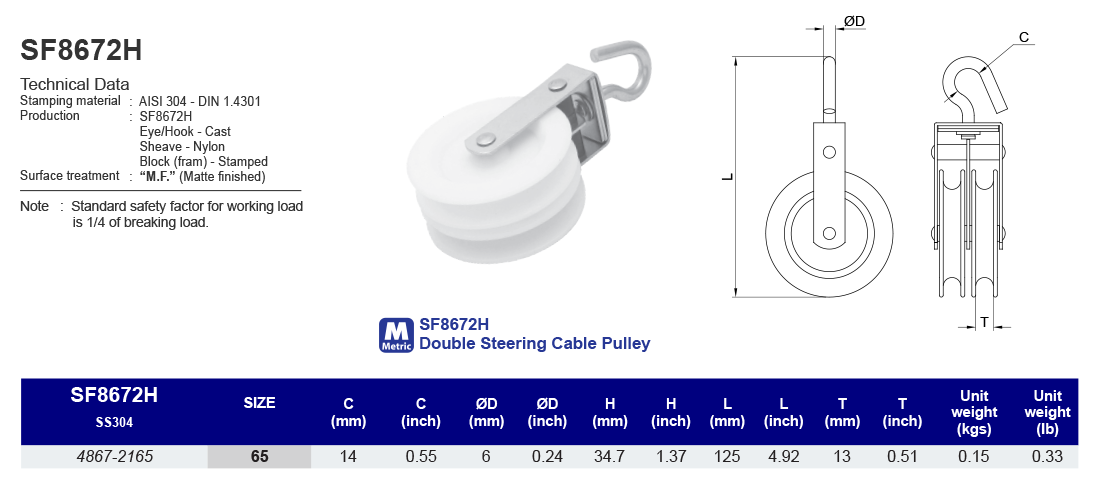

| SS304 | Size | C(mm) | ØD(mm) | H(mm) | L(mm) | T(mm) | Unit Weight (kgs) |
|---|---|---|---|---|---|---|---|
| 48672165 | 65 | 14 | 6 | 34.7 | 125 | 13 | 0.15 |
| SS304 | Size | C(inch) | ØD(inch) | H(inch) | L(inch) | T(inch) | Unit Weight(Ib) |
|---|---|---|---|---|---|---|---|
| 48672165 | 65 | 0.55 | 0.24 | 1.37 | 4.92 | 0.51 | 0.33 |
