Description
Technical Data :
Forging Material : AISI304 - DIN 1.4301
Production : Hook - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

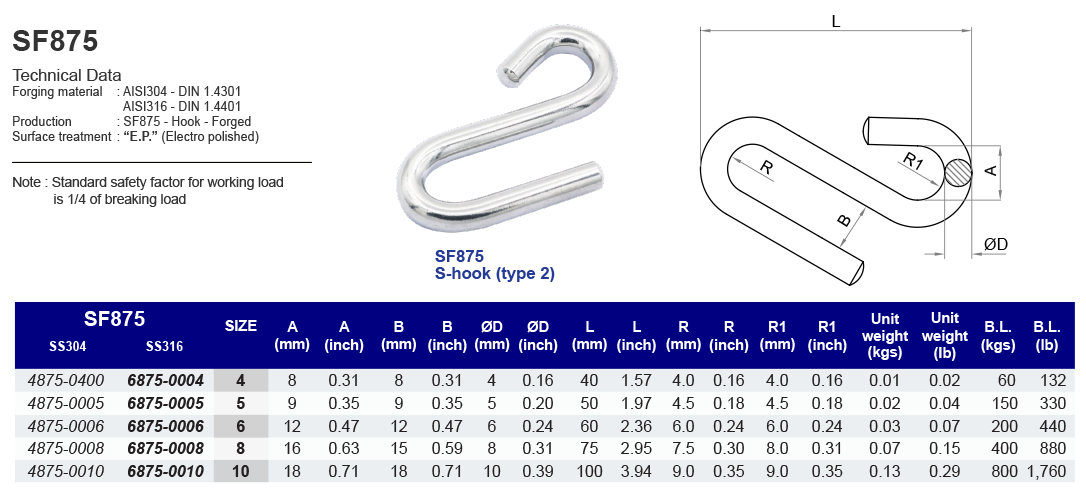

Model

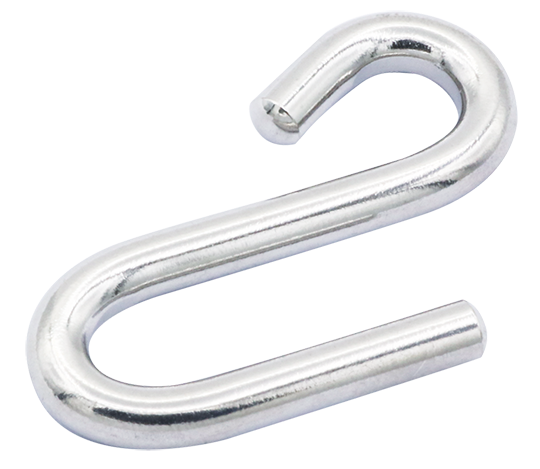

SF875
S-hook (type2)
304 ss
| SS304 | Size | A (mm) | B (mm) | ØD (mm) | L (mm) | R (mm) | R1 (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|---|
| 48750400 | 4 | 8 | 8 | 4 | 40 | 4 | 4 | 0.01 | 60 |
| 48750005 | 5 | 9 | 9 | 5 | 50 | 5 | 4.5 | 0.02 | 150 |
| 48750006 | 6 | 12 | 12 | 6 | 60 | 6 | 6 | 0.03 | 200 |
| 48750008 | 8 | 16 | 15 | 8 | 75 | 7.5 | 8 | 0.07 | 400 |
| 48750010 | 10 | 18 | 18 | 10 | 100 | 9 | 9 | 0.13 | 800 |
| SS304 | Size | A (inch) | B (inch) | ØD (inch) | L (inch) | R (inch) | R1 (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|---|
| 48750400 | 5/32" | 0.31 | 0.31 | 0.16 | 1.57 | 0.16 | 0.16 | 0.02 | 132 |
| 48750005 | 3/16" | 0.35 | 0.35 | 0.20 | 1.97 | 0.18 | 0.18 | 0.04 | 330 |
| 48750006 | 1/4" | 0.47 | 0.47 | 0.24 | 2.36 | 0.24 | 0.24 | 0.07 | 440 |
| 48750008 | 5/16" | 0.63 | 0.59 | 0.31 | 2.95 | 0.30 | 0.31 | 0.15 | 880 |
| 48750010 | 3/8" | 0.71 | 0.71 | 0.39 | 3.94 | 0.35 | 0.35 | 0.29 | 1,760 |
