Description
Technical Data
Forging Material : AISI304 - DIN 1.4301
Production : Hook - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

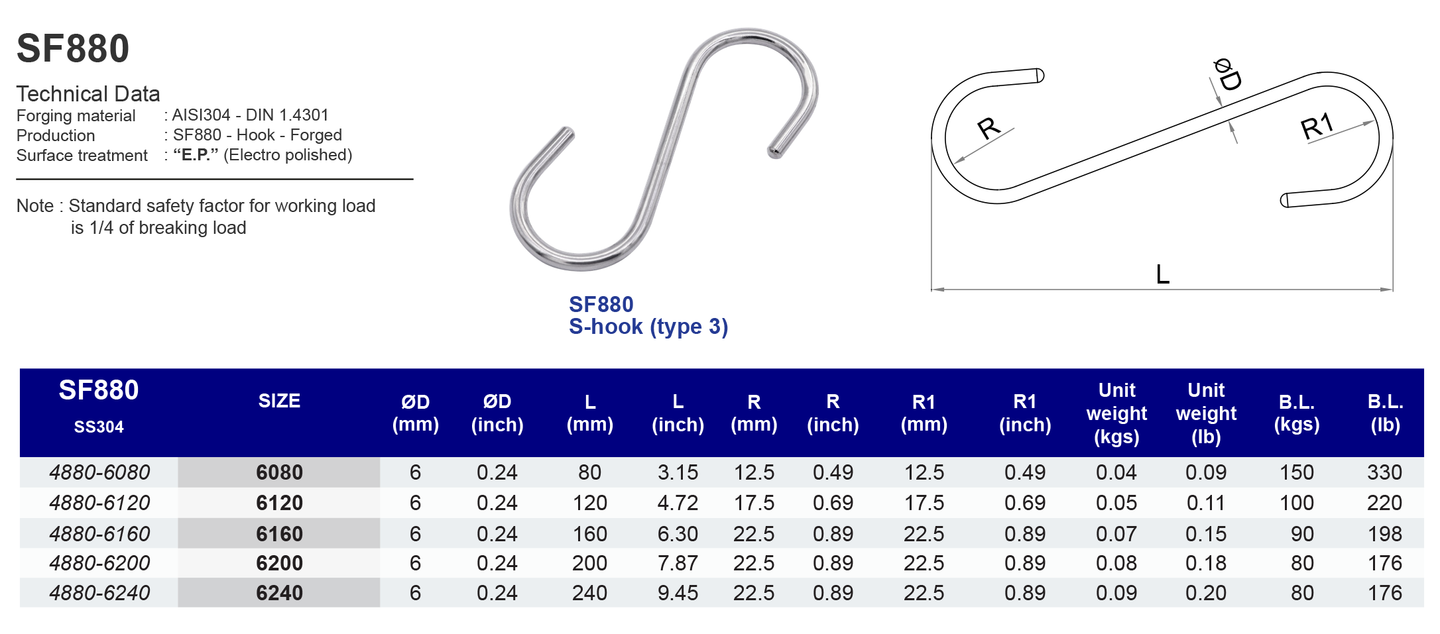

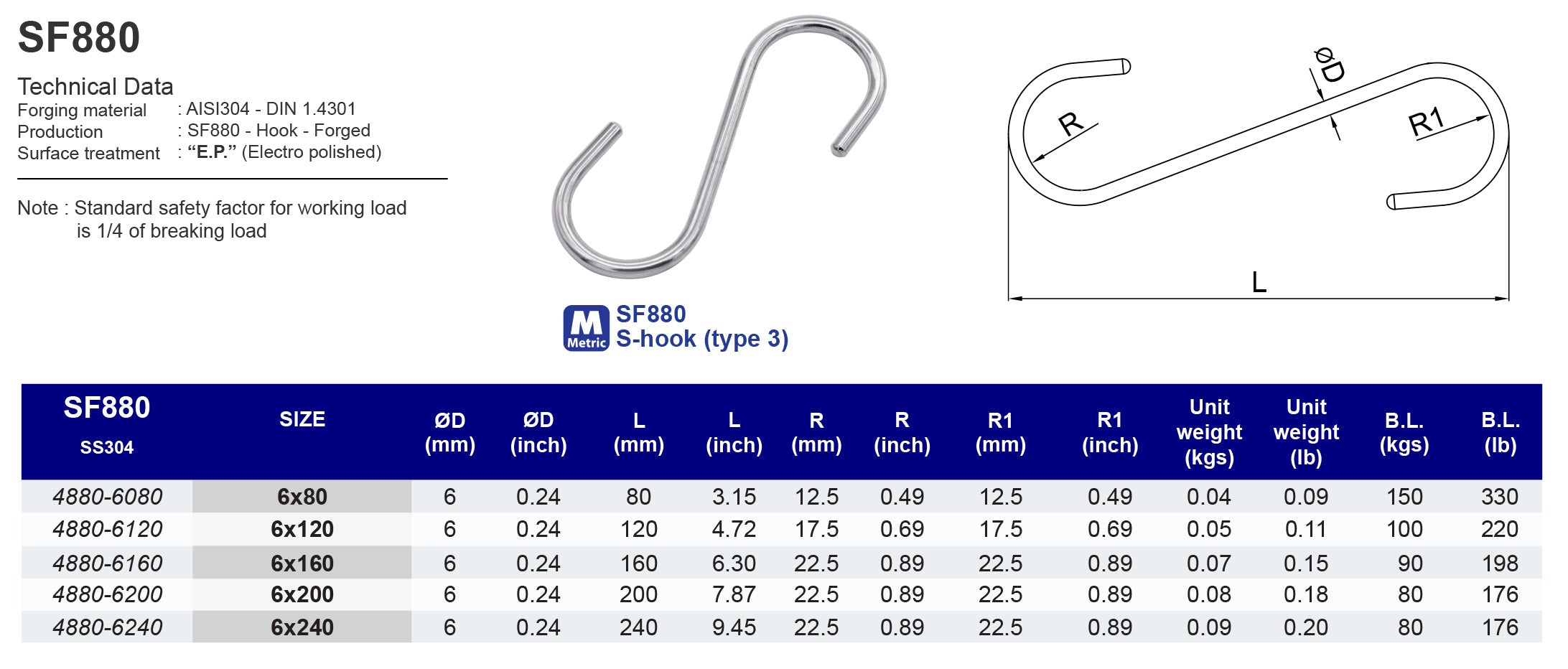

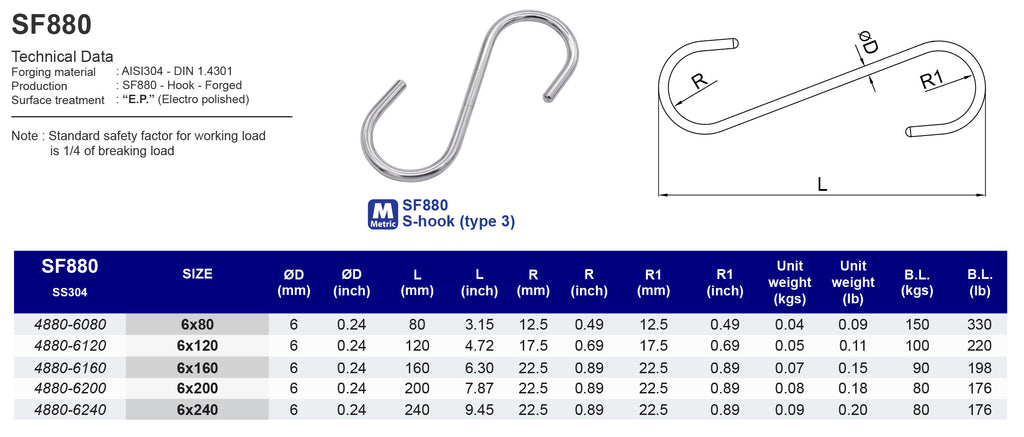

Model
SF880

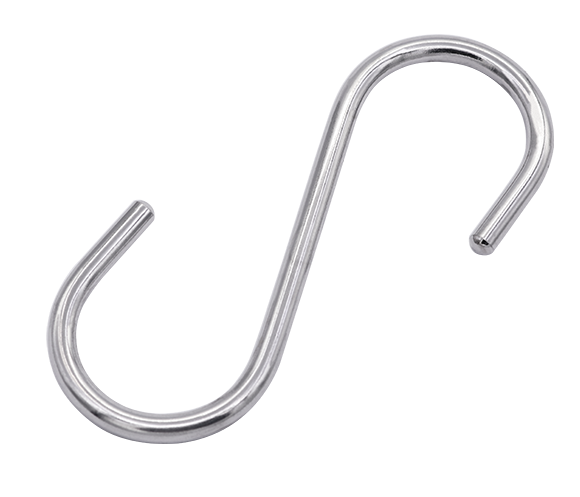

S-hook (type3)
304 ss
| SS304 | Size | ØD (mm) | L (mm) | R (mm) | R1 (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 48806080 | 6080 | 6 | 80 | 12.5 | 12.5 | 0.04 | 150 |
| 48806120 | 6120 | 6 | 120 | 17.5 | 17.5 | 0.05 | 100 |
| 48806160 | 6160 | 6 | 160 | 22.5 | 22.5 | 0.07 | 90 |
| 48806200 | 6200 | 6 | 200 | 22.5 | 22.5 | 0.08 | 80 |
| 48806240 | 6240 | 6 | 240 | 22.5 | 22.5 | 0.09 | 80 |
| SS304 | Size | ØD (inch) | L (inch) | R (inch) | R1 (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 48806080 | 3" | 0.24 | 3.15 | 0.49 | 0.49 | 0.09 | 330 |
| 48806120 | 5" | 0.24 | 4.72 | 0.69 | 0.69 | 0.11 | 220 |
| 48806160 | 6" | 0.24 | 6.30 | 0.89 | 0.89 | 0.15 | 198 |
| 48806200 | 8" | 0.24 | 7.87 | 0.89 | 0.89 | 0.18 | 176 |
| 48806240 | 10" | 0.24 | 9.45 | 0.89 | 0.89 | 0.20 | 176 |
