Description
Technical Data:
Forging material : AISI304 - DIN 1.4301
Production : SFHA/03 - Hook - Forged
Surface treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD

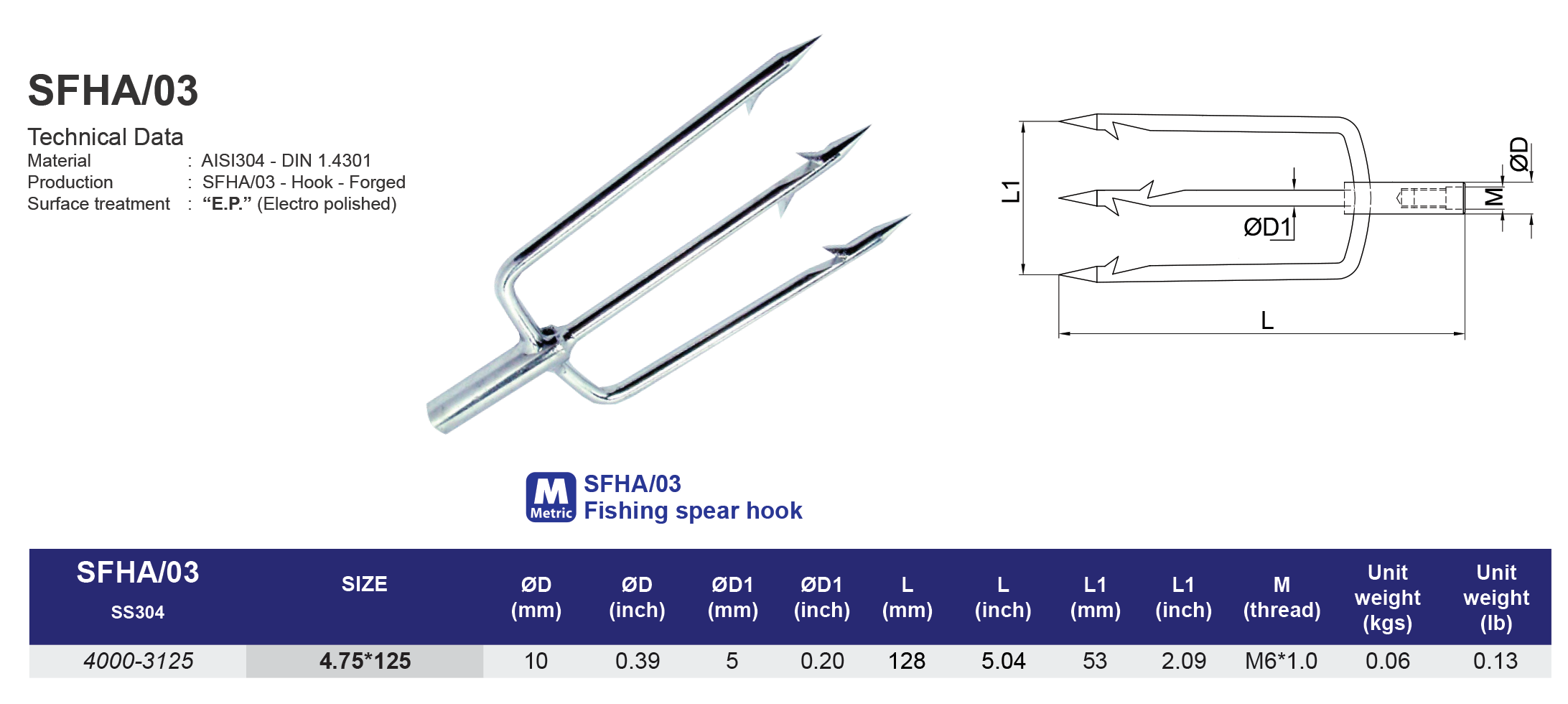

Model
SFHA_03

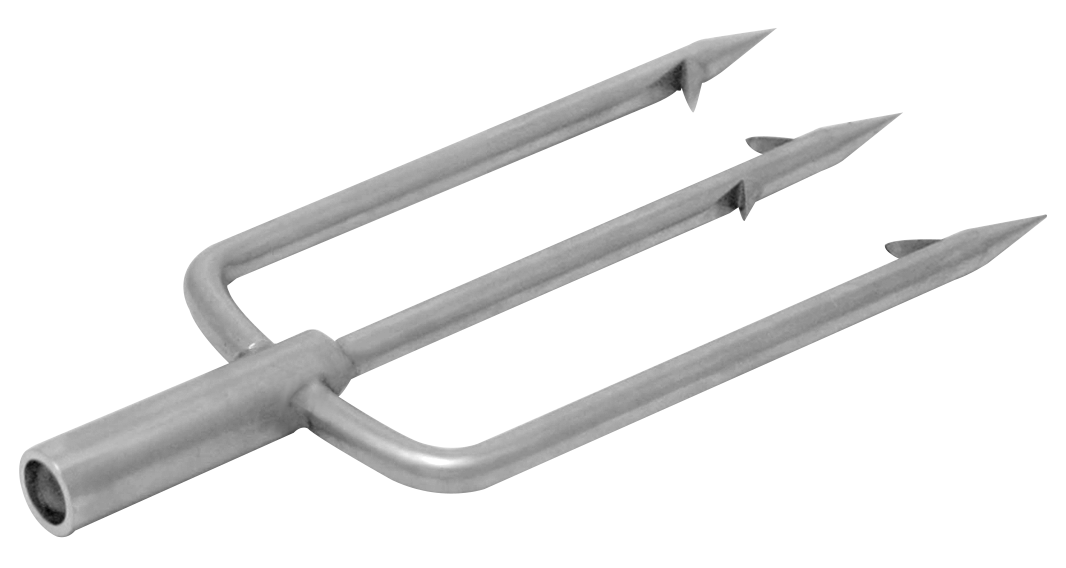

Fishing spear hook
304 ss
| SS304 | Size | øD(mm) | øD1(mm) | L(mm) | L1(mm) | M(thread) | Weight(kgs) |
|---|---|---|---|---|---|---|---|
| 40003125 | 4.75*125 | 10 | 5 | 128 | 53 | M6*1.0 | 0.06 |
| SS304 | Size | øD(inch) | øD1(inch) | L(inch) | L1(inch) | M(thread) | Weight(Ib) |
|---|---|---|---|---|---|---|---|
| 40003125 | 4.75*125 | 0.39 | 0.20 | 5.04 | 2.09 | M6*1.0 | 0.13 |
