Description
Technical Data:
Forging Material:
AISI 304 - DIN 1.4301
AISI 316 - DIN 1.4401
Production:
Machined
Surface Treatment:
Electro Polished / Passivated

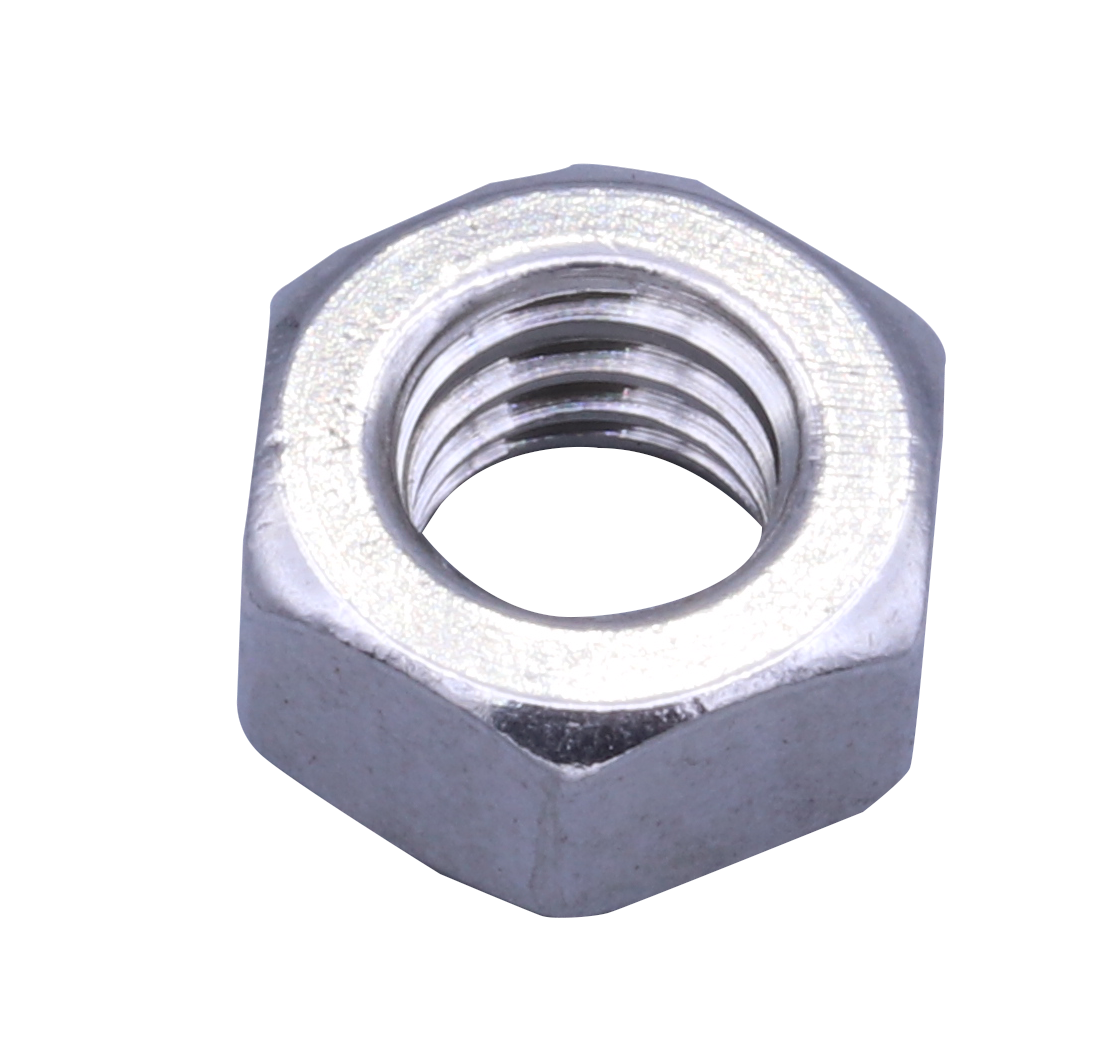

Model
SFNUT934_L
Left Hand Thread
316 ss

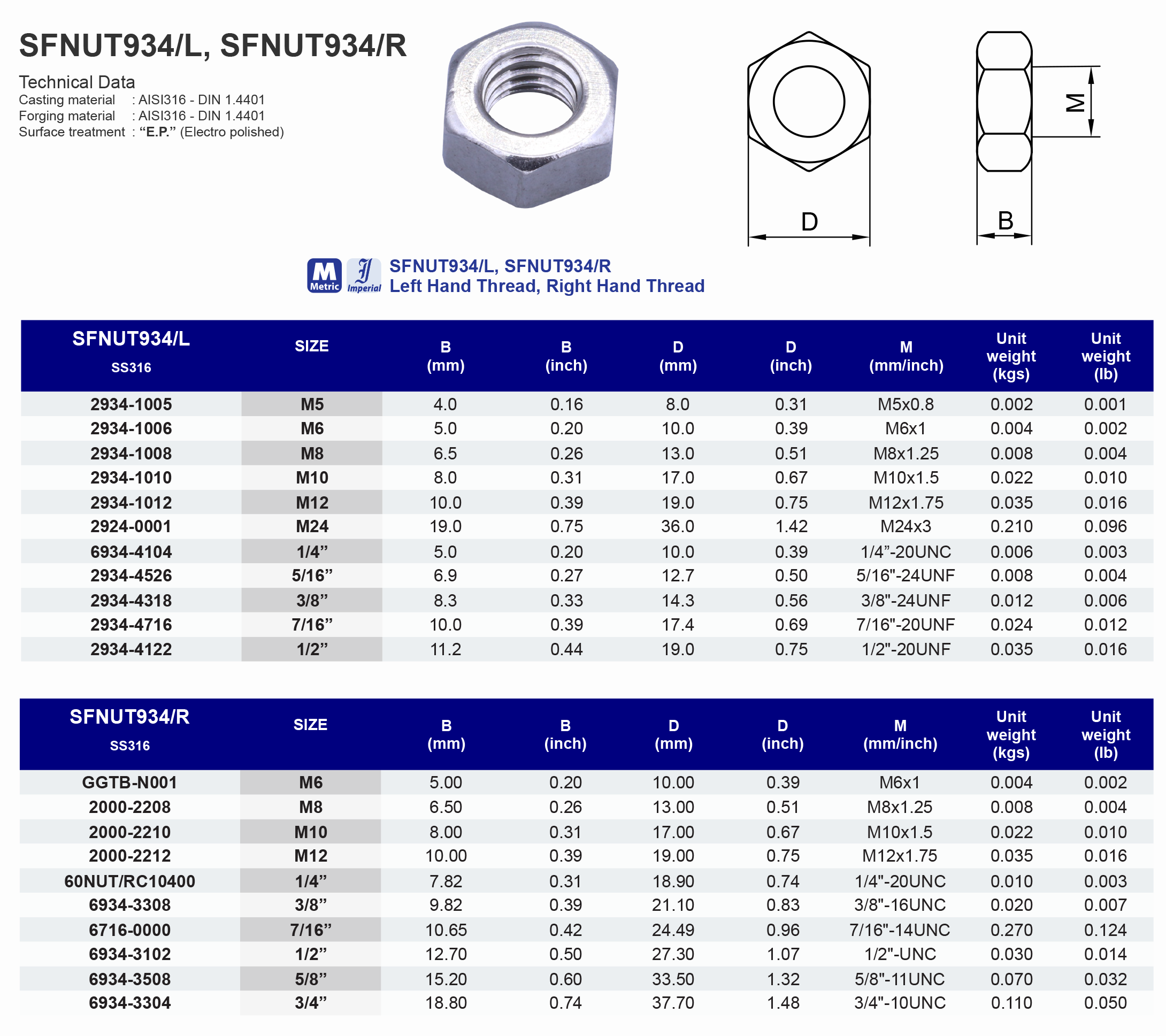

| SS316 | Size | B(mm) | D(mm) | M(mm/inch) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 2934-1005 | M5 | 4.0 | 8.0 | M5x0.8 | 0.002 |
| 2934-1006 | M6 | 5.0 | 10.0 | M6x1 | 0.004 |
| 2934-1008 | M8 | 6.5 | 13.0 | M8x1.25 | 0.008 |
| 2934-1010 | M10 | 8.0 | 17.0 | M10x1.5 | 0.022 |
| 2934-1012 | M12 | 10.0 | 19.0 | M12x1.75 | 0.035 |
| 2924-0001 | M24 | 19.0 | 36.0 | M24x3 | 0.210 |
| SS316 | Size | B(inch) | D(inch) | M(mm/inch) | Unit weight (Ib) |
|---|---|---|---|---|---|
| 6934-4104 | 1/4" | 0.20 | 0.39 | 1/4"-20UNC | 0.003 |
| 2934-4526 | 5/16" | 0.27 | 0.50 | 5/16"-24UNF | 0.004 |
| 2934-4318 | 3/8" | 0.33 | 0.56 | 3/8"-24UNF | 0.006 |
| 2934-4716 | 7/16" | 0.39 | 0.69 | 7/16"-20UNF | 0.012 |
| 2934-4122 | 1/2" | 0.44 | 0.75 | 1/2"-20UNF | 0.016 |
