Description
Technical Data:
Casting Material : AIS316-DIN 1.4408
Production : SPE/SINGLE/EP
Body - Cast
D-Ring - Bar
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

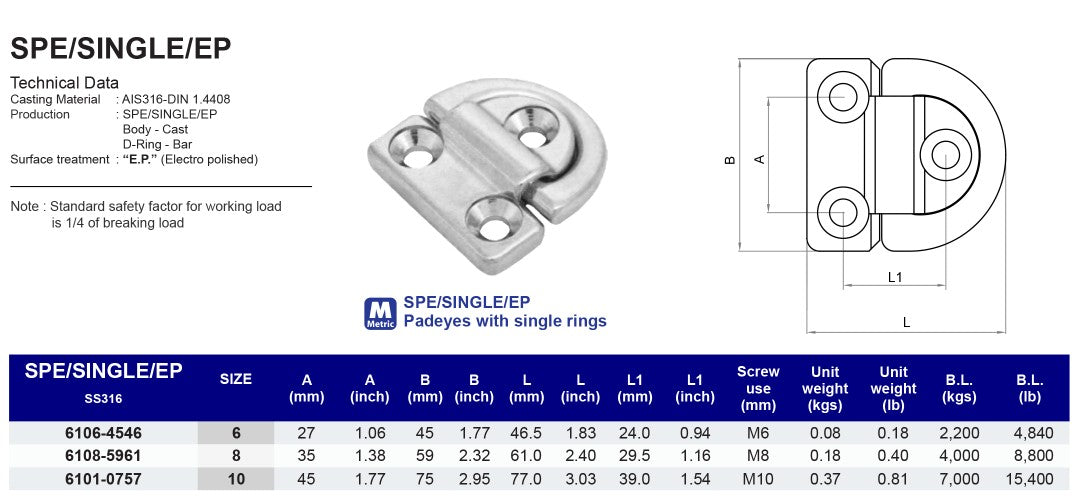

Model

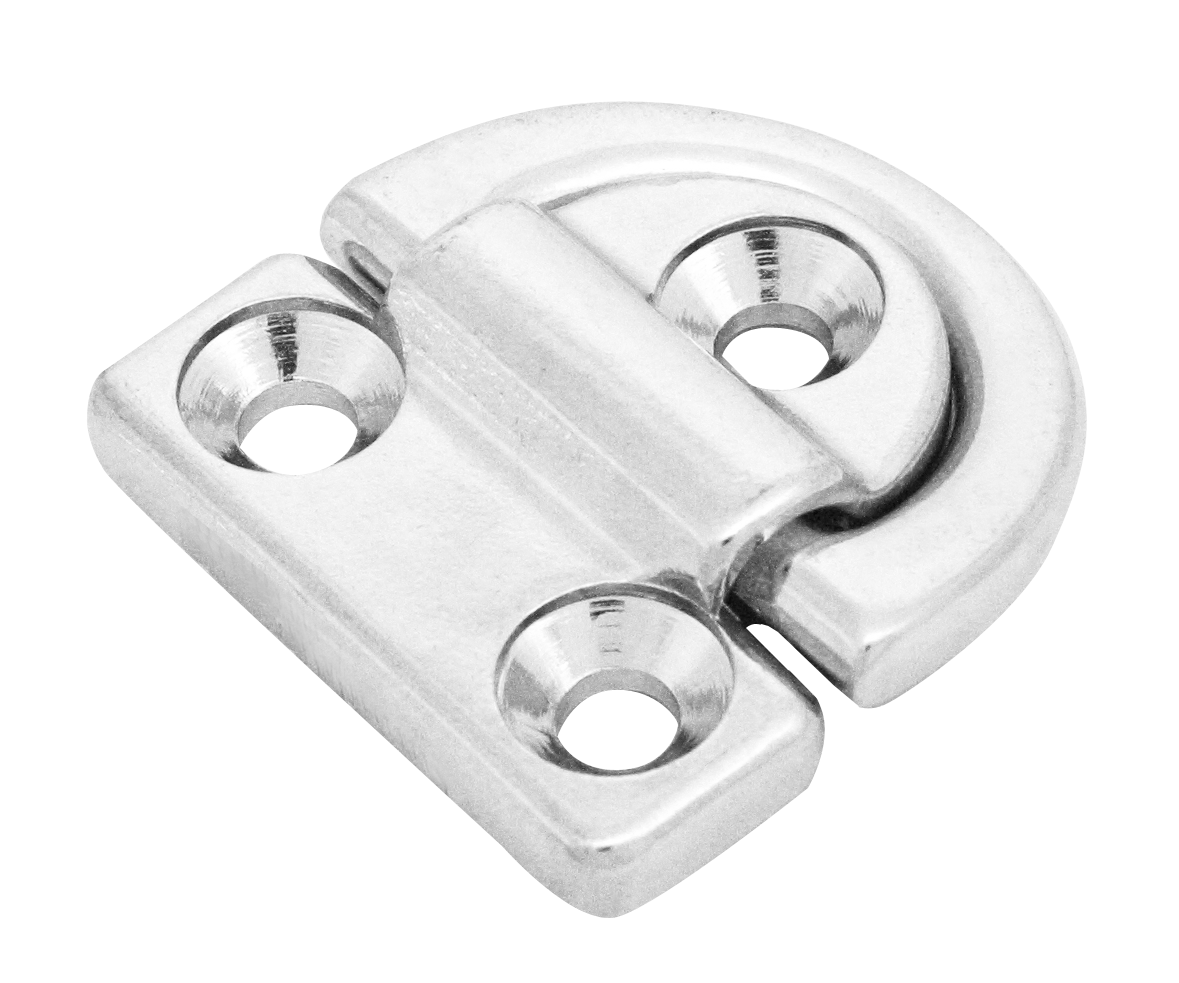

SPE/SINGLE/EP

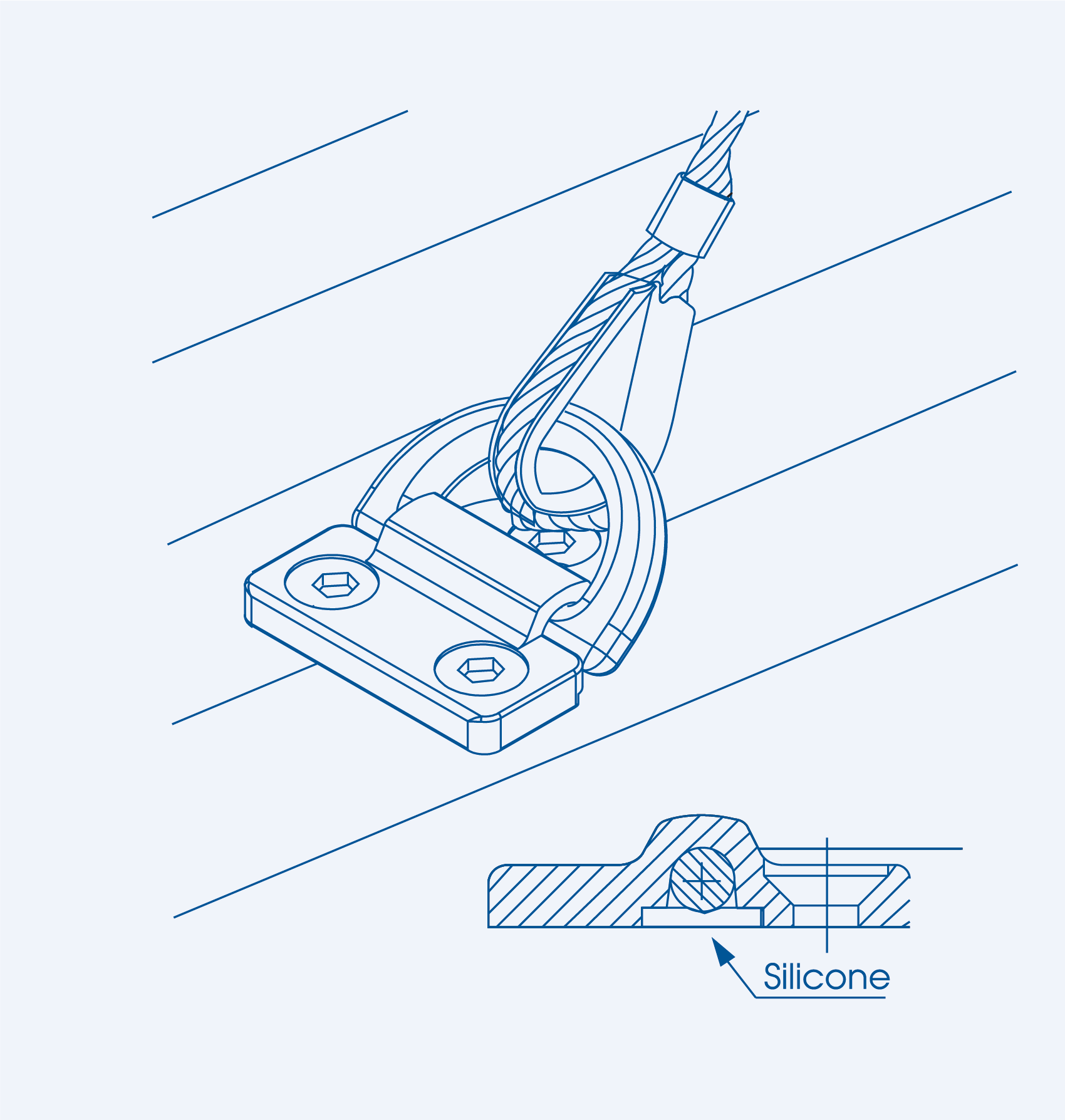

Padeyes with single rings
316 ss
![Kinzi 316 Kinzi 316](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/316-ss.png)
![SPE_SINGLE_EP SPE_SINGLE_EPdrawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/SPE_SINGLE_EP.png)
![SPE_SINGLE_EP image SPE_SINGLE_EP image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/SPE_SINGLE_EP_ImageV1.png)
SS316 | Size | A (mm) | B (mm) | L (mm) | L1 (mm) | Screw use (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|---|---|
61064546 | 6 | 27 | 45 | 46.5 | 24 | M6 | 0.08 | 2,200 |
61085961 | 8 | 35 | 59 | 61 | 29.5 | M8 | 0.18 | 4,000 |
61010757 | 10 | 45 | 75 | 77 | 39 | M10 | 0.37 | 7,000 |
SS316 | Size | A (inch) | B (inch) | L (inch) | L1 (inch) | Screw use (mm) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|---|---|
61064546 | 1/4" | 1.06 | 1.77 | 1.83 | 0.94 | M6 | 0.18 | 4,840 |
61085961 | 5/16" | 1.38 | 2.32 | 2.4 | 1.16 | M8 | 0.40 | 8,800 |
61010757 | 3/8" | 1.77 | 2.95 | 3.03 | 1.54 | M10 | 0.81 | 15,400 |
