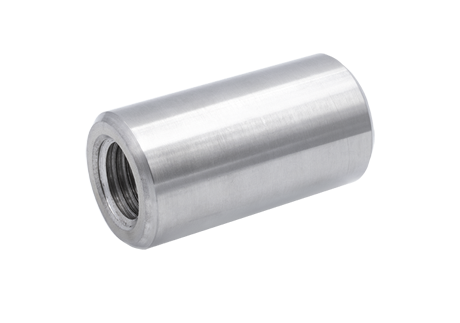

Name: SRA1 HTR 560 joiner
Brand: 316 ss
SKU: SRA10016
Availability: InStock

Roll over image to zoom in Click on image to zoom

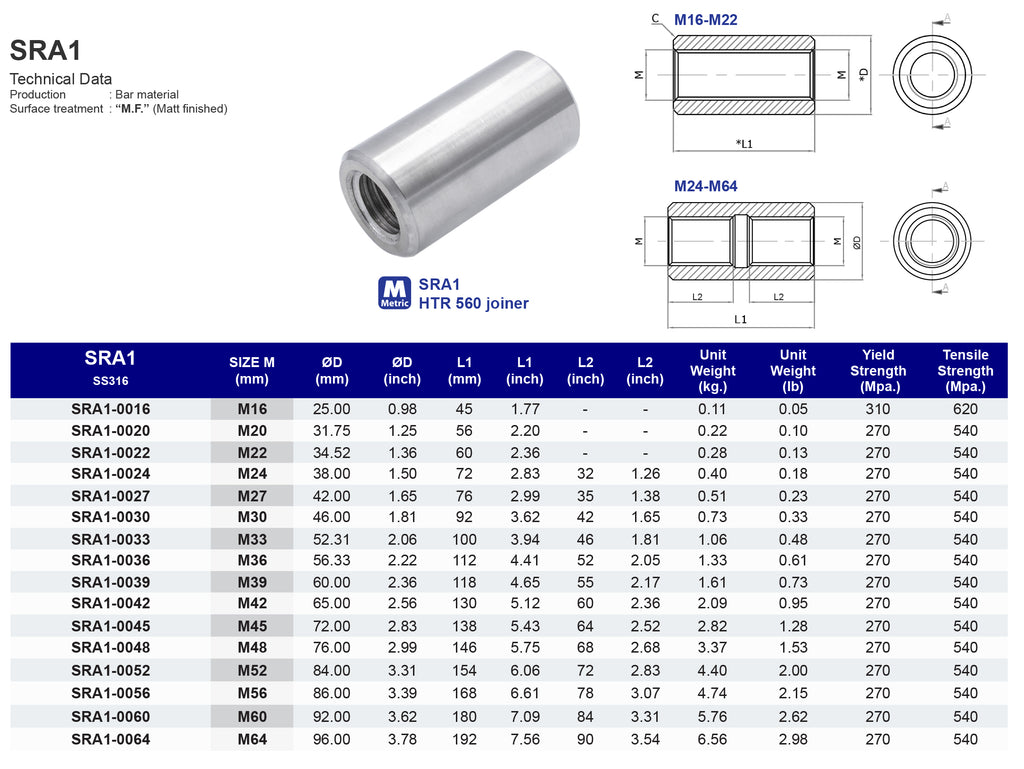

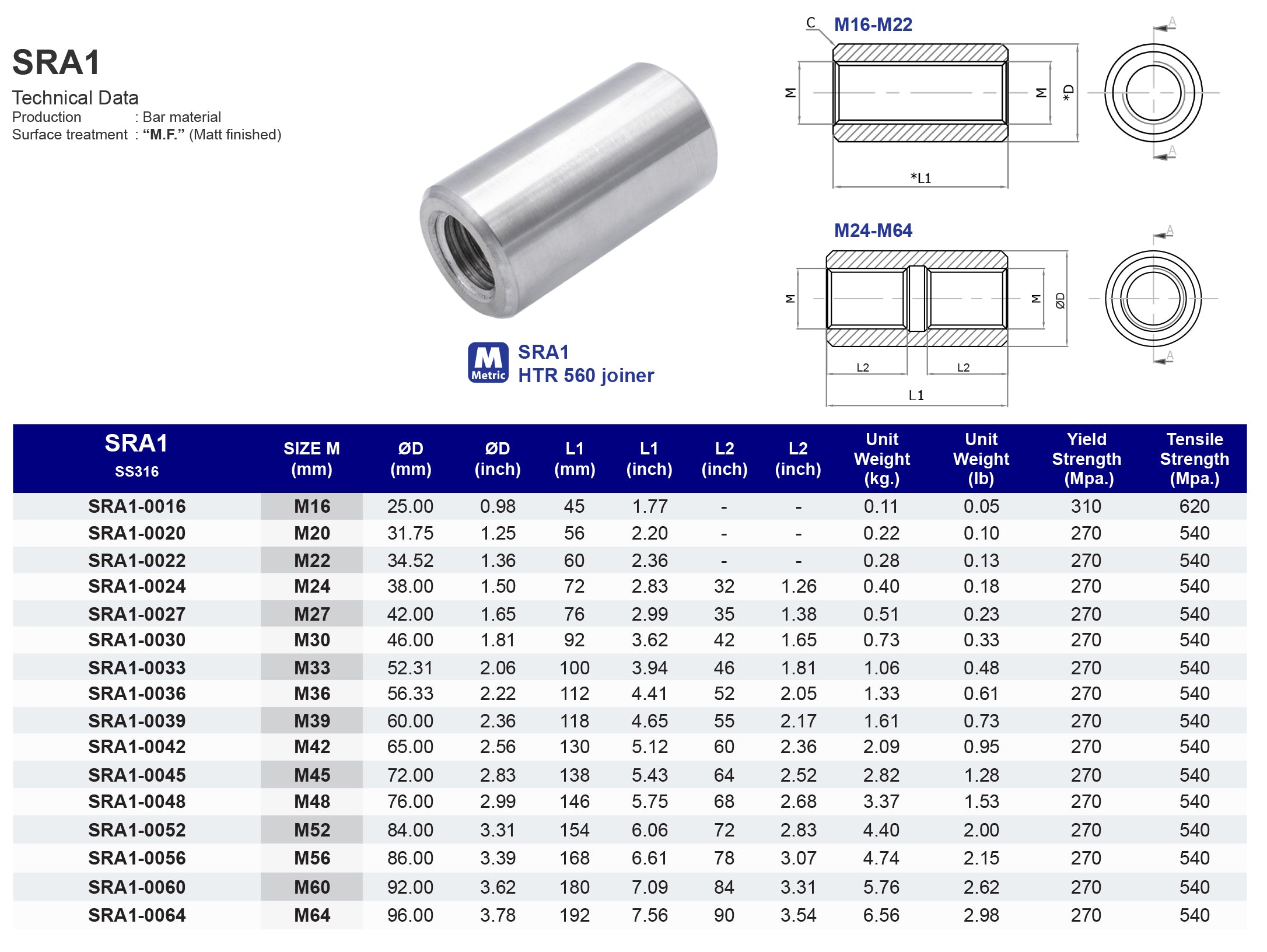

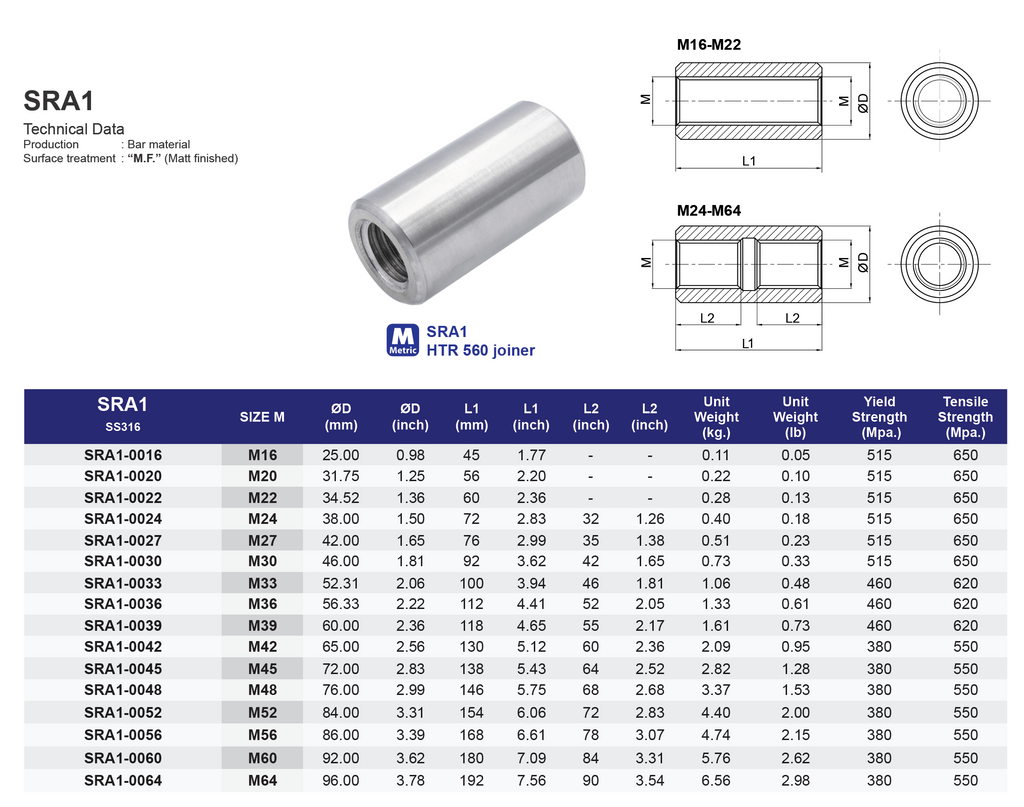

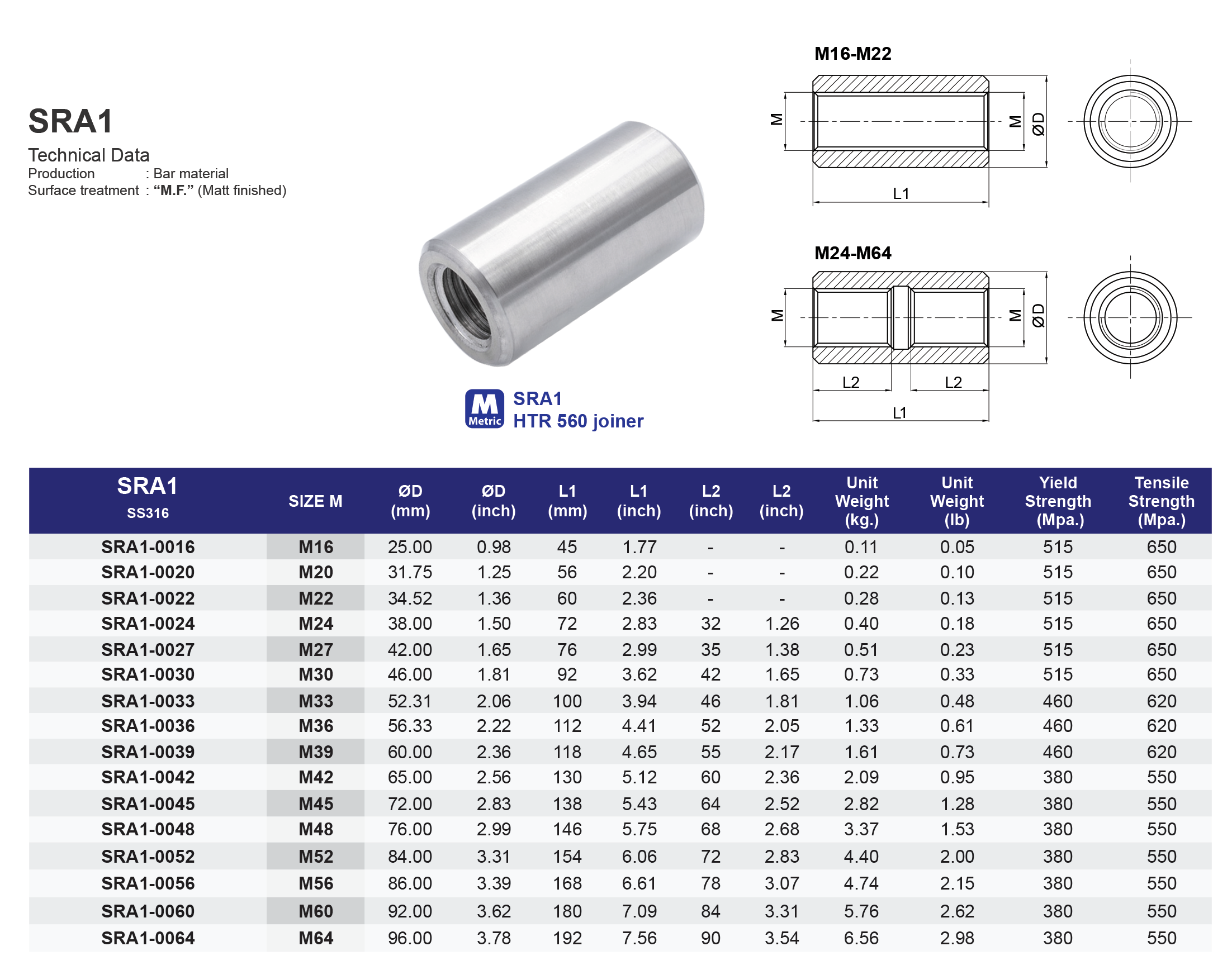

Technical Data:
Production : Bar material
Surface Treatment : "M.P." (Matte finished)

Model

SRA1

HTR 560 joiner
316 ss

SS316	SIZE M (mm)	ØD (mm)	L1 (mm)	L2 (mm)	Unit weight (kgs)	Yield Strength (Mpa.)	Tensile Strength (Mpa.)
SRA10016	M16	25.00	45	-	0.11	310	620
SRA10020	M20	31.75	56	-	0.22	270	540
SRA10022	M22	34.52	60	-	0.28	270	540
SRA10024	M24	38.00	72	32	0.40	270	540
SRA10027	M27	42.00	76	35	0.51	270	540
SRA10030	M30	46.00	92	42	0.73	270	540
SRA10033	M33	52.31	100	46	1.06	270	540
SRA10036	M36	56.33	112	52	1.33	270	540
SRA10039	M39	60.00	118	55	1.61	270	540
SRA10042	M42	65.00	130	60	2.09	270	540
SRA10045	M45	72.00	138	64	2.82	270	540
SRA10048	M48	76.00	146	68	3.37	270	540
SRA10052	M52	84.00	154	72	4.40	270	540
SRA10056	M56	86.00	168	78	4.74	270	540
SRA10060	M60	92.00	180	84	5.76	270	540
SRA10064	M64	96.00	192	90	6.56	270	540

SS316	SIZE M (mm)	ØD (inch)	L1 (inch)	L2 (inch)	Unit weight (lb)	Yield Strength (Mpa.)	Tensile Strength (Mpa.)
SRA10016	M16	0.98	1.77	-	0.05	310	620
SRA10020	M20	1.25	2.2	-	0.10	270	540
SRA10022	M22	1.36	2.36	-	0.13	270	540
SRA10024	M24	1.5	2.83	1.26	0.18	270	540
SRA10027	M27	1.65	2.99	1.38	0.23	270	540
SRA10030	M30	1.81	3.62	1.65	0.33	270	540
SRA10033	M33	2.06	3.94	1.81	0.48	270	540
SRA10036	M36	2.22	4.41	2.05	0.61	270	540
SRA10039	M39	2.36	4.65	2.17	0.73	270	540
SRA10042	M42	2.56	5.12	2.36	0.95	270	540
SRA10045	M45	2.83	5.43	2.52	1.28	270	540
SRA10048	M48	2.99	5.75	2.68	1.53	270	540
SRA10052	M52	3.31	6.06	2.83	2.00	270	540
SRA10056	M56	3.39	6.61	3.07	2.15	270	540
SRA10060	M60	3.62	7.09	3.31	2.62	270	540
SRA10064	M64	3.78	7.56	3.54	2.98	270	540

SRA1 HTR 560 joiner
