Description

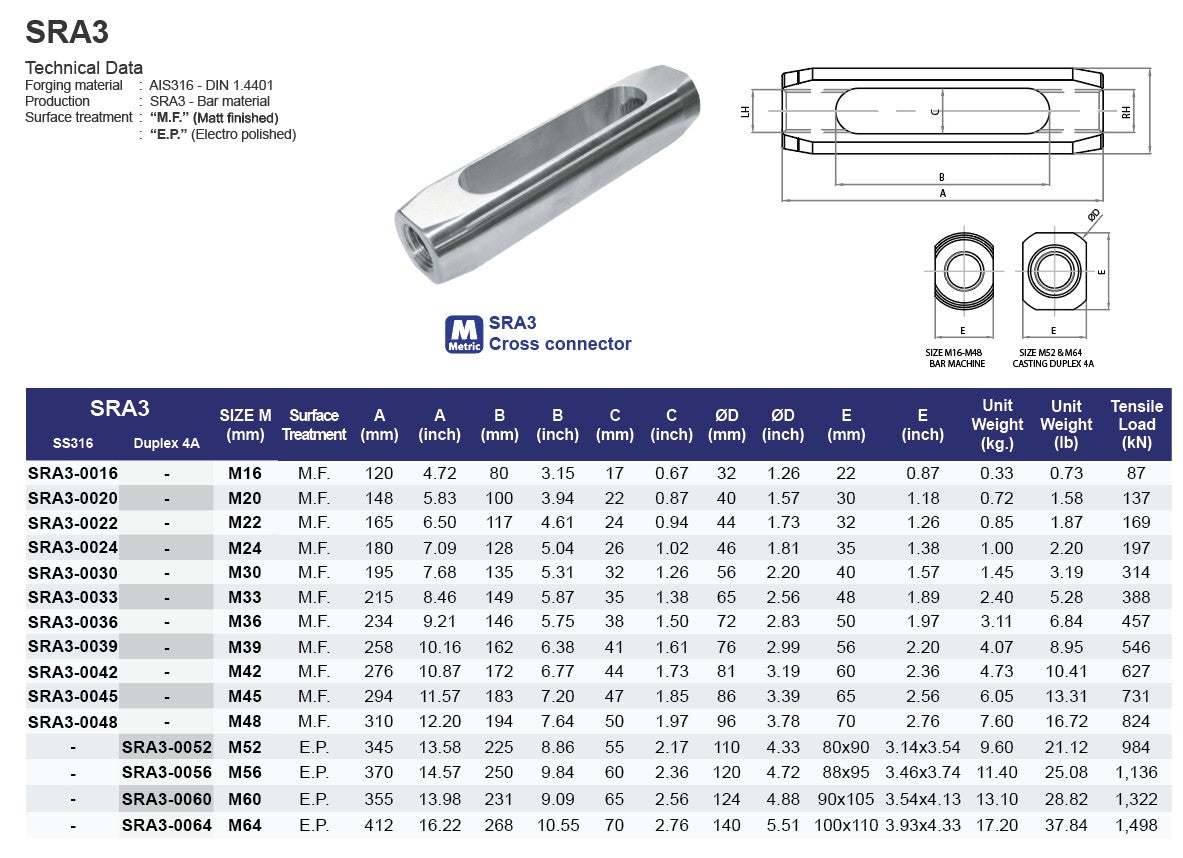

Technical Data:
Forging Material : AISI316 , EN 1.4401
Production: Bar material
Surface Treatment: "M.F." (Matte finished) “E.P.” (Electro polished)
Model
SRA3

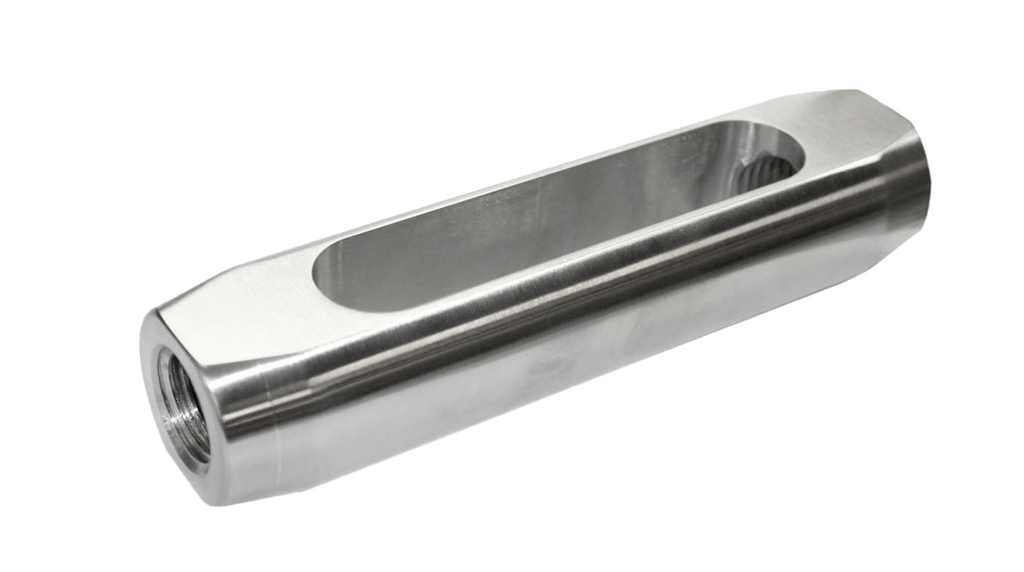

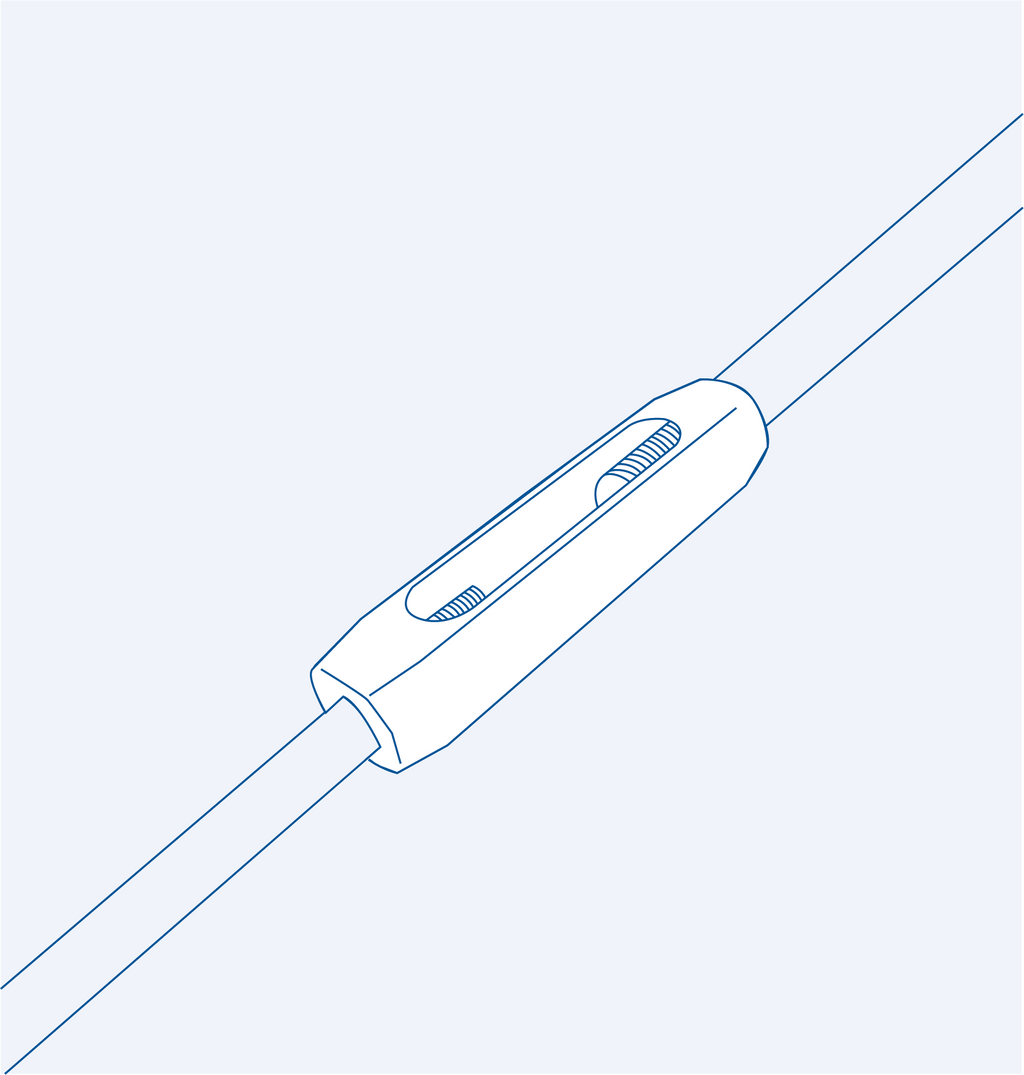

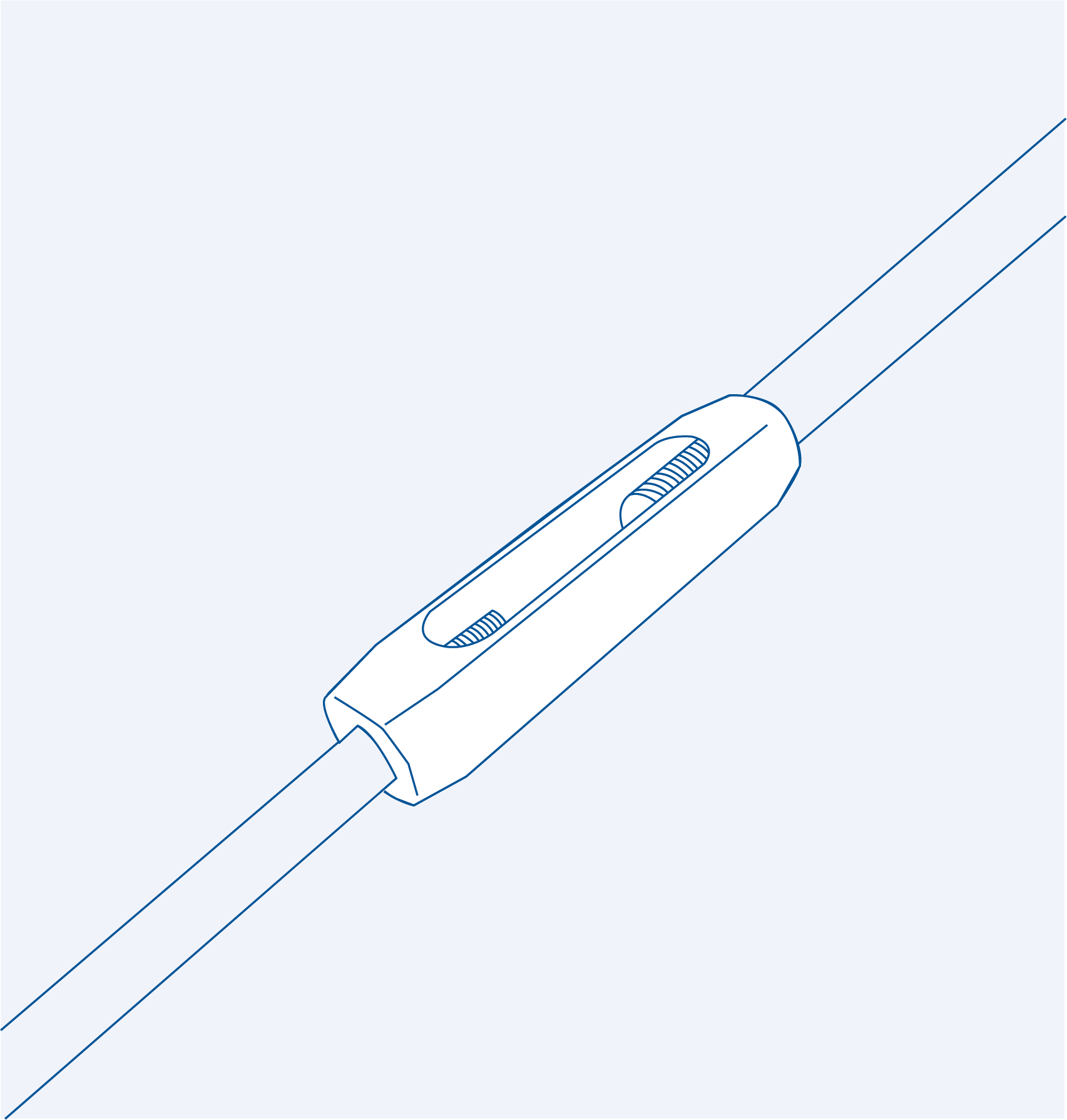

Cross connector
316 ss
| SS316 | SIZE M (mm) | Surface Treatment | A (mm) | B (mm) | C (mm) | ØD (mm) | E (mm) | Unit weight (kgs) | Tensile Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| SRA3-0016 | M16 | M.F. | 120 | 80 | 17 | 32 | 22 | 0.33 | 87 |
| SRA3-0020 | M20 | M.F. | 148 | 100 | 22 | 40 | 30 | 0.72 | 137 |
| SRA3-0022 | M22 | M.F. | 165 | 117 | 24 | 44 | 32 | 0.85 | 169 |
| SRA3-0024 | M24 | M.F. | 180 | 128 | 26 | 46 | 35 | 1.00 | 197 |
| SRA3-0030 | M30 | M.F. | 195 | 135 | 32 | 56 | 40 | 1.45 | 314 |
| SRA3-0033 | M33 | M.F. | 215 | 149 | 35 | 65 | 48 | 2.40 | 388 |
| SRA3-0036 | M36 | M.F. | 234 | 146 | 38 | 72 | 50 | 3.11 | 457 |
| SRA3-0039 | M39 | M.F. | 258 | 162 | 41 | 76 | 56 | 4.07 | 546 |
| SRA3-0042 | M42 | M.F. | 276 | 172 | 44 | 81 | 60 | 4.73 | 627 |
| SRA3-0045 | M45 | M.F. | 294 | 183 | 47 | 86 | 65 | 6.05 | 731 |
| SRA3-0048 | M48 | M.F. | 310 | 194 | 50 | 96 | 70 | 7.60 | 824 |
| SS316 | SIZE M (mm) | Surface Treatment | A (inch) | B (inch) | C (inch) | ØD (inch) | E (inch) | Unit weight (lb) | Tensile Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| SRA3-0016 | M16 | M.F. | 4.72 | 3.15 | 0.67 | 1.26 | 0.87 | 0.73 | 87 |
| SRA3-0020 | M20 | M.F. | 5.83 | 3.94 | 0.87 | 1.57 | 1.18 | 1.58 | 137 |
| SRA3-0022 | M22 | M.F. | 6.50 | 4.61 | 0.94 | 1.73 | 1.26 | 1.87 | 169 |
| SRA3-0024 | M24 | M.F. | 7.09 | 5.04 | 1.02 | 1.81 | 1.38 | 2.20 | 197 |
| SRA3-0030 | M30 | M.F. | 7.68 | 5.31 | 1.26 | 2.2 | 1.57 | 3.19 | 314 |
| SRA3-0033 | M33 | M.F. | 8.46 | 5.87 | 1.38 | 2.56 | 1.89 | 5.28 | 388 |
| SRA3-0036 | M36 | M.F. | 9.21 | 5.75 | 1.5 | 2.83 | 1.97 | 6.84 | 457 |
| SRA3-0039 | M39 | M.F. | 10.16 | 6.38 | 1.61 | 2.99 | 2.20 | 8.95 | 546 |
| SRA3-0042 | M42 | M.F. | 10.87 | 6.77 | 1.73 | 3.19 | 2.36 | 10.41 | 627 |
| SRA3-0045 | M45 | M.F. | 11.57 | 7.2 | 1.85 | 3.39 | 2.56 | 13.31 | 731 |
| SRA3-0048 | M48 | M.F. | 12.2 | 7.64 | 1.97 | 3.78 | 2.76 | 16.72 | 824 |
