Description

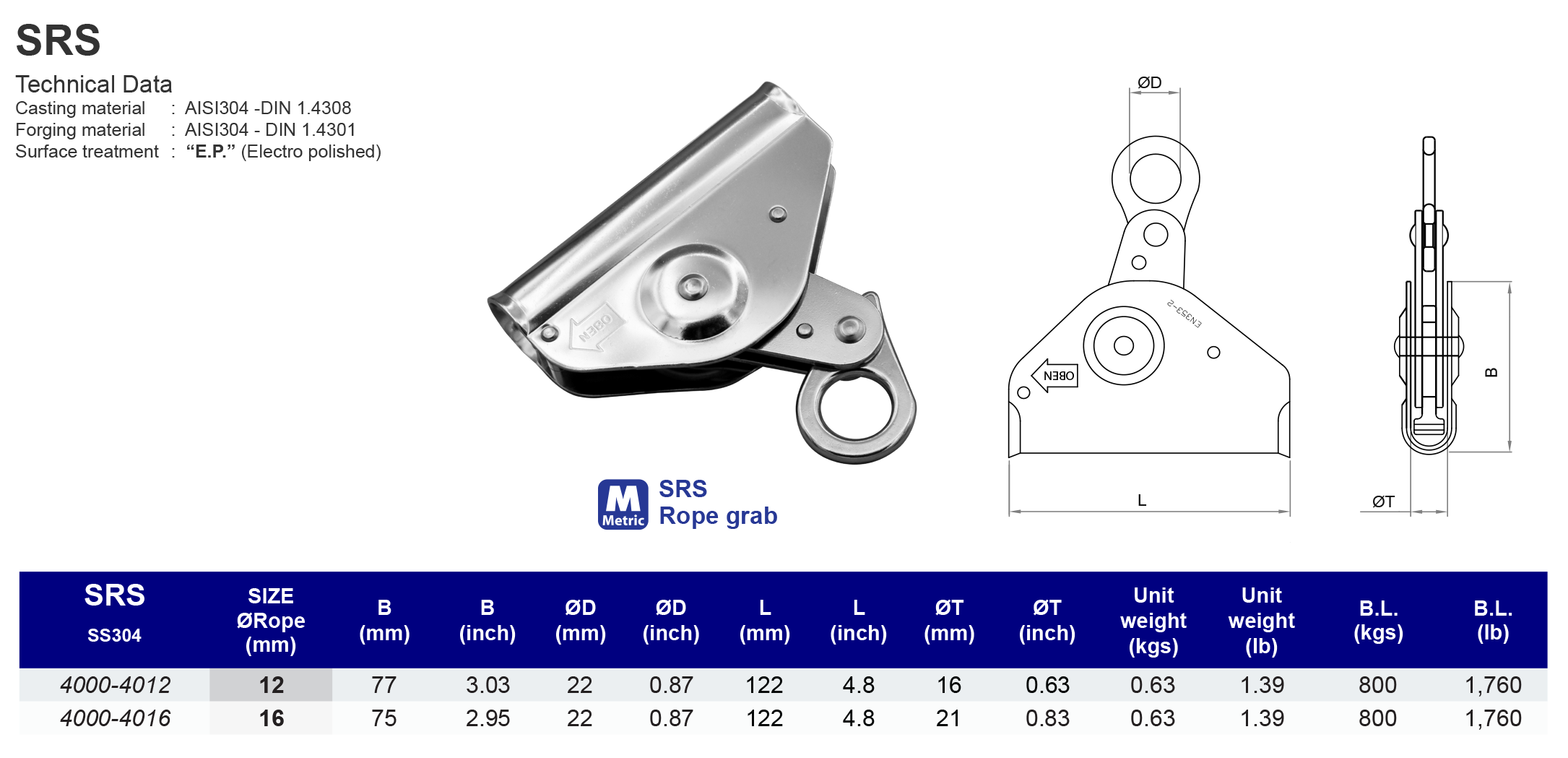

Technical Data:
Casting material : AISI304 -DIN 1.4308
Forging material : AISI304 - DIN 1.4301
Surface treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD
Model
SRS

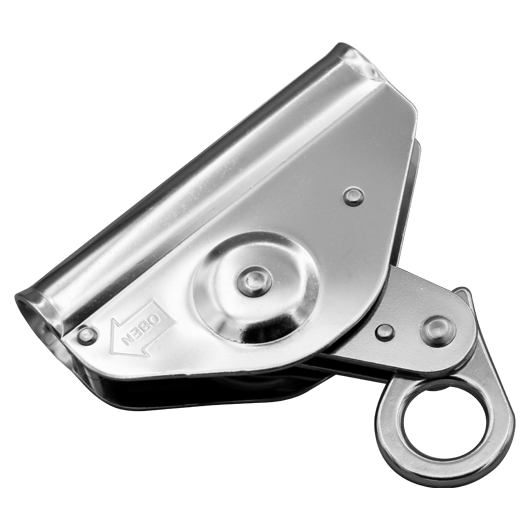

Rope grab
304 ss
| SS304 | SIZE ØRope (mm) | B (mm) | ØD (mm) | L (mm) | ØT (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 40004012 | 12 | 77 | 22 | 122 | 16 | 0.63 | 800 |
| 40004016 | 16 | 75 | 22 | 122 | 21 | 0.63 | 800 |
| SS304 | SIZE ØRope (mm) | B (inch) | ØD (inch) | L (inch) | ØT (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 40004012 | 0.47 | 3.03 | 0.87 | 4.8 | 0.63 | 1.39 | 1,760 |
| 40004016 | 0.63 | 2.95 | 0.87 | 4.8 | 0.83 | 1.39 | 1,760 |
